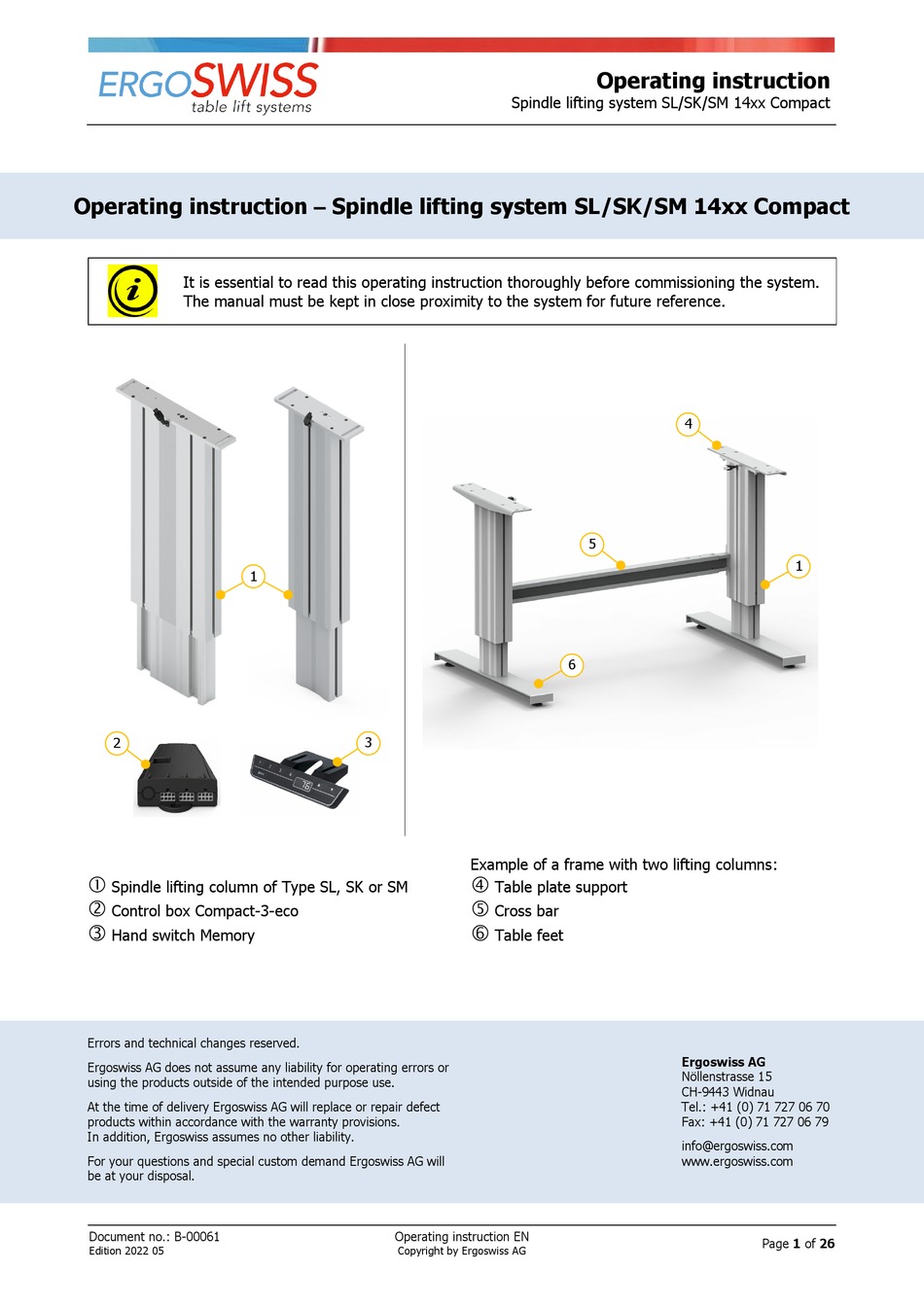

Operating instruction – Spindle lifting system SL/SK/SM 14xx Compact
It is essential to read this operating instruction thoroughly before commissioning the system.
The manual must be kept in close proximity to the system for future reference.
2
Spindle lifting column of Type SL, SK or SM
Control box Compact-3-eco
Hand switch Memory
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operating errors or
using the products outside of the intended purpose use.
At the time of delivery Ergoswiss AG will replace or repair defect
products within accordance with the warranty provisions.
In addition, Ergoswiss assumes no other liability.
For your questions and special custom demand Ergoswiss AG will
be at your disposal.
Document no.: B-00061
Edition 2022 05
1
3
Operating instruction EN
Copyright by Ergoswiss AG
Operating instruction
Spindle lifting system SL/SK/SM 14xx Compact
5
6

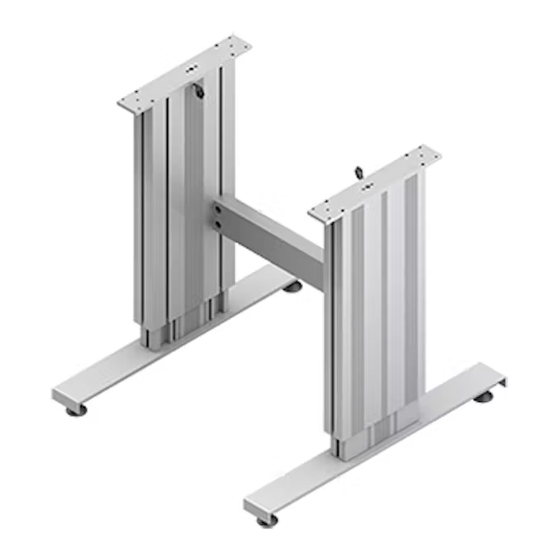

Example of a frame with two lifting columns:
Table plate support
Cross bar
Table feet
4
1
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
Page 1 of 26
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ergoswiss SL 14 Compact Series
Summary of Contents for Ergoswiss SL 14 Compact Series
- Page 1 Nöllenstrasse 15 using the products outside of the intended purpose use. CH-9443 Widnau At the time of delivery Ergoswiss AG will replace or repair defect Tel.: +41 (0) 71 727 06 70 products within accordance with the warranty provisions. Fax: +41 (0) 71 727 06 79 In addition, Ergoswiss assumes no other liability.
- Page 2 The declaration of incorporation is only valid for the Ergoswiss lifting system and not for the overall system created by the further-user.
-
Page 3: Table Of Contents
Electrical and Electronic Equipment Act .................. 23 Error codes on the display ..................... 24 Click codes ........................... 25 Trouble-shooting ........................25 10 Declaration of Incorporation ....................26 Document no.: B-00061 Operating instruction EN Page 3 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 4: Safety Requirements
NOTE Indicates general information, useful user tips and work recommendations, which have no im- pact on the health and safety of staff. Document no.: B-00061 Operating instruction EN Page 4 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 5: System Description
2 System description 2.1 General The basic functionality of a spindle lifting system SL/SK/SM by Ergoswiss AG is the lifting and lowering of work surfaces, machine parts, profile systems, etc. An operative spindle lifting System SL/SK/SM consists of a minimum of following components: →... -
Page 6: Target Group And Prior Knowledge
(e.g. through constructive measures or through instructions in the oper- ating instructions and/or through safety indication on the system). In the event of improper use, the liability of Ergoswiss AG and the general operating permit for the lifting system will expire. 2.3 Target group and prior knowledge Before installing and operating the lifting system, this operating instruction must be read and understood. -
Page 7: Performance Characteristics
2/18 stat. = during standstill; dyn. = during stroke movement Duty Cycle 2/18; operating max. 2 min, pause 18 min Document no.: B-00061 Operating instruction EN Page 7 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 8: Control Box Compact-3-Eco
Hall sensor supply voltage 5 VDC +/- 10 %; 250 mA Protection class (DIN EN 60529) IP 20 Performance Level (DIN EN 13849-1) PL b Document no.: B-00061 Operating instruction EN Page 8 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 9: Hand Switch Memory
High pulse / impact forces due to the discontinuation of loads are not allowed. (e.g. discontinuation of loads in feed with crane or forklift) Document no.: B-00061 Operating instruction EN Page 9 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 10: Mounting Instructions
Mounting on T-slot (Cross bar) Outer profile with T-slots Mounting at bottom Inner profile 4x Screw M6x20 self-tapping (included in scope of delivery) Document no.: B-00061 Operating instruction EN Page 10 of 26 Edition 2022 05 Copyright by Ergoswiss AG... - Page 11 Torque max. 6 Nm (0.6”) Screw-in depth mind. 15 mm 4x Screw M6x20 self-tapping included in the scope of delivery (drawing in mm) Document no.: B-00061 Operating instruction EN Page 11 of 26 Edition 2022 05 Copyright by Ergoswiss AG...
-
Page 12: Montage Instructions Control Box
3 extension cables. They have a length of 1’000 mm each. (39.4’’) 124.00071: Extension cable Hand switch Compact 1m Document no.: B-00061 Operating instruction EN Page 12 of 26 Edition 2022 05 Copyright by Ergoswiss AG... - Page 13 → Is the entire lifting system assembled according to the assembly instructions? 4. Connect power cable to the mains. (Click sound ready for initial operation) Document no.: B-00061 Operating instruction EN Page 13 of 26 Edition 2022 05 Copyright by Ergoswiss AG...
-
Page 14: Montage Instructions Hand Switch
The control panel must overhang below the work sur- face! 2. Fasten the hand switch using the mounting screws. Be careful not to drill through the table top! Document no.: B-00061 Operating instruction EN Page 14 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 15: Initial Operation
The maximum continuous operating time is 2 minutes. Afterwards a pause of at least 18 minutes needs to be observed before the system can be operated again. Document no.: B-00061 Operating instruction EN Page 15 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 16: Operation With Hand Switch Type Memory
After saving there is a double click sound, and after approx. 2 seconds the current height is displayed again. Example: To approach a stored memory position: Keep one of the buttons pressed until the desired working height is reached. Document no.: B-00061 Operating instruction EN Page 16 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 17: Limit The Stroke Length (Container-Stop/Shelf-Stop)
(minus) can be used to set the current height. While doing so, the system does not move! 4. With the correctly set value the new height is saved by pressing (Save). Document no.: B-00061 Operating instruction EN Page 17 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 18: Chaning The Display Unit Of Measurement (Mm/Inch) - Reset "S 5
4. Press the button (Save). The display is blinking «068» (US – 110 V version «027») Perform the initial operation according to chapter 4. Document no.: B-00061 Operating instruction EN Page 18 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 19: Reference Drive - Referencing The End Positions - "Long Key Down
This function is used for easy height adjustment of the system. Press the button Keep the button pressed until the desired working height is reached. Document no.: B-00061 Operating instruction EN Page 19 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 20: Synchronous Operation Of 2, 3 Or 4 Control Boxes
→ The loose ends do not have to be connected. However, connecting the loose ends will not have any influence on the system. Document no.: B-00061 Operating instruction EN Page 20 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 21: Commissioning The Synchronized Systems
Then display blinks «E93» → → Perform a Factory reset «S 0» according to chapter 5.6 (all controls are reset to factory settings) Document no.: B-00061 Operating instruction EN Page 21 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 22: Safety Strip - Squeezing Protection
Spindle lifting system SL/SK/SM 14xx Compact 8 Safety strip – Squeezing protection ATTENTION With lifting systems of Ergoswiss AG it is important to make sure that no objects or people are trapped during the lifting movement. Danger of squeezing during lifting movement! Attach the safety strip to an assumed squeeze zone. -
Page 23: Maintenance And Disposal
2012/19/EU), since the lifting system – in accordance with the intended purpose use – is not intended for end-users (Business-to-Customer) but is designed for industrial applications (Business-to-Business). Document no.: B-00061 Operating instruction EN Page 23 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 24: Error Codes On The Display
Reconnect the power cable. set mode with a flashing display of Perform a Factory reset «S 0». «000». Document no.: B-00061 Operating instruction EN Page 24 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 25: Click Codes
Drive only move to one direction Hand switch defective Replace the manual control switch Drive only moves downwards System overload Remove weight from the system Document no.: B-00061 Operating instruction EN Page 25 of 26 Edition 2022 05 Copyright by Ergoswiss AG... -
Page 26: Declaration Of Incorporation
Operating instruction Spindle lifting system SL/SK/SM 14xx Compact 10 Declaration of Incorporation Document no.: B-00061 Operating instruction EN Page 26 of 26 Edition 2022 05 Copyright by Ergoswiss AG...
