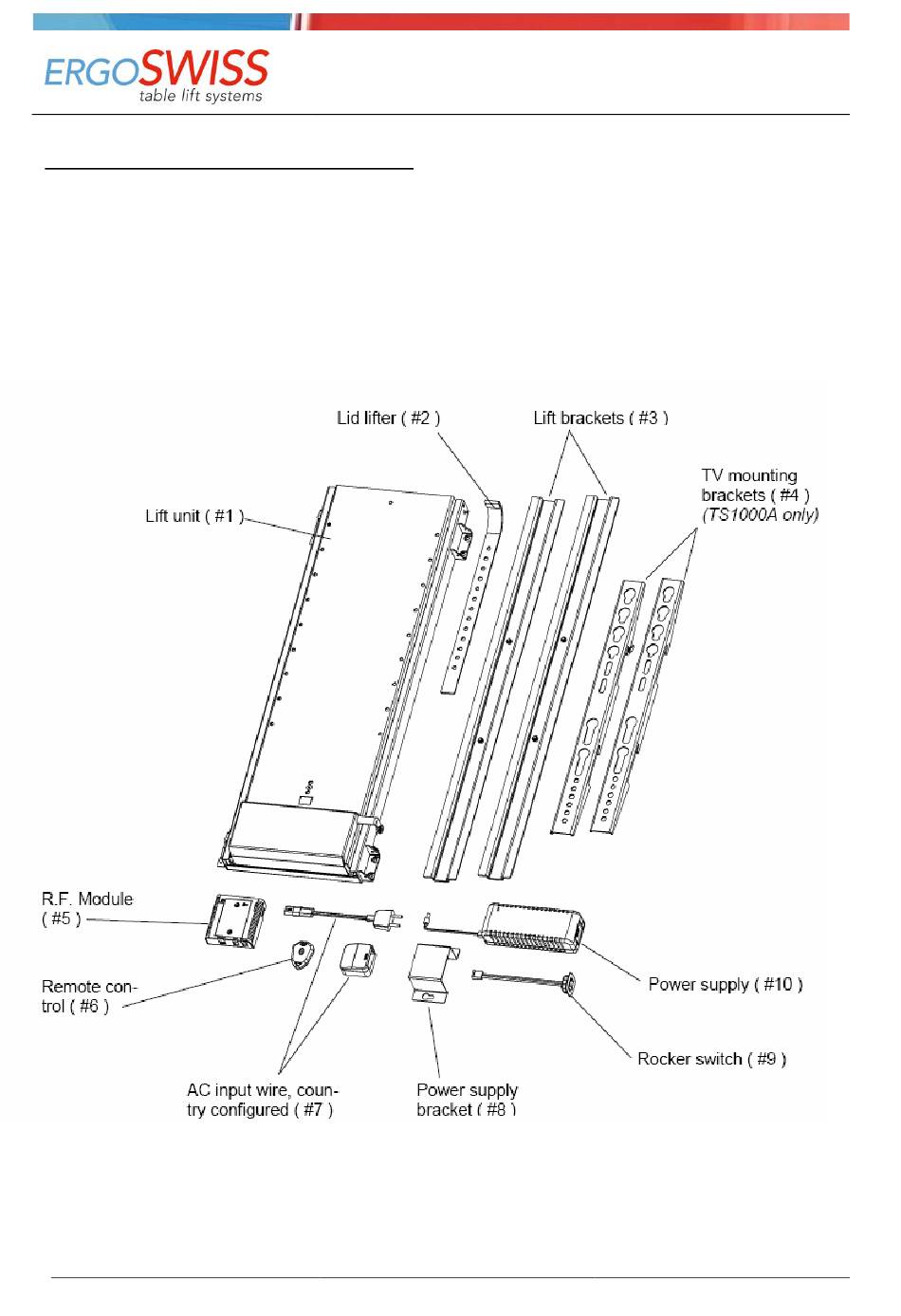

PARTS INCLUDED WITH YOUR SCREENLIFT

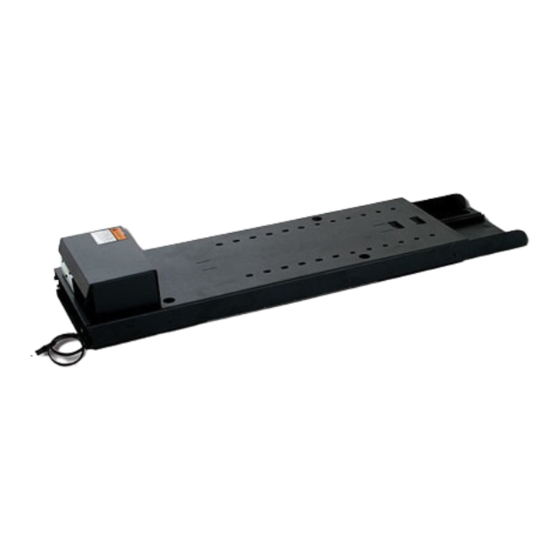

# 1 Screenlift ST 1000A / ST 700A
# 2 Lid lifter
# 3 Lift brackets
# 4 TV mounting brackets ( ST 1000A only)
# 5 R.F. Module
Art. Nr. 198.00156
Edition: 11.2016
ASSEMBLY INSTRUCTIONS
for Screenlift ST 700A and 1000A
# 6 Remote control
# 7 AC input wire
# 8 Power supply bracket
# 9 Rocker switch
# 10 Power supply
Page 1/8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ergoswiss ST 700A
Summary of Contents for Ergoswiss ST 700A
- Page 1 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A PARTS INCLUDED WITH YOUR SCREENLIFT # 1 Screenlift ST 1000A / ST 700A # 6 Remote control # 2 Lid lifter # 7 AC input wire # 3 Lift brackets # 8 Power supply bracket...
- Page 2 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A CAUTION Before you begin any of the Installation procedures, read and follow the warnings and safety instructions. Only person that read these instructions are allowed to operate the Screen lift. SAFETY INSTRUCTIONS Use the following safety guidelines to help protect your lift from potential damage and to ensure your own personal safety.
- Page 3 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A FUNCTION CONTROL Remove all contents from packaging and compare with the listed parts. Test the function of the Screen lift as follows: (refer to the sketch on page 1): Connect the cable of the Screen lift (# 2) to the control box (# 3)
- Page 4 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A MAIN MEASURES, ST 700A Art. Nr. 198.00156 Page 4/8 Edition: 11.2016...
- Page 5 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A ASSEMBLY OF THE SCREENLIFT Place the Screen lift (# 1) vertically (use a level) on the back panel of the cabinet in a location that will allow full up and down movement of the TV. Use the intended fixing hole on the sides of the Screen lift.
- Page 6 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A USER INSTRUCION, RF REMOTE SYSTEM INSTALLATION Connect the power supply and the motor unit to the remote receiver. Two different plug sizes make this connection only possible to make it in the right way After having connected the plugs, the blue light will be light.
- Page 7 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A OPERATED BY ROCKER SWITCH By pressing the switch upside the Screenlift will drive up By pressing the switch downwards the Screenlift will drive down The button has to be pressed during the whole lifting or lowering process due of security reasons. By...
- Page 8 ASSEMBLY INSTRUCTIONS for Screenlift ST 700A and 1000A Adjusting the top stop The top stop can be adjusted to any preferred height, e.g. if you do not want the lift to go all the way out of the cabinet. Use an allen key to loosen the screw of the wire glider.
