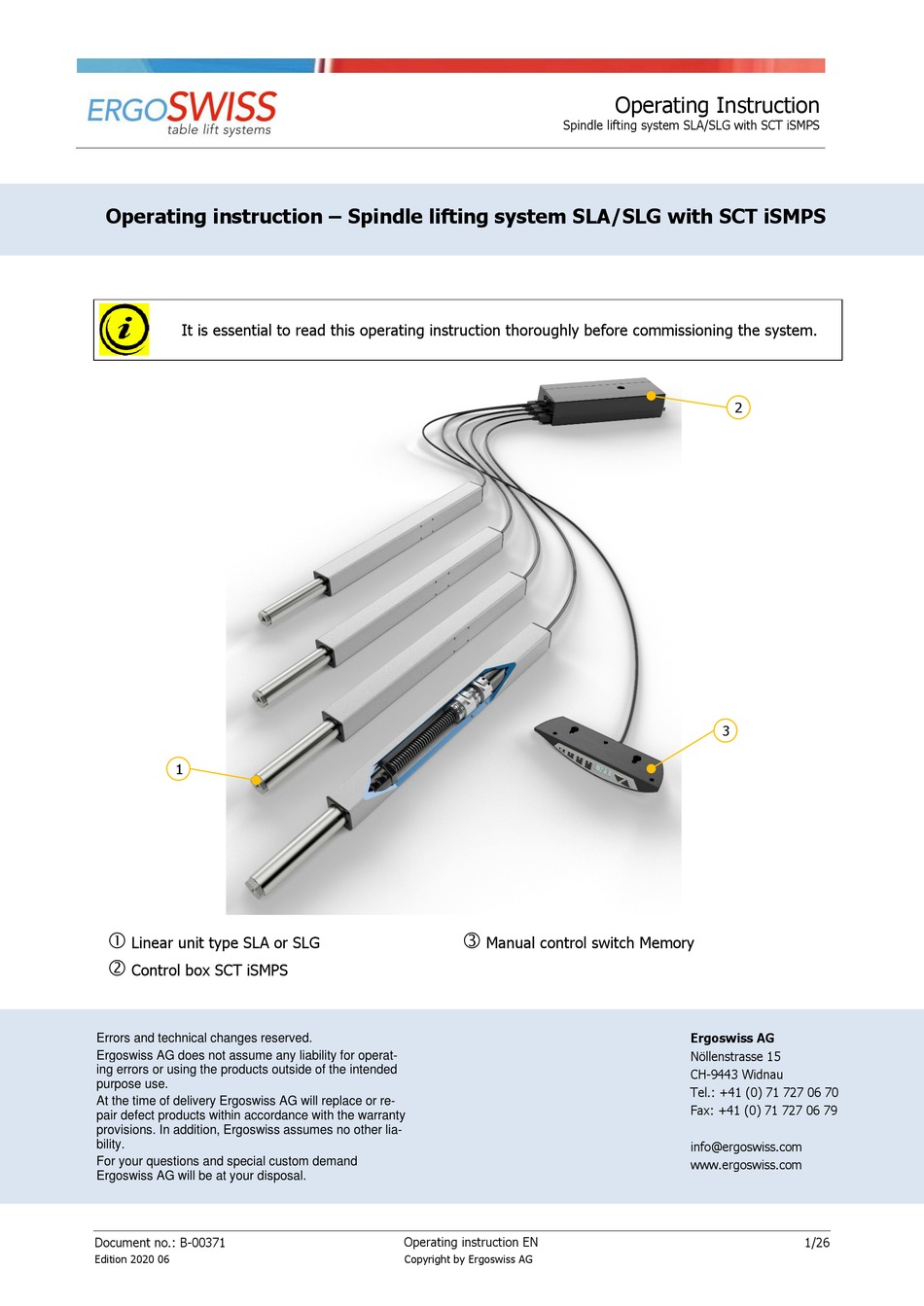

Operating instruction – Spindle lifting system SLA/SLG with SCT iSMPS
It is essential to read this operating instruction thoroughly before commissioning the system.
1
Linear unit type SLA or SLG
Control box SCT iSMPS
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operat-
ing errors or using the products outside of the intended
purpose use.
At the time of delivery Ergoswiss AG will replace or re-
pair defect products within accordance with the warranty
provisions. In addition, Ergoswiss assumes no other lia-
bility.
For your questions and special custom demand
Ergoswiss AG will be at your disposal.
Document no.: B-00371
Edition 2020 06
Spindle lifting system SLA/SLG with SCT iSMPS
Manual control switch Memory
Operating instruction EN
Copyright by Ergoswiss AG
Operating Instruction
2
3
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
1/26
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Ergoswiss SLA
Summary of Contents for Ergoswiss SLA
- Page 1 Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS Operating instruction – Spindle lifting system SLA/SLG with SCT iSMPS It is essential to read this operating instruction thoroughly before commissioning the system. Linear unit type SLA or SLG Manual control switch Memory ...
- Page 2 … Notes on the operating instructions: Lifting systems of Ergoswiss AG are intended for installation in a complete system and are classified in the category of incomplete machines in accordance with the Machinery Directive 2006/42/EC. This manual con- tains information on the commissioning, handling and safety of the lifting system and is intended for the re- user and manufacturer of the entire system.
-
Page 3: Table Of Contents
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS Table of content Safety requirements ........................ 4 Explanations of the symbols and notes ..................4 System description ........................5 General ..........................5 Intended purpose use ......................6 Target group and prior knowledge ..................6 Performance characteristics ..................... -
Page 4: Safety Requirements
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 1 Safety requirements The safety instructions must be observed! If the system is operated improperly or not according to the in- tended purpose, dangers for persons and objects can arise! Before installing and operating the lifting system, this manual must be read and understood. The instructions must be kept in the immediate vicinity of the system for lookup. -
Page 5: System Description

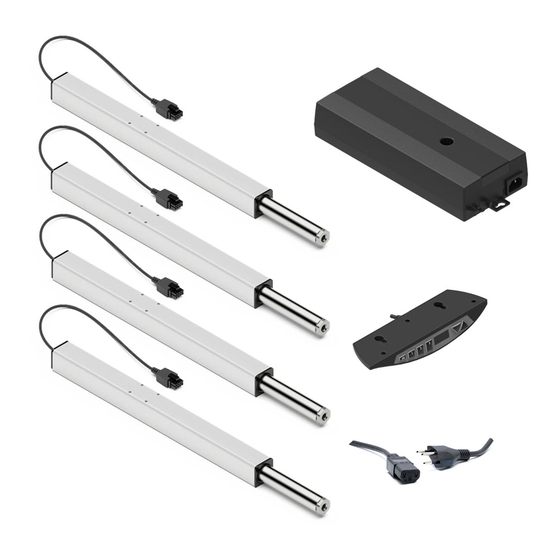

The housing of the linear unit SLA/SLG is made of a colorless anodized aluminum profile. The steel piston pipe is guided in a plastic bushing (SLA) or in a bronze bushing (SLG) and is moved by an inline spindle drive. Up to 4 linear units can be connected to one control box SCT4 iSMPS and be operated synchronously. -
Page 6: Intended Purpose Use
(e.g. by constructive measures or by means of instructions in the operat- ing instructions or/and by safety instructions on the system). In the event of improper use, the liability of Ergoswiss AG as well as the general operating license of the lifting system expires. 2.2 Target group and prior knowledge Before installing and operating the lifting system, this operation instruction must be read and understood. -
Page 7: Performance Characteristics
1250 N (281 lbf) pressure load, duty cycle 2/18 Duty Cycle 2/18; operating max. 2 min, pause 18 min Max. allowed bending moment – linear unit SLA Max. allowed bending moment – linear unit SLG Mb stat. Mb stat. -
Page 8: Control Box Sct2 Ismps And Sct4 Ismps
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 2.3.2 Control box SCT2 iSMPS and SCT4 iSMPS Dimension (L, B, H) 309 x 120 x 55 mm (12.2” x 4.7” x 2.2”) Weight 1.1 kg (2.4 lbs) Supply voltage EU: 207-254.4 V / 50 Hz / 4.5 A US: 103.5–127.2 V / 60 Hz / 7.4 A... -
Page 9: System Data
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 2.3.4 System data # spindle Max. system Lifting Duty Stroke length Linear unit Control box type column load speed cycle [kg] [lbs] [mm] [in] Type 230 V 110 V [On/Off] ... -
Page 10: Mounting Instructions
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 3 Mounting instructions 3.1 Mounting instructions spindle column NOTE The lifting system must be mounted in such a way, that driving to the lowest position is pos- sible at any time. - Page 11 Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS (drawing in mm) (drawing in mm) Operating instruction EN Document no.: B-00371 11/26 Edition 2020 06 Copyright by Ergoswiss AG...
-
Page 12: Mounting The Control Box And Connecting The Cables
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 3.2 Mounting the control box and connecting the cables ATTENTION During mounting of the control box the power cable needs to be disconnected from the mains! NOTE The control box has got an integrated tilting sensor as standard. To ensure smooth normal operation, the controller must be fixed rigidly to the system before initial commissioning. -
Page 13: Mounting The Hand Switch (Cable Remote Control)
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 3.3 Mounting the hand switch (cable remote control) NOTE (118’’) The cable of the cable remote control type Memory can be extended up to 3000 mm -> (3x extension cable 124.00290) 3.3.1 Cable remote control SCT Memory T6... -
Page 14: Initial Operation
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 4 Initial operation ATTENTION Danger of squeezing during height adjustment ATTENTION The lowest block position must always be reachable. The lifting element is not allowed to hit a stop before it reached its lowest block position. -
Page 15: Operation With The Hand Switch Type Memory
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5 Operation with the hand switch type Memory 5.1 Up / Down This function is used for easy height adjustment of the system. → Press the button Keep the button pressed until the desired working height is reached. -
Page 16: Limit The Stroke Length
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5.3 Limit the stroke length These two features can be used to limit the stroke length of the lifting system (e.g. if a container is under the table). The container stop position limits the lower end position, the shelf stop position the upper end position. -
Page 17: Locking The Movement (Child Protection)
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5.4 Locking the movement (child protection) By activating the locking function, the lifting systems can no longer move. Neither a movement with the up / down arrows nor a move to a memory position is possible. -
Page 18: Restore Factory Settings
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5.7 Restore factory settings ATTENTION Before restoring the factory settings, it must be ensured that: - the lifting element can retract completely. (130 lbs). - each lifting element is loaded with less than 60 kg NOTE When restoring the factory settings, the entire system is set up again. -
Page 19: Reset / Initialize The End Positions
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5.8 Reset / initialize the end positions ATTENTION The lowest block position must always be reachable. The lifting element is not allowed to hit a stop before it reached its lowest block position. -
Page 20: Deactivating /Activating The Tilt Sensor
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 5.9 Deactivating /activating the tilt sensor The control has an integrated tilt sensor, which is activated by default. The 0° inclination of the control is initialized during initial operation or reset. If the inclination of the control exceeds 2.5° (e.g. inclined table), the controller stops the lifting movement. -
Page 21: Synchronize 2 Control Boxes
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 6 Synchronize 2 control boxes With the SYNC-2 cable SCT (124.00183) two control boxes can be used and synchronized. (157.5’’) The SYNC-2 cable SCT is 4000 mm long. It is not possible to extend the SYNC-2 cable. -
Page 22: Safety Strip
Spindle lifting system SLA/SLG with SCT iSMPS 7 Safety strip With lifting systems from Ergoswiss AG, care must be taken to ensure that no objects or people are trapped during a lifting movement. -> Risk of crushing By attaching the safety strip to a potential pinch zone, the system stops immediately when opening or crush- (3.9’’) -
Page 23: Maintenance And Disposal
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 8 Maintenance and disposal 8.1 Maintenance and cleaning The lifting system is maintenance-free for while observing the specified normal operation. ATTENTION The control box and the manual control switch must only be cleaned with a dry or damp cloth. -
Page 24: Error Codes And Trouble Shooting
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 9 Error codes and trouble shooting 9.1 Error codes on the display 3-way Description Trouble shooting display Motor voltage supply below the per- E 60 Check power supply. Connect power cable missible minimum System overloaded →... -
Page 25: Trouble Shooting
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS The drives were operated longer than permitted. To protect against overheating, operation is blocked in E C9 Lock -> duty cycle monitoring the following minutes. Wait a few minutes until the drive has cooled down, then the system is ready for operation again. -
Page 26: Declaration Of Incorporation
Operating Instruction Spindle lifting system SLA/SLG with SCT iSMPS 10 Declaration of Incorporation Operating instruction EN Document no.: B-00371 26/26 Edition 2020 06 Copyright by Ergoswiss AG...
