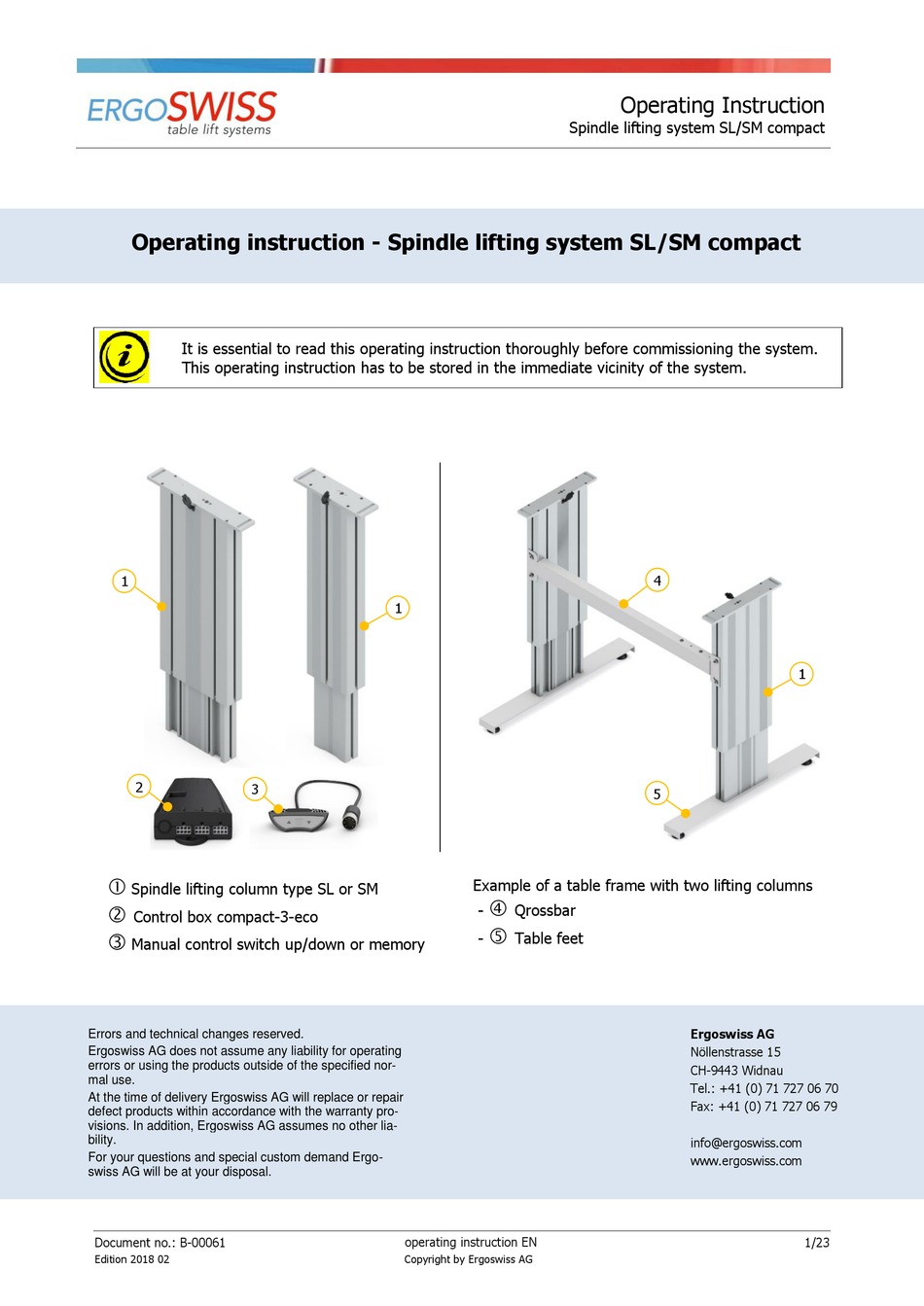

Operating instruction - Spindle lifting system SL/SM compact
It is essential to read this operating instruction thoroughly before commissioning the system.
This operating instruction has to be stored in the immediate vicinity of the system.
1
2
3

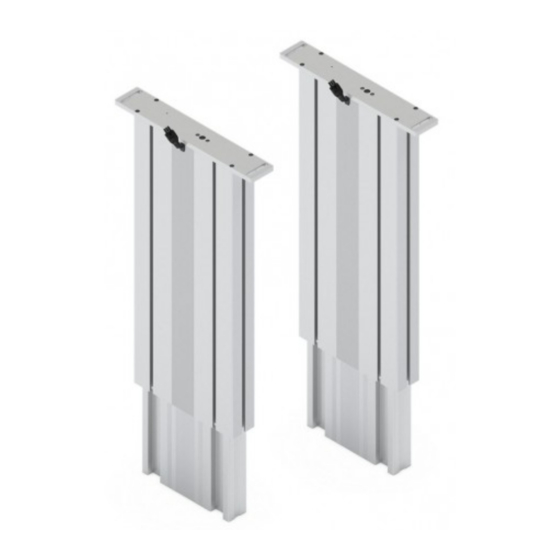

Spindle lifting column type SL or SM
Control box compact-3-eco
Manual control switch up/down or memory
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operating
errors or using the products outside of the specified nor-
mal use.
At the time of delivery Ergoswiss AG will replace or repair
defect products within accordance with the warranty pro-
visions. In addition, Ergoswiss AG assumes no other lia-
bility.
For your questions and special custom demand Ergo-
swiss AG will be at your disposal.
Document no.: B-00061
Edition 2018 02
1
Example of a table frame with two lifting columns
-
Qrossbar
-
Table feet
operating instruction EN
Copyright by Ergoswiss AG
Operating Instruction
Spindle lifting system SL/SM compact
4
5
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
1
1/23
Advertisement
Table of Contents
Related Manuals for Ergoswiss SL compact
Summary of Contents for Ergoswiss SL compact
- Page 1 CH-9443 Widnau mal use. Tel.: +41 (0) 71 727 06 70 At the time of delivery Ergoswiss AG will replace or repair Fax: +41 (0) 71 727 06 79 defect products within accordance with the warranty pro- visions. In addition, Ergoswiss AG assumes no other lia- bility.
- Page 2 Stroke length in cm 30 cm, 40 cm Power cable EU, CH, IT, UK, US 01= Manual control switch up/down ; 02= Memory 01, 02 -> (compact) operating instruction EN Document no.: B-00061 2/23 Edition 2018 02 Copyright by Ergoswiss AG...
-
Page 3: Table Of Contents
Error messages on the display ......................21 Click codes ............................22 Trouble-shooting ..........................22 Repairs and spare parts ........................22 Disassembly and disposal ........................22 Declaration of Incorporation ........................23 operating instruction EN Document no.: B-00061 3/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 4: System Description
1 System description 1.1 General The basic functionality of a spindle lifting system SL/SM by Ergoswiss AG is the lifting and lowering of work surfaces, machine parts, profile systems, etc. An operative spindle lifting System SL/SM consists of a minimum of following components: •... -
Page 5: Performance Characteristics
1.4.5 Manual control switch up/down and memory Supply voltage 5 VDC ± 10 % Power consumption (average) 50 mA Ambient temperature 0 – 50 °C Protection class (DIN EN 60529) IP 30 operating instruction EN Document no.: B-00061 5/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 6: Safety Requirements
Non-compliance with this information can result in damage to property or light to medium personal injuries. NOTE Indicates general notes, useful operator advice and operating recommendations which do not affect safety and health of the user. operating instruction EN Document no.: B-00061 6/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 7: Basic Safety Instructions
Only use a dry or a damp cloth to clean the control box! Before cleaning, the power cable has to be separated from the mains! operating instruction EN Document no.: B-00061 7/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 8: Preparation Of First Initial Operation
The cable of the manual control switch has got a length of 1’800 mm, and if needed it can be expanded with up to 3 extension cables. They have a length of 1’000 mm. 124.00071: PXD manual control switch extension cable 1’000 mm operating instruction EN Document no.: B-00061 8/23 Edition 2018 02 Copyright by Ergoswiss AG... - Page 9 Does the mains voltage correspond to the value on the name plate of the control box? Are the plugs of the motor cable connected correctly? Is the entire lifting system assembled according to the assembly instructions? operating instruction EN Document no.: B-00061 9/23 Edition 2018 02 Copyright by Ergoswiss AG...
-
Page 10: Mounting Of The Manual Control Switch
2. Fasten the manual control switch using the mounting screws. Be careful not to drill through the table top! operating instruction EN Document no.: B-00061 10/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 11: Manual Control Switch D / Memory
The front edge of the manual control switch should not stick out of the table edge. Fasten the manual control switch using the mounting screws. Be careful not to drill through the table top! operating instruction EN Document no.: B-00061 11/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 12: Initial Operation
If a lifting element is missing or if it is replaced, the control box will click three times. After plugging out a lifting element the system must be reset to synchronize all connected lifting elements. operating instruction EN Document no.: B-00061 12/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 13: Operation
(Only with manual control switch type Memory!) This function is designed to approach a stored position. Press one of the buttons The system approaches and stops at the stored position. operating instruction EN Document no.: B-00061 13/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 14: Setting The Shown Height On The Display (Only With Manual Control Switch Type Memory!)
Control box will click twice when stored position is deactivated. NOTE These steps have to be done for a container stop and a shelf stop position separately. operating instruction EN Document no.: B-00061 14/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 15: Reset Of The Control Box
While commissioning (“Long Key Down”) the control box works with only half power and half speed. The system should be fully loaded after finishing the initial operation. operating instruction EN Document no.: B-00061 15/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 16: Synchronous Operation Of 2, 3 Or 4 Control Boxes
The SYNC-4 cables of each control box are to be connected. The loose ends do not have to be connected. However, connecting the loose ends will not have any influence to the system. operating instruction EN Document no.: B-00061 16/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 17: Commissioning The Synchronized Systems
Scenario: power cut on only one control box Display blinks (000) Then display blinks (E93) Do a „S 0“ according to chapter 5.7.2. operating instruction EN Document no.: B-00061 17/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 18: Safety Strip - Squeezing Protection
Spindle lifting system SL/SM compact 7 Safety strip – Squeezing protection With lifting systems of Ergoswiss AG it is important to make sure that no objects or people are trapped dur- ing a stroke. ->Danger of squeezing Attach the safety strip to an assumed squeeze zone. If the safety strip gets squeezed while the system is doing a downward or upward movement, the motor will stop instantly and turn back for one motor turn (4 mm). -
Page 19: Connecting The Safety Strip
The safety strip must be connected to the control box before the control box is connected to the mains. If the safety strip is connected afterwards, it will not be recognised by the control box. operating instruction EN Document no.: B-00061 19/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 20: Maintenance And Disposal
The control box and the manual control switch must only be cleaned with a dry or damp cloth. Before cleaning the power cable has to be separated from the mains! ATTENTION No liquid is allowed to enter the plug connections. operating instruction EN Document no.: B-00061 20/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 21: Error Messages On The Display
5 seconds. Reconnect the power then the control box changes to the cable and reset the system. reset mode with a flashing display of 000. operating instruction EN Document no.: B-00061 21/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 22: Click Codes
The system consists of components that can be fully recycled and thus they are quite safe from an environmental protection perspective. The electronic parts comply with the RoHs directive. operating instruction EN Document no.: B-00061 22/23 Edition 2018 02 Copyright by Ergoswiss AG... -
Page 23: Declaration Of Incorporation
Operating Instruction Spindle lifting system SL/SM compact 9 Declaration of Incorporation operating instruction EN Document no.: B-00061 23/23 Edition 2018 02 Copyright by Ergoswiss AG...
