KONA P
HOTON
U
G
SER
UIDE
D
T
:
OCUMENT
YPE
D
N
OCUMENT
UMBER
D
I
:
OCUMENT
SSUE
D
S
:
OCUMENT
TATUS
P
N
:
RODUCT
AME
P
C
:
RODUCT
ODE
I
D
:
SSUE
ATE
KONA Photon Gateway
TEKTELIC Communications Inc.
I
O
U
G
SER
UIDE
:
T0008790_UG
1.2
R
ELEASED
KONA P
HOTON
See Table 1
December 13, 2023
T G
ATEWAY
G
ATEWAY
T0008790_UG
Confidential
Version 1.2
Page 1 of 23
Advertisement
Table of Contents
Related Manuals for TEKTELIC Communications T0008479
Summary of Contents for TEKTELIC Communications T0008479
- Page 1 HOTON ATEWAY UIDE OCUMENT UIDE T0008790_UG OCUMENT UMBER OCUMENT SSUE OCUMENT TATUS ELEASED KONA P RODUCT HOTON ATEWAY See Table 1 RODUCT December 13, 2023 SSUE KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 1 of 23...
- Page 2 Sept. 19, 2023 Released K. Minderhoud Updated document number Updated table 10 Dec. 13, 2023 Released K. Minderhoud Updated footnotes Updated PoE comments in tables 4 and 5 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 2 of 23...
-
Page 3: Table Of Contents
Solar Panel Assembly Attachment to Mounting Arm ........17 Ground Cable Installation ....................18 RF Cable Installation ....................... 20 Solar Panel Power Cable Connection ................20 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 3 of 23... - Page 4 Copper Ethernet Cable Installation ................21 2.10 System Sighting ......................21 2.10.1 Azimuth Angle ......................21 2.10.2 Elevation Angle ....................... 21 Maintenance .......................... 23 Solar Panel ........................23 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 4 of 23...
-
Page 5: List Of Tables
Table 8: Compliance Specifications ....................9 Table 9: Photon Radio Module External Connector Types ............10 Table 10: Photon Gateway Panel Tilt Angles and Latitude Ranges ..........22 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 5 of 23... -
Page 6: Product Description
The KONA Photon Solar Panel Assembly is available in two sizes, 50 and 95 W. The Photon Radio Module can support the addition of a second solar panel assembly if an optional expansion cable. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 6 of 23... -
Page 7: Specifications
100/1000 BaseT Not intended for permanent connection PoE 802.3at Type 1 (802.3af) Access Port SIM tray Nano SIM Micro-B Visible LED Multi-color Availability target – Q2 2024 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 7 of 23... -
Page 8: Power
Although the KONA Photon Gateway can be powered through either the solar DC input or the power over ethernet (PoE) input, simultaneous application of power to both inputs may result in unexpected operation and shall be avoided. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 8 of 23... -
Page 9: Compliance
Conducted Immunity: EN 61000-4-6 Surge Immunity: EN 61000-4-5 Emissions : FCC pt. 15.109 Class B, FCC pt. 15.209 FCC pt. 15.247 EN 300 220 EN 301 489 KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 9 of 23... -
Page 10: Physical Interfaces
LoRa Antenna N-Type female Copper Ethernet RJ45 Modular Jack Module test only. Not intended for permanent connection Micro-B Module test only. Not intended for permanent connection KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 10 of 23... -
Page 11: Installation
• Always ensure the Ethernet connection port and 3G/4G Modem SIM card access port are properly sealed after installation or servicing. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 11 of 23... -
Page 12: Required Equipment For Installation

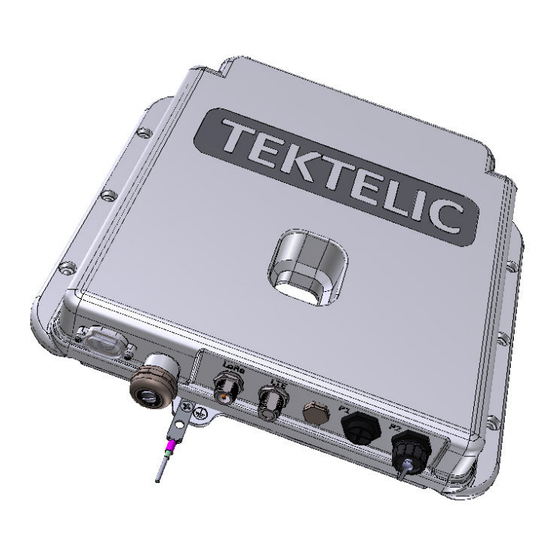

The KONA Photon Gateway is shipped in two packages, one containing the Photon Radio Module (Figure 3), and the other containing the Photon Solar Panel Assembly (Figure 4). Figure 3: KONA Photon Radio Module KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 12 of 23... -
Page 13: Gateway Commissioning
SIM. When only one SIM is used, please place the SIM in slot 0 (primary SIM / inner slot) as indicated by Figure 4. Slot 1 is for the secondary SIM (outer slot). KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 13 of 23... - Page 14 Figure 7: SIM Tray Removal Ensure the SIM access cover gasket is properly in place and the cover is properly secured using the two M2.5 cover screws. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 14 of 23...
-
Page 15: Photon Radio Module Powering For Commissioning
Connect the mounting knuckle to the solar panel’s mounting frame using the supplied M5 x 0.8 – 24mm machine screws. Tighten the mounting screws to 2.5 Nm (22 in·lbs). Figure 9: Mounting Knuckle KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 15 of 23... -
Page 16: Attach Radio Module To Solar Panel
Attach the assembled mounting arm to the mounting bracket using the supplied M5 X 0.8 - 25 MM machine screws (refer to Figure 11). Tighten the mounting screws to 2.5 Nm (22 in·lbs). Figure 11: Mounting Arm Attachment KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 16 of 23... -
Page 17: Attach Pole/Wall Mount Bracket Assembly
Loosely affix the locknut to the end of the bolt. Figure 13: Solar Panel Assembly to Mounting Arm KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 17 of 23... -
Page 18: Ground Cable Installation
2. Use a clean cloth to remove any debris from this surface. 3. Immediately coat the contact surface with a thin layer of anti-oxidant compound. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 18 of 23... - Page 19 M4x0.7 – 12mm bolt with flat, lock, and star washers, torqued to 2.5 Nm (22 in·lbs). Figure 15: KONA Photon Radio Module Ground Connection Point KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 19 of 23...
-
Page 20: Rf Cable Installation
P2 when not in use. The panel power port is a special interface, only panels provided by TEKTELIC can be used. Cellular antenna port will be surge protected internally with Gen 2 radio hardware. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 20 of 23... - Page 21 Gateway tilt angle setting. An easy way to determine site latitude is through Google Maps by right clicking on the site’s location; the first number is the latitude. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 21 of 23...
-
Page 22: Table 10: Photon Gateway Panel Tilt Angles And Latitude Ranges
42° to 54° 60° 33° to 42° 50° 25° to 33° 40° 19° to 25° 30° 13° to 19° 20° 7° to 13° 10° 0° to 7° KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 22 of 23... - Page 23 3 Maintenance 3.1 Solar Panel Clean the solar panel glass surface as dictated by local environmental conditions for optimum system performance. KONA Photon Gateway T0008790_UG Version 1.2 TEKTELIC Communications Inc. Confidential Page 23 of 23...
