General International 50-175 Setup & Operation Manual

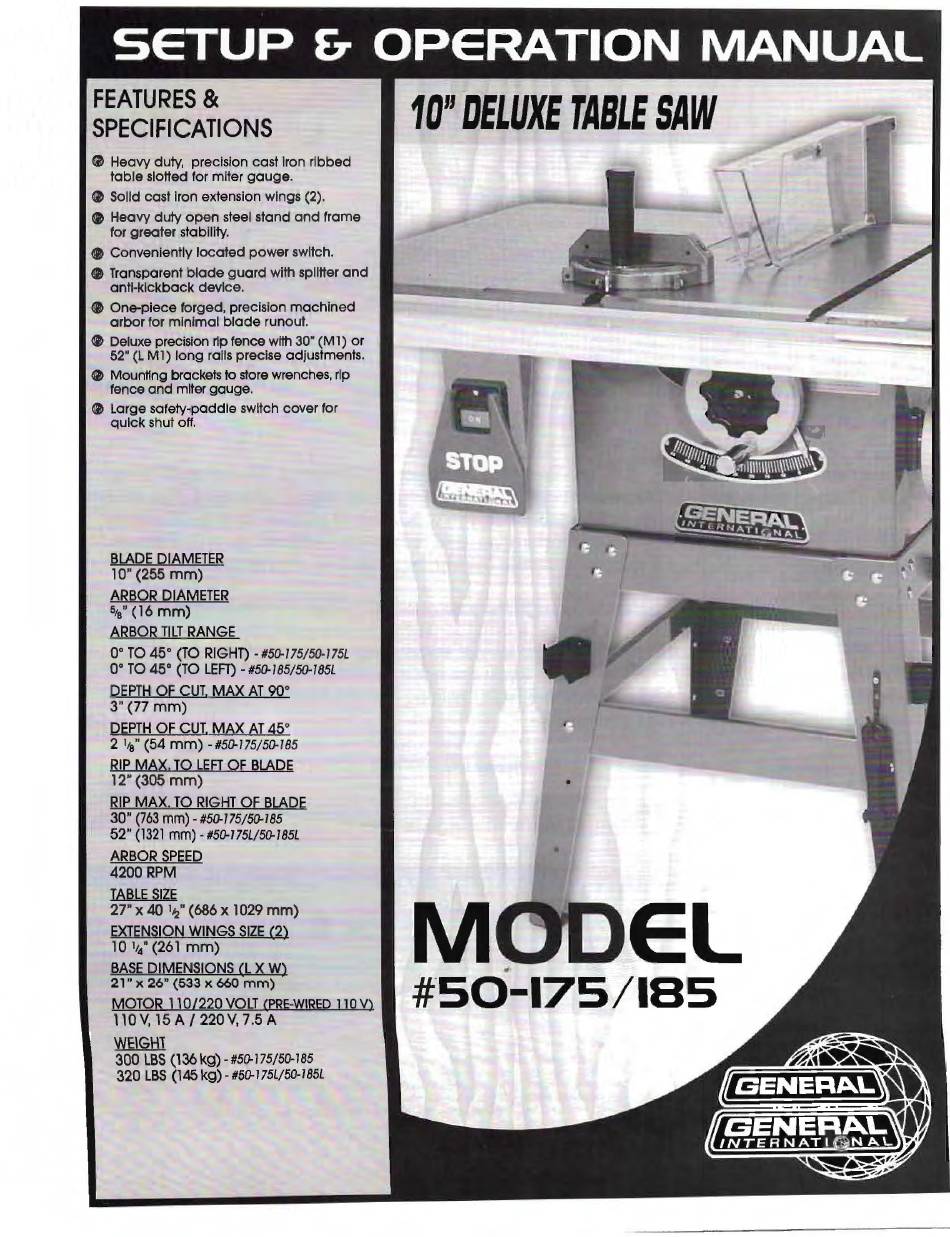

SETUP & OPERATION MANUAL
FEATURES &
SPECIFICATIONS
~
Heavy duly, precision cast Iron ribbed
table slotted for miter gauge.
~
Solid cast iron extension wings (2).
~
Heavy duly open steel stand and frame
for greater stabilily.
• Conveniently located power switch.
• Transparent blade guard with splitter and
anti-kickback device.
(t One-piece forged, precision machined
arbor for minimal blade runout.
~
Deluxe precision rip fence with 30" (M 1) or
52"
(L M
1)
long rails precise adjustments.
• Mounting brackets to store wrenches, rip
fence and miter gauge.
(t
Large safely-paddle switch cover for
quick shut off.
BLADE DIAMETER
10" (255 mm)
ARBOR DIAMETER
5 /8 "
(16 mm)
ARBOR TILT RANGE
0° TO 45° (TO RIGHT)
-#50-175/50-175L
0° TO 45° (TO LEFT) -
#50-185/50-785L
DEPTH OF CUT. MAX AT 90°
3"(77 mm)
DEPTH OF CUT. MAX AT 45°
21/8"
(54 mm)
-#50-175/50-185
RIP MAX. TO LEFT OF BLADE
12" (305 mm)
RIP MAX. TO RIGHT OF BLADE
30"
(763 mm) -
#50-775/50-185
52" (1321
mm) -
#50-175L/50-785L
ARBOR SPEED
4200 RPM
TABLE SIZE
27" x 40
1
' : 2" (686 x 1029 mm)
EXTENSION WINGS SIZE (2)
10 1
1/
(261 mm)
BASE DIMENSIONS (L X W)
21" x 26" (533 x 660 mm)
MOTOR 1101220 VOLT (PRE-WIRED 110 V)
nov,
15 A /220V, 7.5 A
WEIGH1
300 LBS (l36kg)-#50-J75/50-IB5
320 LBS
(145kg)-#50-J75L/50-185L
10
JI

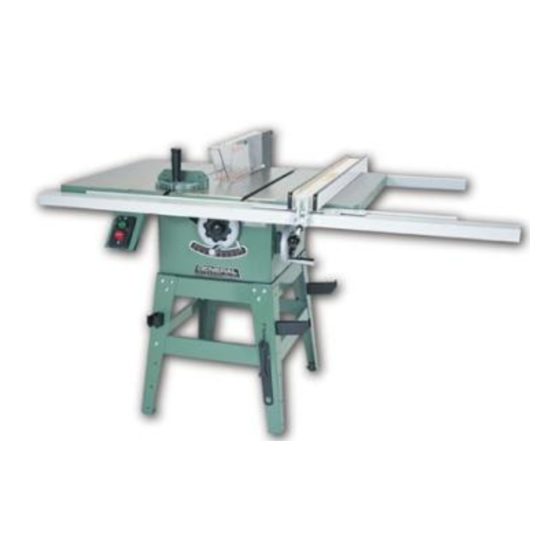

DELUXE TABLE SAW
M EL
#·50-175/185
