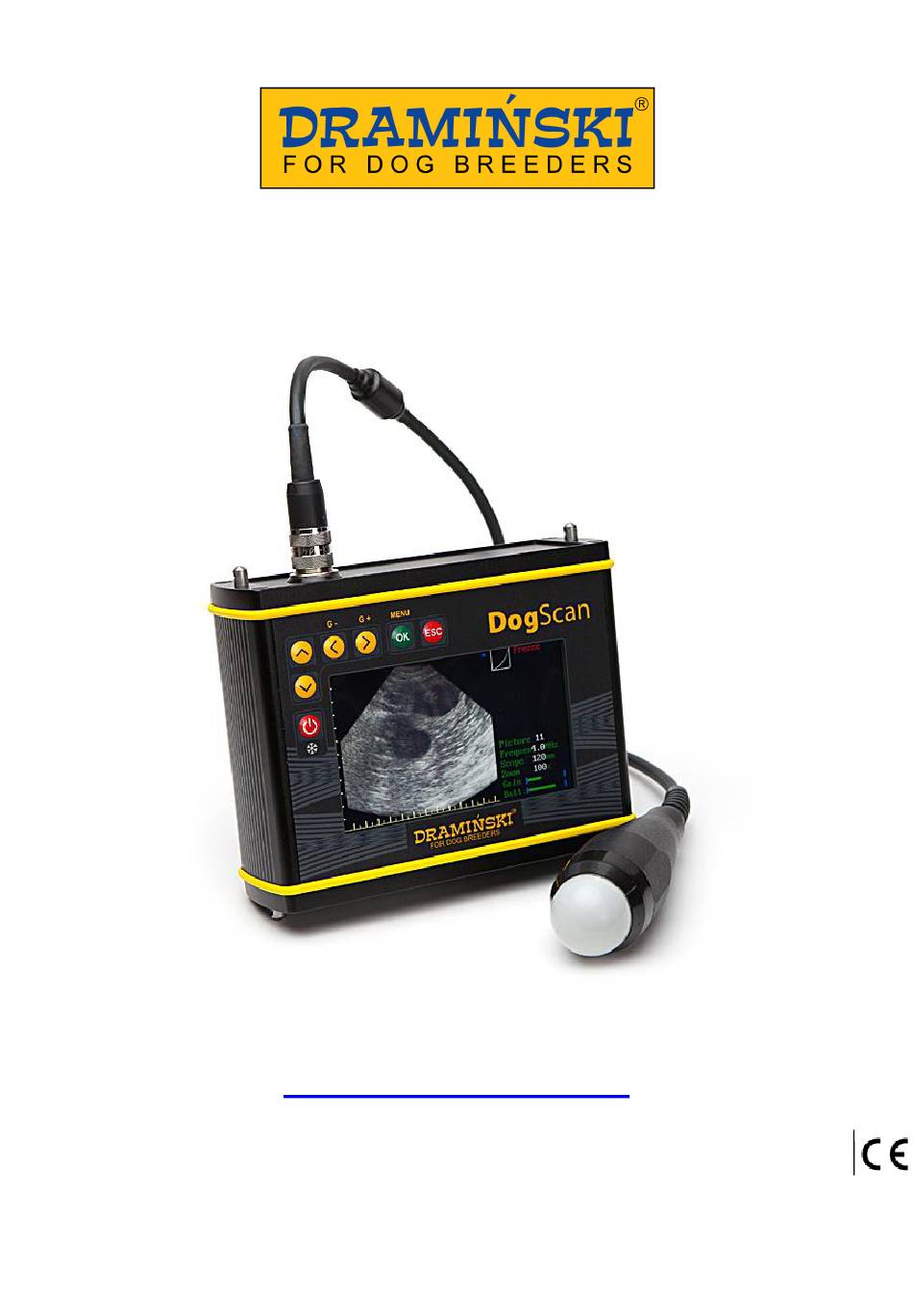

- Page 1 DRAMIŃSKI DogScan USER MANUAL www.dog.draminski.com ISO 9001 version: 1.1 2019.06...
- Page 2 DRAMIŃSKI S.A. will willingly deal with any comments and notices of our customers concerning the device and the user manual. Please, call: +48 89 527 11 30 or send e-mails at: dog@draminski.com Developed by DRAMIŃSKI S.A. All rights reserved. Copying without DRAMIŃSKI S.A. permission is prohibited.
-
Page 3: Table Of Contents
CONTENT INTRODUCTION ............................5 ELEMENTS OF EQUIPMENT ........................6 CONSTRUCTION OF THE SCANNER ......................6 TECHNICAL DATA ..........................10 FRONT PANEL with a membrane keyboard ..................11 MENU STRUCTURE ..........................14 EXAMINATION OF ANIMALS ........................ 18 BATTERY CHARGING ..........................19 MAINTENANCE OF THE DEVICE AND THE HEAD .................. - Page 4 Information about the user manual. The user manual was developed to introduce technical properties of the device. It was written in a clear and comprehensible way in order to facilitate the use of the information provided in the guide. Familiarizing yourself with the user manual cannot substitute even a basic ultrasound course.
-
Page 5: Introduction

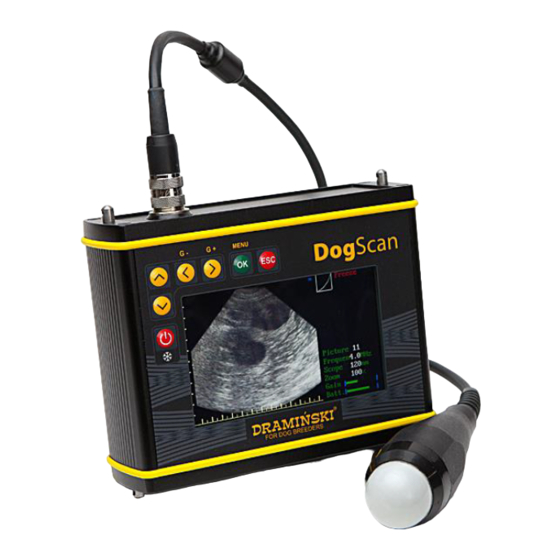

The Dramiński DogScan ultrasound scanner is a special device designed for quick, comfortable and reliable testing of dog’s pregnancy. This is a portable ultrasound scanner with high performance battery pack (the pack of fully charged batteries enables 6 hours of continuous work). -
Page 6: Elements Of Equipment
Transport case with foam insert CONSTRUCTION OF THE SCANNER The DRAMIŃSKI DogScan ultrasound scanner has a few main elements: 1. The body frame with a membrane keyboard and LCD LED display. 2. The ultrasound probe connected to the multi pin connector. - Page 7 Attention! The ultrasound scanner is a solid device. However, during operation and transportation it should be handled with care in order not to damage the device. Protect it against strong impacts. The probe should be protected against getting wet or dirty. 5-inch LED back-lit LCD display is of high quality.
- Page 8 12-pin probe connector Rear view of the body frame without battery pack battery pack connectors system to lock up the battery pack system to attach the battery pack to the body frame...
- Page 9 2. Ultrasound probe. The probe (head) is a key element of the device. The DRAMIŃSKI DogScan ultrasound scanner has one port with an abdominal probe. 5.0 MHz (3-7 MHz) sector abdominal probe, scan angle 90 Attention! The probe is a complicated mechanical device which should be handled with care and protected against falling on the ground and strong impact.
-
Page 10: Technical Data
A lifespan of the batteries is about 500 charging cycles. The batteries have high capacity (3.1Ah), which guarantees 6 hours of continuous operation. Special precautions how to handle the lithium-ion batteries are described in the further part of the manual devoted to “Battery charging”. 4. -
Page 11: Front Panel With A Membrane Keyboard
FRONT PANEL with a membrane keyboard 1. Front panel. The DRAMIŃSKI DogScan’s front panel has a 5-inch LCD display and a membrane keyboard used to control parameters of work during examination. Function and location of keys are presented in the following figure:... - Page 12 2. View of the screen. Messages and information presented on the screen during operation of the device. Exemplary view of the screen of the DRAMINSKI DogScan ultrasound scanner, description of messages and information: Information bar presents current settings: probe gain level, frequency, scanning range, zoom, gamma level, freeze and battery level.
- Page 13 Connect the round connector of the probe properly into the socket on the frame body and tighten it holding the metal part in order to guarantee full and proper connection of the probe’s connector with the socket. The DRAMIŃSKI DogScan ultrasound scanner has one 12-pin connector used to connect the probe.
-
Page 14: Menu Structure
1. How to navigate through the Menu. Press „OK” to open the DRAMIŃSKI DogScan’s menu. It is simple and it is easy to navigate through it. In order to select certain options and change the settings, use buttons. - Page 15 a carried out test and conditions in which the test is carried out. This regulation is possible in real time during scanning. When the gamma correction is set, it is necessary to adjust the gain level in order to obtain the best quality image. d) Zoom.
- Page 16 - Factory defaults. (This option enables restoring factory settings) When you confirm this option, the system shows a message: “To restore Factory settings, Press OK”. When you press OK, the system turns off and when it restarts, it turns to factory settings.
- Page 17 FREQUENTLY USED FUNCTIONS The image freezes when you press this button, the information bar shows the message “Frozen”. In order to return to scanning, press this button Freeze again. Notice! If you hold this button for more than 2 seconds, the device switches off. This is a basic function used during testing animals.
-
Page 18: Examination Of Animals
EXAMINATION OF ANIMALS Before you start working, prepare the device and the accessories. 1. Connect the battery pack. 2. Connect the probe. 3. Switch on the device and check the battery level. Fully charged batteries enable 6 hours of continuous work. 4. -
Page 19: Battery Charging
Thanks to the use of high-capacity batteries it is possible to work continuously for about 6 hours. At the bottom of the DRAMIŃSKI DogScan’s screen there is a graphic symbol which indicates the battery level. If the strip becomes shorter and its colour changes from green to yellow, it means that the battery is discharging and you may work for about 1 hour 30 minutes until it gets very low. - Page 20 Attention! The charger is an auxiliary device used to charge the battery pack. It is not a part of the DRAMIŃSKI DogScan ultrasound scanner which should be used during testing. Attention! If you connect the charger to the battery pack connected to the ultrasound scanner, the power supply automatically stops and you cannot carry out any tests.
-
Page 21: Maintenance Of The Device And The Head
The batteries should be charged at ambient temperature of 0 °C to 40 °C. Charging the battery in a different range of ambient temperature may cause danger or lasting harm to the pack. If you have problems with charging after a long period of use (about 500 cycles), you should replace the battery pack. -
Page 22: Troubleshooting
2. Ambient temperature is too low. 3. The battery is worn out (typical symptom which follows from its construction and operational rules) If none of these actions helps, contact the service department of DRAMIŃSKI S.A. phone +48 89 527 11 30 or e-mail: dog@draminski.com... -
Page 23: Warranty
2. Present the copy of proof-of-purchase which shows name and address of the seller, date and place of the purchase, type and batch number of the product. Warranty is given by: DRAMIŃSKI S.A. Owocowa 17, 10-860 Olsztyn POLAND phone +48 89 527 11 30 e-mail address: dog@draminski.com www.dog.draminski.com... - Page 24 Owocowa 17, 10-860 Olsztyn, Poland tel. +48 89 527 11 30 e-mail: dog@draminski.com...
