Page 4

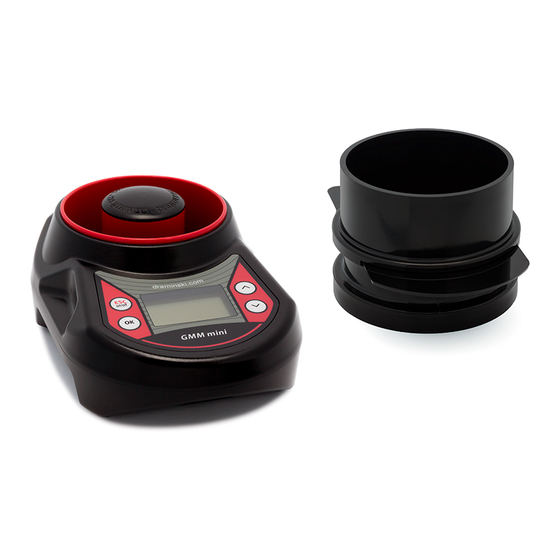

Thank you for choosing the new Draminski GMM mini Declaration of conformity is available for review at the grain moisture meter. This excellent device will be very seat of DRAMIŃSKI S.A. at 17 Owocowa st., 10-860 Olsztyn, useful in your activity. It is small and light, easy to take to Poland.
Page 6
COMPONENTS: Draminski GMM mini grain moisture meter reusable transport packaging (made of plastic) mini-USB port rubber cap special dispenser with a damper 2 AA type batteries, 1.5 V (LR6) instruction manual USB cabel for computer connection SECTION 1 | COMPONENTS...
Page 8
PRODUCT DESCRIPTION heavy duty ABS plastic casing measuring chamber with digital temperature sensor graphic LCD display with LED backlight membrane keyboard battery compartment for 2 AA type batteries, 1.5V (LR6) mini-USB port with rubber dust cap dispenser dispenser damper SECTION 2 | PRODUCT DESCRIPTION...
Page 9
APPROXIMATE DIMENSIONS 8,0 cm 19,0 cm 8,0 cm 15,0 cm 12,5 cm 11,0 cm SECTION 2 | PRODUCT DESCRIPTION...
Page 12
– device on/off – hold for 5 seconds to switch off the device (Note: the GMM mini can be switched off also by using the menu option “Shut- down”. If the device is not in use for a long time, it will switch off automatically to save the batteries) –...
Page 14
The GMM mini is ready for use when batteries are GMM mini Choose species properly installed in their compartment (check po- larity). Canola Spring barley Switch on the device using Caution! If batteries are too weak to continue work, a) a welcome message will be displayed, showing...
Page 15
GMM mini remains in the standby mode for several minutes, it will shut off automatically (time setting possible in menu). Countdown from 10 to 0 will display on the screen – press any button to stop, or the device will shut off automatically to...
Following the manual as well as experience gained – while measuring, when „Chamber empty?” message displays, check whether the chamber in time will largely facilitate reaching the expected accuracy and repetition of sample moisture meas- is empty, clean and dry and then press but- ton to confirm, because the device reads the pa- urements.
Page 19
– each species has a different range of measured moisture. Results beyond the set range are marked with a proper sign: „<8.5%” (below the range), when moisture of tested sample is lower than 8.5%, „>35.0%” (above the range), when moisture of test- ed sample is higher than 35%, –...
Page 20
SECTION 5 | INSTRUCTIONS FOR MEASUREMENTS...
Page 22
The GMM mini will al- d) when the status is confirmed, “Wait!” message will ways indicate the name of the recently selected be displayed for 1 second: species e.g Canola:...
Page 23
When these actions are completed, place the filled GMM mini Canola dispenser on the chamber (bottom edge of the Pour in sample dispenser is specially profiled to match the GMM temp: 23.7 °C mini casing). Then remove the damper to fill the Filling the measurement chamber using the measurement chamber with grain.
Page 24
GMM the displayed result reflects temperature effect mini will automatically display „Press OK” (automatic temperature compensation) GMM mini Canola CAUTION! Press OK Pour grain into the chamber only if the display temp: 23.7 °C shows „Pour in sample”...
Page 25
The device determines the average value automat- seconds or by selecting “Turn off!” option in the ically and displays it in the bottom right corner of main menu. the screen GMM mini Canola 8.8% temp: 23.9 °C avg: 8.9% the number of measurements used for calculation of the average value can be changed in the main menu (see SETTINGS section).
The Draminski GMM mini grain moisture meter is ca- e-mail: wilgo@draminski.com tel: +48 89 527 11 30 pable of storing in its memory a few hundred differ- ent types of grain to be used in measurements. The or your local authorised distributor of Draminski list of available species may vary in each device, de- products.
Page 30
The Draminski GMM mini is equipped with a mini- USB port that allows the user to update the firmware, data stored in the device memory, list of available language versions and also activate new functions of the device, or change the list of available species.
Page 31
MODIFICATION OF MOISTURE INDICATIONS SECTION...
The Draminski GMM mini grain moisture meter NOTE! stores moisture curves for each species, determined Results of measurements should be compared only on the basis of results for normalised samples (bulk with the laboratory drying-and-weighing test, not density of grain and mass of 1000 seeds), which with results of other moisture meters, as they may guarantees accurate and repeatable results.
Page 33
GMM mini GMM mini mod: -0.3 % Canola *Canola 9.9% 9.6% temp: 24.0 °C temp: 24.0 °C We recommend restoring factory settings in each following year and make another adjust- ment of indications (modification) if required. When factory settings are restored, the asterisk (*) next to the grain name disappears.
Page 34
SECTION 9 | MODIFICATION OF MOISTURE INDICATIONS...
Page 36
Species list option using and much more. In order to access the MAIN MENU, buttons. Confirm with hold button for 2 seconds. GMM mini Main menu Turn o ! Species list 1. Turn off! Settings >...
Page 37
3.2 Display 3.1a) language – to change the language version of the system, select Main menu / Settings / In- GMM mini GMM mini Settings Display ternational / Language, and choose the lan- International > Backlight intensity Display > Backlight o time guage version using buttons.
Page 38
Main menu / Settings / Power Display / Backlight off time, select required auto off , select required value using but- value using buttons and confirm tons and confirm with with GMM mini GMM mini Settings Settings International > Power auto o GMM mini...
Page 39
4. Resoult modification GMM mini GMM mini Settings Settings Before modifying (adjusting) moisture indica- International > Numbers of averages Display > tions, read MODIFICATION OF MOISTURE INDICA- Power auto o Number of averages TIONS section. The average value will appear in the bottom right...
Page 40
To add a new type of grain to the list installed in the device, go to Main menu using , then select Add right corner of the screen: species option using buttons and con- GMM mini GMM mini mod: -0.3 % firm with Choose species *Canola 9.6%...
Page 41
(on page 2) the device. Codes are dedicated for one device – to address and contact details of the manufacturer, activate a new grain type in two GMM mini moisture DRAMIŃSKI S.A. meters, you will need two different codes.
Page 46
– Protect your grain moisture meter against direct – Do not dismantle the device on your own. Any exposure to water. Avoid operating the device in modifications or repairs performed by unauthor- extreme temperatures. Do not allow moisture con- ised persons are unacceptable, as they may result densing out of the air to accumulate on metal parts in permanent damage and void the warranty.
Page 48
Approximate weight of device 700 g (with batteries) Approximate weight of dispenser 140 g Approximate dimensions 19.0 x 12.5 x 8.0 cm Power source 2 AA type batteries 1.5 V (LR6) Current battery status indicator graphic Battery discharge notification automatic Power consumption 8.5 mA up to 74 mA (depending on set backlight intensity) Approximate length of continuous work on one set of batteries...
