Summary of Contents for Draminski TG pro coffee

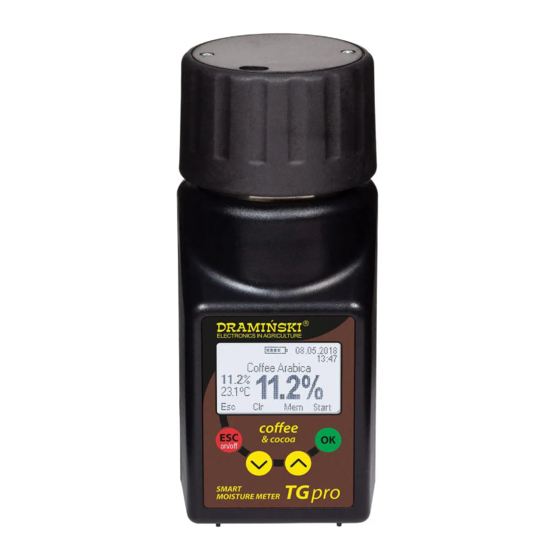

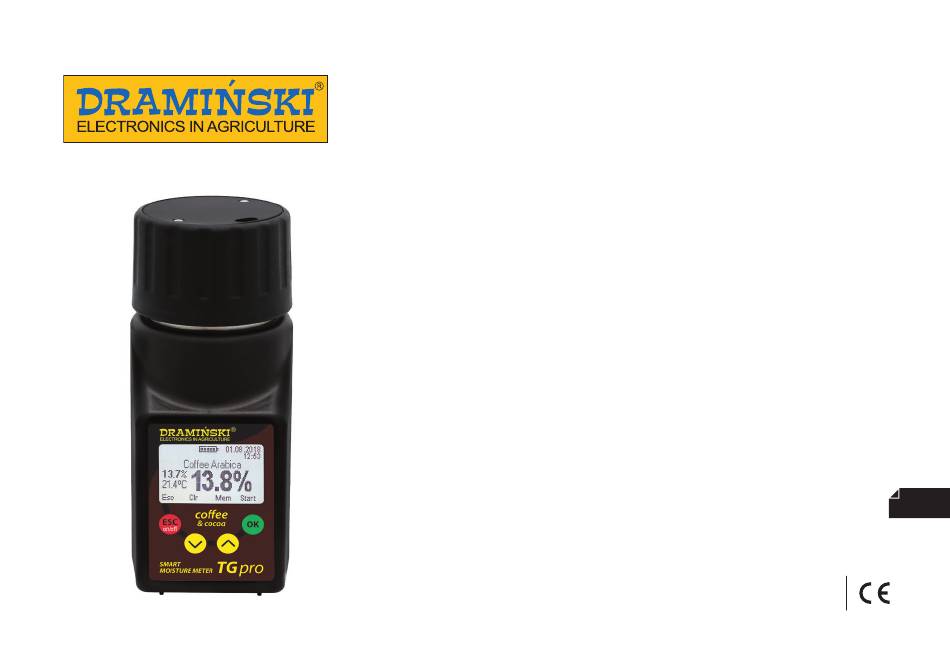

- Page 1 Dramiński TG pro coffee Smart moisture meter with sample www.draminski.com compression for coffee beans and cocoa MANUAL ISO 9001...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 SECTION 1 | EQUIPMENT . -
Page 4: Introduction
INTRODUCTION... - Page 5 For more information and always up-to-date data please visit www.draminski.com tion and the possibility to connect an external tempera- ture probe turn the purchase of TG pro coffee into a price- less investment . We wish you a pleasant work with the Please note that electronic equipment, intelligent Dramiński TG pro coffee moisture meter .
-
Page 6: Equipment
EQUIPMENT SECTION... - Page 7 EQUIPMENT: 1 . Dramiński TG pro coffee moisture meter, 2 . Measuring chamber clamping nut (with mounted 3V CR-2032 type battery), 3 . Transport case, 4 . Case strap for hanging, 5 . USB cable for communication with a computer, 6 .
-
Page 8: Design Of The Device
DESIGN OF THE DEVICE SECTION... - Page 9 DESIGN OF THE DEVICE 1 . Clamping nut with a buzzer signalling 1 . Nut housing made of polyamide appropriate clamping force, with added glass fibre, 2 . Measuring chamber with 2 . 3V battery (CR-2032 type) a digital temperature sensor, of the buzzer, 3 .
- Page 10 APPROXIMATE DIMENSIONS 16,5 cm 7 cm 7,5 cm SECTION 2 | DESIGN OF THE DEVICE...
- Page 11 SECTION 2 | DESIGN OF THE DEVICE...
-
Page 12: Keyboard Functions
KEYBOARD FUNCTIONS SECTION... - Page 13 – Turning on the device . – Turning off the device by holding down the key for 5 seconds (NOTE! TG pro coffee can also be turned off via the menu by using the “Turn off!” option, and if not in use, it will automati- cally turn off to save batteries) .
-
Page 14: Starting The Device
STARTING THE DEVICE SECTION... - Page 15 TG pro coffee will be ready for use if the batteries are correctly Turn on the device with the key . inserted in the battery compartment (pay attention to polarity) . a) a welcome message will appear on the display specify-...
- Page 16 - see section: MAIN MENU) . After pressing any key, the device will return to the working state, d) if TG pro coffee remains in the standby mode for a few min- utes, the power will be off automatically (this time can be changed in the menu - see section: MAIN MENU) .
- Page 17 In the advanced operating mode: (Esc function) returns to the list of available species, (Clr function) clears the average result, 08.10.2018 11:00 (Mem function) saves the result to the internal memory, Green Co ee Arabica 13.8% 13.7% (Start function) starts the next measurement . 21.4 C Mem Start SECTION 4 | STARTING THE DEVICE...
-
Page 18: Notes To The Measurement
NOTES TO THE MEASUREMENTS SECTION... - Page 19 – Before starting the measurement, check whether the – When cleaning the chamber, remember to do it carefully measuring chamber is clean and dry . Remember to re- so as not to damage the temperature sensor located at move the sample from the measuring chamber after the the bottom of the measuring chamber .
- Page 20 – In order to be able to store measurements from an ex- – Each species has a different range of measured moisture ternal temperature probe in the device’s memory, it is content, while exceeding it is indicated by a correspond- necessary to activate the advanced operating mode ing sign, e .
- Page 21 SECTION 5 | NOTES TO MEASUREMENTS...
-
Page 22: Humidity Measurements
HUMIDITY MEASUREMENTS SECTION... - Page 23 (NOTE when the display shows the following mes- (when turned on, TG pro coffee highlights the name of sage “Analysing...”, do not touch the measuring cham- the most recently tested species),...
- Page 24 Dramiński TG pro coffee allows you to save 50 thousand measurements to the internal memory using the h) the final result of the moisture content of a given sample key (Mem function) .
- Page 25 08.10.2018 11.00 Green Co ee Arabica 9.9% 21.6 C Mem Start j) after completing the measurements, in order to save the power source, turn off the device by holding down the key for 5 seconds or using the “Turn off!” option available in the main menu .
-
Page 26: Section 7 | Measurements With An External Temperature Probe
MEASUREMENTS WITH AN EXTERNAL TEMPERATURE PROBE SECTION... - Page 27 The Dramiński TG pro coffee moisture meter can also work 1 . To use the temperature probe, turn on the advanced op- as a professional thermometer when an external tempera- erating mode, then connect the external probe to the ture probe is connected to the mini USB socket . The mois- mini USB socket and activate the “Temperature meas-...
- Page 28 08.10.2018 11:00 PROBE NO 1 21.7 C Menu Special software for data transmission is available at www.draminski.com under Products / Moisture meters / Dramiński TG pro coffee . SECTION 7 | MEASUREMENTS WITH AN EXTERNAL TEMPERATURE PROBE...
- Page 29 SECTION 7 | MEASUREMENTS WITH AN EXTERNAL TEMPERATURE PROBE...
-
Page 30: Section 8 | List Of Available Species And Adding New Species
LIST OF AVAILABLE SPECIES AND ADDING NEW SPECIES SECTION... - Page 31 The Dramiński TG pro coffee moisture meter is able to phone: +48 89 527 11 30 store even several hundred different species and their varieties in the internal memory, which can be used dur- or with a local authorized certified distributor of ing measurements .
-
Page 32: Update Via Usb
UPDATE VIA USB SECTION... - Page 33 The Dramiński TG pro coffee moisture meter is equipped Should you have any questions or concerns, please do not with a mini USB socket so you can quickly and convenient- hesitate to contact our specialists . ly update your device’s memory, software, list of available e-mail: agri@draminski.com...
-
Page 34: Section 10 | Modification Of Humidity Results
MODIFICATION OF HUMIDITY RESULTS SECTION... - Page 35 The Dramiński TG pro coffee moisture meter has moisture The Dramiński TG pro coffee moisture meter allows you to curves for each species stored in the memory which have modify (correct) the readings yourself . been developed on the basis of standardized samples so When making modifications, each species is treated sepa- that the results are accurate and repeatable .
- Page 36 A detailed description of how to modify the humidity results and how to restore the factory settings can be found in the section: MAIN MENU. SECTION 10 | MODIFICATION OF HUMIDITY RESULTS...
- Page 37 SECTION 10 | MODIFICATION OF HUMIDITY RESULTS...
-
Page 38: Main Menu
MAIN MENU SECTION... - Page 39 2 . Species list Thanks to the functions contained in the main menu of To return to the species list from the Main menu, use the the device, the user can quickly turn off the device, adjust key or use the arrows to select the Species list option operational settings to their needs, add new species, man- age memory and many more .
- Page 40 NOTE To use the option of saving the results to the de- Operating mode vice’s memory, add the probe in the main menu settings Basic Advanced and assign any name to it . 08.10.2018 08.10.2018 b) Advanced – in order to enable all the options of the Main menu 11:00 PROBE NO 1...
- Page 41 08.10.2018 21.01.2018 08.10.2018 08.10.2018 Display Language Settings Backlight intensity Language English Backlight intensity Polski Backlight o time Display Deutsh Power auto o LCD contrast Number of averages Français 5 .2 Display 5 .2 b) Backlight off time – adjustment of the time after 08.10.2018 Settings which the backlight of the display is off and the de-...
- Page 42 5 .2 c) LCD contrast – to change the contrast of the dis- 5 . 4 Number of averages play, go to the Main menu / Settings / Display / The device automatically calculates the average of the last LCD contrast, then select the appropriate value us- measurements .
- Page 43 Temperature scale 5 .6 Date & time TG pro coffee has a real time clock so that the measure- 5 .6 b) Set time – to set the current time, go to the Main menu / Settings / Date & time / Set time, then use ment results are stored together with the actual date and time of performance .
- Page 44 5 .6 d) Time notation – to change the format of date dis- and press the key to confirm the hour/minutes, e . g . play, go to the Main menu / Settings / Date & time / Time notation, then use the key to 08.10.2018 08.10.2018...
- Page 45 5 . 7 a) Add probe – to add a probe and create a measure- key, then the “Save the name?” message will ment directory, connect it into the mini USB socket, appear which should be accepted with the go to the Main menu / Settings / Temp. probe / or cancelled with the key, e .
- Page 46 5 .8 b) Delete humidity results – to delete all stored hu- 08.10.2018 Remove the probe midity results, go to the Main menu / Settings / PROBE NO 1 COFFEE WAREHOUSE Memory, then use the key to select the Delete humidity results option and confirm with 5 .8 Memory key .
- Page 47 5 .8 d) Available memory – to check the current amount 08.10.2018 Main menu Choose species of free space in the device’s memory, go to the Main Operating mode Cocoa Temperature measureme Green Co ee Robusta menu / Settings / Memory, use the Settings Green Co ee Arabica Result modi cation...
- Page 48 First, please refer to the following section: LIST OF AVAILA- Accept code? BLE SPECIES AND ADDING NEW SPECIES . To add a new species in the TG pro coffee moisture meter, go to the Main menu using the NOTE: By entering the same code, the species are added...
- Page 49 Settings TG pro co ee Result modi cation Add species Firmware v:1.4C K:0.10 About SN: TC000030 DRAMIŃSKI S.A. ul. Owocowa 17 10-860 Olsztyn, Poland e-mail: wilgo@draminski.com tel: +48 89 527 11 30 Made in Poland SECTION 11 | MAIN MENU...
-
Page 50: Battery Replacement
BATTERY REPLACEMENT SECTION... - Page 51 TG pro coffee will automatically turn off . Change batteries The moisture meter is powered by four 1 .
- Page 52 Battery replacement in the clamping nut with a buzzer. One 3V battery (CR-2032 type) powers the sounder (buzz- er) in the clamping nut of the measuring chamber . When the sound disappears or is visibly weaker, replace the battery with a new one . To replace the battery: –...
- Page 53 SECTION 12 | BATTERY REPLACEMENT...
-
Page 54: Final Remarks
FINAL REMARKS SECTION... - Page 55 – Protect the moisture meter from direct contact with wa- – In case of problems with the device or difficulties in in- ter . Also, avoid using it alternately at extreme temper- terpreting the results, we recommend (before sending atures . Do not allow the condensation of water vapor the device for service) contacting the manufacturer, i .
-
Page 56: Technical Data
TECHNICAL DATA SECTION... - Page 57 Dimensions 16.5 × 7.0 × 7.5 cm Unit weight 520 g (with a set of batteries and nut) Sample loading manual Moisture measurement method impedance, at 4 frequencies Sample volume 90 ml Measurement control Single chip microcomputer Power supply 4 batteries type AA, 1.5 V, 1 battery type CR2032, 3V Power consumption from 30 to 72 mA depending on user’...
- Page 58 Checking memory status from menu External temperature probe with digital temperature sensor, connected via mini USB socket Display graphic LCD with LED backlight, diagonal 2” Keyboard membrane Temperature compensation automatic real time clock, recording of measurement results to the memory (with date, time and sample number), data transmission to a computer, memory status preview, battery status preview,...
- Page 59 SECTION 14 | TECHNICAL DATA...
- Page 60 DRAMIŃSKI S.A. Owocowa 17, 10-860 Olsztyn, Poland phone: +48 89 527 11 30 e-mail: wilgo@draminski.com instr.TGproC0119EN1.1...
