Virtual Services Platform 4000
4450GSX series switch
Quick Install Guide

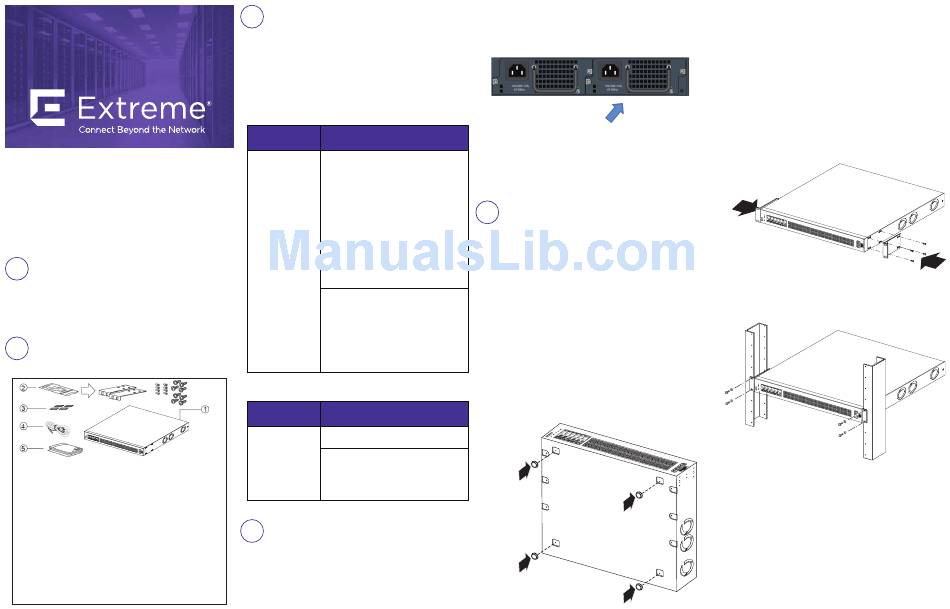

This document provides information and instructions to
install and commission a factory-supplied Extreme Networks
Virtual Services Platform 4000 4450GSX series switch. You
can download all documents referenced in this guide at
http://www.extremenetworks.com/support/documentation/.
1
Before you start
Confirm that you have the following tools and cables:
• Phillips #2 screwdriver
• Console cable that matches the console connector on the
switch (DB-9 or RJ-45)
• Electrostatic discharge (ESD) cable
2
Unpack the equipment and verify
package content
Note: Observe ESD precautions when unpacking.
8
1
3
8
5
7
8
9
11
8
8
1
2
3
5
4
6
7
8
10
9
11
12
13
15
2
17
4
6
19
21
8
23
25
10
12
27
14
16
29
31
18
33
35
20
22
1
24
26
28
30
32
34
36
2
1. Virtual Services Platform (VSP) 4000 4450GSX series switch with
one power supply installed.
2. Rack-mounting hardware that includes:
a. Rack-mount brackets
b. Screws to attach brackets to the switch
c. Screws to attach the switch to the equipment rack
3. Rubber footpads.
4. AC power cord with an IEC 60320 C16 connector.
(Note: A power cord is not included for the A variant of
the switch.)
5. Documentation that includes:
a. Locating the latest software and product
release notes (NN46251-106)
b. Regulatory Guide (NN46251-105)
c. Quick Install Guide (this document)
d. China RoHS paper
3
Verify power supply unit (PSU)
specifications
The VSP 4000 4450GSX series switch supports two
field-replaceable AC or DC PSUs. One PSU is supplied with the
chassis that can fully power the VSP 4000 system. The AC PSU
can fully power the system including all PoE+ ports.
Optionally order a redundant PSU for redundancy and
load sharing.
VSP 4000 4450GSX series AC power specifications for
VSP 4450GSX-PWR+
Primary
Redundant PSU
PSU
(to be ordered if required)
1000-watt AC PoE+
1000-watt AC power supply
(order code: AL1905?21-E6)
power supply
(replacement order
Note: You must replace the seventh character (?)
of the switch order number with the proper letter
code: AL1905?21-E6)
to indicate desired product nationalization.
Note:
• A: No power cord included.
The 1000-watt AC
• B: Includes European Schuko power cord
power supply uses the
common in Austria, Belgium, Finland, France,
Germany, The Netherlands, Norway,
IEC 60320 C16 AC
and Sweden.
power cord
• C: Includes power cord commonly used in the
connector.
United Kingdom and Ireland.
• D: Includes power cord commonly used
in Japan.
• E: Includes North American power cord.
• F: Includes Australian power cord.
PoE+ specifications
Maximum PoE+ Wattage:
• 855 watts with one power supply
• 1855 watts with two power supplies
Average PoE+ Wattage per port
(12 PoE+ ports):
• 15.4 watts (802.3af) - 1 power supply installed
• 32.4 watts (802.3at) - 1 power supply installed
VSP 4000 4450GSX series DC power specifications for
VSP 4450GSX-DC
Primary
Redundant PSU
PSU
(to be ordered if required)
300-watt DC power
300-watt DC power supply
(order code: AL1905?05-E5)
supply
(replacement
DC Power supply specifications:
order code:
• Input voltage: 48 V DC
AL1905?05-E5)
• Input current: 10 A
• Output voltage: 12 V DC
• Output current 25 A
4
(Optional) Install redundant PSU
Use this procedure to optionally install a redundant power supply.
Note: The switch ships with a filler panel in the second power
supply position. This filler panel must stay in place if you do not
intend to install a second power supply. Each power supply bay
must be populated with either a cover or a power supply for
proper air-flow management.
1. If a blanking plate covers the required power supply slot,
remove the blanking plate before attempting to insert the
power supply.
2. Insert the power supply into a rear power supply slot as
illustrated.
3. Verify that each power supply is fully seated in the slot.
Secure the power supply with the two thumb screws.
Note: The switch chassis can prevent an incorrect installation
of a power supply. If you insert a power supply upside down, it
will not fully insert and the thumb screws will not engage.
4. After you install a power supply, connect AC or DC power.
5
Mount the VSP 4000 switch
Caution: To protect the VSP 4000 switch against ESD damage, do
the following before you connect the data cables to
the device:
• Use antistatic wrist straps. Ensure that the strap has good skin
contact. Do not remove the wrist or ankle strap until the
installation is complete.
• Ensure that you properly ground work surfaces and
equipment racks.
• Avoid contact between equipment and clothing.
• Avoid touching the connector pins.
a. Table or shelf mounting
1. If you mount the VSP 4000 switch on a table or shelf, attach
the included rubber footpads as indicated. The surface must
support the combined weight of the switch and attached
cables (15 to 20 pounds [7 to 9 kilograms]).
2. Set the device on a flat surface near a power source. Allow at
least 2 inches (5.1 cm) of space on all sides for proper
air flow, and at least 5 inches (12.7 cm) at the back for power
cord clearance.
b. Rack mounting
Prepare the rack:
1. Allocate 1U of vertical space for each switch in an EIA or
IEC-standard 19-inch (48.2-centimeter) equipment rack.
Ensure that the equipment rack is stable and securely attached
to a permanent structure.
2. Ground the rack to the same grounding electrode used by the
power service in the area. The ground path must be permanent
and must not exceed 1 ohm of resistance from the rack to the
grounding electrode. It is recommended using a filter or
surge suppressor.
Mount the switch:
1. Attach an L-bracket to each side of the switch using the #2
Phillips screwdriver as illustrated.
8
1
3
5
8
7
8
9
11
8
8
1
3
2
5
4
6
7
8
9
10
11
12
13
15
2
17
4
19
21
6
23
8
25
10
27
12
29
14
31
16
33
18
35
20
22
1
24
26
28
30
32
34
36
2
2. Slide the switch into the rack as illustrated. Insert and tighten
the rack-mount screws.
1
8
3
8
5
8
7
9
11
8
8
1
3
2
5
4
7
6
9
8
11
10
13
12
15
2
17
4
19
6
21
8
23
10
25
12
27
29
14
31
16
33
18
35
20
22
1
24
26
28
30
32
34
36
2
For more details on installing the VSP 4000, see
Installing the Virtual Services Platform 4000 VSP4450GSX
series (NN46251-307).
