Summary of Contents for BOERPLAY Fitpoint

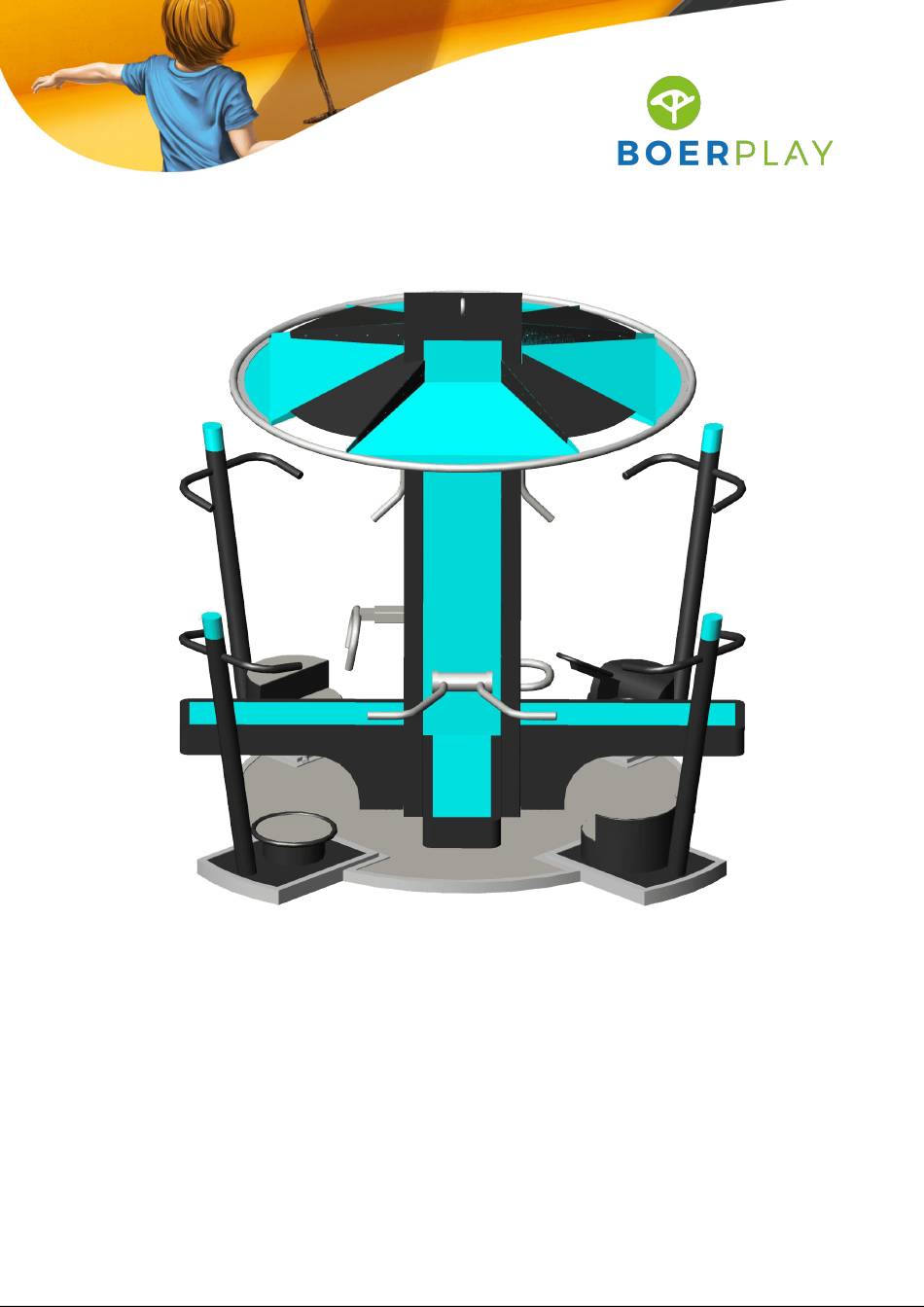

- Page 1 Fitpoint UBG.020.018...
- Page 2 Service Manual FitPoint For installation, maintenance, service and guarantee WWW.DENFIT.NL Version 2.4...
-
Page 3: Table Of Contents
Service Manual FitPoint For installation, maintenance, service and guarantee Table of Contents Transport page 3 Dimensions page 4 Installing the four corners page 5 Installation/Anchoring page 8 Floor page 9 Pillar page 10 Cables page 11 ... -
Page 4: Transport
Service Manual FitPoint For installation, maintenance, service and guarantee Transport In closed truck On open truck with crane with pre-assembled Steppers and Twisters Max. heigth: 2650 mm WWW.DENFIT.NL Version 2.4... -
Page 5: Dimensions
Service Manual FitPoint For installation, maintenance, service and guarantee Dimensions WWW.DENFIT.NL Version 2.4... -
Page 6: Installing The Four Corners
Service Manual FitPoint For installation, maintenance, service and guarantee Installing the four corners When delivered in a closed truck the four corner exercises (Stepper, Twister, StepUp and BalanceBoard) will not be pre-assembled. The necessary bolts, washers and lock nuts are supplied by Denfit WWW.DENFIT.NL... - Page 7 Tilt the floor backward and shove it over de pins (image 3a and b) Lift the floor on side of the post so it is parallel with the Fitpoint floor (image 4) Push the bolt through the holes from the inside and screw on the lock nut from the other side...
- Page 8 Service Manual FitPoint For installation, maintenance, service and guarantee Installing the four corners WWW.DENFIT.NL Version 2.4...
-
Page 9: Installation/Anchoring
For installation, maintenance, service and guarantee Installation / Anchoring The FitPoint has a weight of 1500 kg and therefor anchoring to the ground is not necessary. If an- choring is desirable, this is how it can be done: Anchoring soft surface... - Page 10 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint floor See parts list Version 2.4...
- Page 11 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint pillar See parts list Version 2.4...
- Page 12 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint cables Version 2.4...
- Page 13 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint roof See parts list Version 2.4...
- Page 14 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint weight See parts list Version 2.4...
- Page 15 Service Manual FitPoint For installation, maintenance, service and guarantee FiPoint pull down, benchpress & rowing bench See parts list Version 2.4...
- Page 16 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Abdominal bench See parts list Version 2.4...
- Page 17 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Abdominal See parts list Version 2.4...
- Page 18 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Bench Press See parts list Version 2.4...
- Page 19 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Pull down See parts list Version 2.4...
- Page 20 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Rower See parts list Version 2.4...
- Page 21 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Stepper Grease nipple See parts list Version 2.4...
- Page 22 Service Manual FitPoint For installation, maintenance, service and guarantee Installing new swing in FitPoint Stepper Disassemble bolts and nuts Remove footsteps Remove cover Disassemble bolts and nuts New Swing Remove the old Swing Assemble new Swing Fasten Swing with bolts and nuts...
- Page 23 Service Manual FitPoint For installation, maintenance, service and guarantee Installing new swing in FitPoint Stepper Fasten footsteps and cover Replace footsteps with bolts and nuts Swing unit compleet Tools required Hex. Socket screw key with two holes, size 5 mm Hex.
- Page 24 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Twister Grease nipple See parts list Version 2.4...
- Page 25 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Stepup See parts list Version 2.4...
- Page 26 Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Balance Board See parts list Version 2.4...
-
Page 27: Floor
Service Manual FitPoint For installation, maintenance, service and guarantee FitPoint Parts Page 3 Anchoring Pos.nr Art.nr. Part description Dimension Qty. FP3-01 Chem. Floor anchor M12x100 FP3-02 Anchoring pin FP3-03 Mortar cartridge FP3-04 Threaded rod M12x100 option Page 4 Floor Pos.nr Art.nr. -
Page 28: Pillar
Service Manual FitPoint For installation, maintenance, service and guarantee Page 5 Pillar Pos.nr Art.nr. Part description Dimension Qty. FP5-01 Frame base FP5-02 Hex nut FP5-03 Washer FP5-04 Pillar plate Rower FP5-05 Vibration damper FP5-06 Pillar plate Pull Down FP5-07 Hex bolt... -
Page 29: Roof
Service Manual FitPoint For installation, maintenance, service and guarantee Page 7 Roof Pos.nr Art.nr. Part description Dimension Qty. FP7-01 Lockbolt M10x30 FP7-02 Topdeel FP7-03 Lifting eye FP7-04 Washer FP7-05 Hex lock nut FP7-06 Hex nut FP7-07 Hex lock nut FP7-08... -
Page 30: Abdominal Bench
Service Manual FitPoint For installation, maintenance, service and guarantee Page 9 Pulldown, benchpress & rowing bench Pos.nr Art.nr. Part description Dimension Qty. FP9-01 Inlay panel steel FP9-02 Inlay panel rubber option FP9-03 Washer FP9-04 Hex bolt M8x16 FP9-05 Bench FP9-06 Weft cap ø25 (1/2") -
Page 31: Bench Press
Service Manual FitPoint For installation, maintenance, service and guarantee Page 12 Bench Press Pos.nr Art.nr. Part description Dimension Qty. FP12-01 Bracket FP12-02 Bearing FP12-03 Bearing block FP12-04 Hex lock nut FP12-05 Washer FP12-06 Hex bolt M12x30 FP12-07a Cable 4mm FP12-07b Cable 5mm... -
Page 32: Rower
Service Manual FitPoint For installation, maintenance, service and guarantee Page 14 Rower Pos.nr Art.nr. Part description Dimension Qty. FP14-01 Washer FP14-02 Hex nut FP14-03 Hex lock nut FP14-04 Hex bolt M8x25 FP14-05 Vibration damper FP14-06 Stroke limiter FP14-07 Tube frame... -
Page 33: Stepper
Service Manual FitPoint For installation, maintenance, service and guarantee Page 15 Stepper Pos.nr Art.nr. Part description Dimension Qty. FP15-01 Hood FP15-02 Security bolt M8x16 FP15-03 Rivet 4,8x16 FP15-04 Base plate FP15-05 Foot panel FP15-06 Washer FP15-07 Hex locknut FP15-08 Hex bolt... -
Page 34: Twister
Service Manual FitPoint For installation, maintenance, service and guarantee Page 18 Twister Pos.nr Art.nr. Part description Dimension Qty. FP16-01 Rivet 4,8x16 FP16-02 Base plate FP16-03 Galv. Inner hex screw M6x16 FP16-04 Rotating disc FP16-05 Ball bearing slewing ring FP16-06 Washer... -
Page 35: Maintenance Instructions
Service Manual FitPoint For installation, maintenance, service and guarantee Maintenance instructions Denfit devices The Denfit fitness equipment is designed in such a way that user friendliness and vandal resistance are combined as good as possible. The devices are also low-maintenance. This, however, does not mean that no maintenance is nec- essary. - Page 36 Service Manual FitPoint For installation, maintenance, service and guarantee Notes 1 - The bearings of rotating parts consist in most cases of stainless steel axles and POM (plastic) buses. The combina- tion of these materials is suitable for outdoor use. This material combination has what should catch up on each other.
-
Page 37: Guarantee Conditions Denfit
2. Most steel parts come with a standard 2-layer system for outside application: Fitpoint, Gym, Professional SportPoint, PaceFit and PaceWalk. - Page 38 Service Manual FitPoint For installation, maintenance, service and guarantee A 5-year guarantee is provided on the coated parts with a 2 layer coating. Within this period, no rust should appear from inside out with normal use. Rust can only appear on the outside when the top layers are damaged.
- Page 39 Service Manual FitPoint For installation, maintenance, service and guarantee **This guarantee is not valid for locations less than 5 km from the coast and in airport vicinities or industrial areas with a lot of emissions. For this, a guarantee term of 5 years is applicable. In these situations, when Stainless Steel 316 is selected instead of the standard 304, the 10-year guarantee term is then applicable.
-
Page 40: Appendix A Operational Inspection
Service Manual FitPoint For installation, maintenance, service and guarantee Appendix A - Operational Inspection Inspection and maintenance of Denfit fitness equipment Operational inspections should be carried out on a 1 to 3 month base with the results recorded in a permanent log. -
Page 41: Appendix B Annual Main Inspection
Service Manual FitPoint For installation, maintenance, service and guarantee Appendix B - Annual Main Inspection Inspection and maintenance of Denfit fitness equipment A detailed inspection should be carried out by a specialist engineer once a year (not exeeding 12 months) and the results of such inspections entered into a permanent record. - Page 42 LOGBOEK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type aanduiding Artikelnummer UBG.020.018 Naam toestel Fitpoint Maximale valhoogte 0,5 m Bouwjaar 2023 Certificaat 0183402366 Keuringsinstantie Naam fabrikant...
- Page 43 LOGBOEK Inspectie en onderhoud Datum Tijdstip Naam Naam Geconstateerde Te vervangen inspectie inspectie uitvoerder uitvoerder gebreken onderdelen onderhoud onderhoud inspectie onderhoud Ongevallen Genomen Datum Leeftijd Vermoedelijk oorzaak letsel Opgetreden persoonlijk letsel maatregel n.a.v. ongeval slachtoffer ongeval...
- Page 44 Inspectie en onderhoud intervallen Maanden Nr. Inspectie Onderhoud tussen controle Speeltoestel controleren op stabiliteit, goede Ontbrekende onderdelen toevoegen, verbindingen en ontbrekende onderdelen. verbindingen vastdraaien. Ontbrekende Bouten, schroeven en moeren controleren op bevestigingsmiddelen aanbrengen en ontbreken, vastzitten, corrosie en slijtage gecorrodeerde onderdelen vervangen. Vervangen van versleten onderdelen en/of Ophangingen controleren op slijtage.
- Page 45 6. Controleer het terrein regelmatig op zaken die er niet thuis horen, onveilig zijn of uitnodigen tot verkeerd gebruik, bijvoorbeeld giftige planten, glas enz. De controle frequentie is afhankelijk van de belasting. 7. Bedenk dat slecht onderhoud leidt tot onveiligheid en aantoonbare snellere verpaupering van de speelomgeving.
- Page 46 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
