Summary of Contents for BOERPLAY Combination Calisthenics

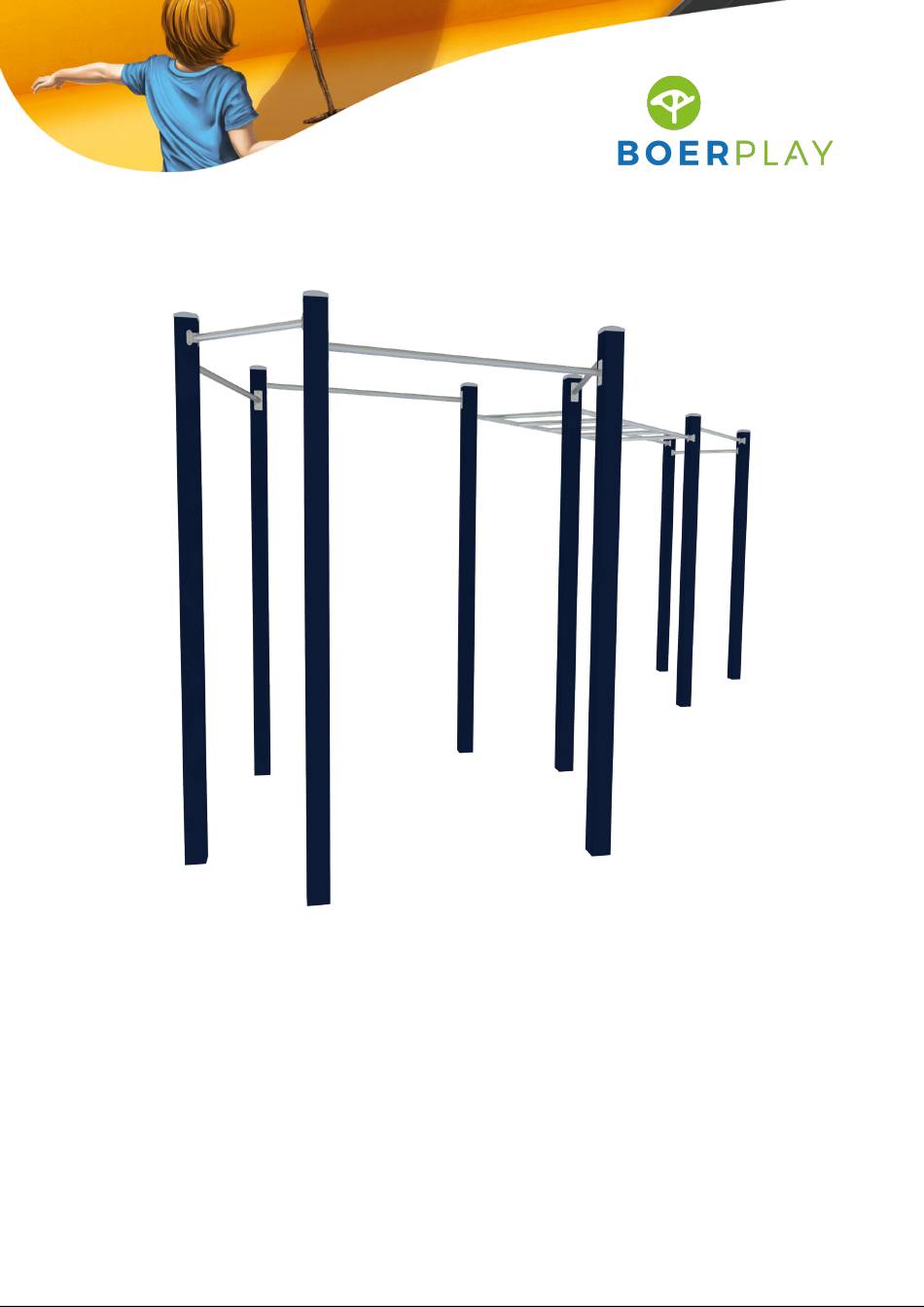

- Page 1 Combination Calisthenics FITE028.502...
- Page 2 6,54 m 2,62 m 2,62 m 2,56 m 2,52 m 2,46 m 2,42 m 0,00 m 0,00 m Benaming TOE FIT 028 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment Datum Hoofdafmetingen Main dimensions 14-11-2017 Date...
- Page 3 5,40 m 3,80 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE FIT 028 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment Datum Obstakelvrije zone Obstacle free zone 14-11-2017 Date...
- Page 4 1,50 m 1,20 m 1,20 m 2,40 m 1,60 m 1,50 m 0,25 m (10x) 0,80 m Benaming TOE FIT 028 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment Datum Bodemplan Groundplan 14-11-2017 Date...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Article number FITE028.502 Product Name Combination Calisthenics Maximum fall height 1,50 m Construction year 2023 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Lamellenstop Rond 6 Staander 3400 Zonder gaten Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD FIT 050 502 Staander 2600 Title Tekening...
- Page 11 A ( 1:4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 6,4 X 15 - RVS A2-70 Enterrek Benaming Enterrek MOD FIT 052 001 Title Tekening Opmerking Vast Drawing Comment Datum Samenstelling module Assembly module 10-3-2023 Date...
- Page 12 A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 6,4 X 15 - RVS A2-70 Stang h.o.h. 1600 Benaming Stang MOD FIT 053 001 Title Tekening Opmerking h.o.h. 1600 Drawing Comment Datum Samenstelling module Assembly module 10-3-2023 Date...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4.8 X 12 - RVS A2-70 Stang h.o.h. 800 Benaming MOD FIT 063 001 Stang Title Tekening Opmerking h.o.h. 800 Drawing Comment BOER Datum Samenstelling module Assembly module 21-12-2015 Date SPEELTOESTELLEN...
- Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 4.8 X 12 - RVS A2-70 Stang diagonaal Benaming MOD FIT 070 001 Stang Title Tekening Opmerking Diagonaal Drawing Comment Datum Samenstelling module Assembly module 14-11-2017 Date...
