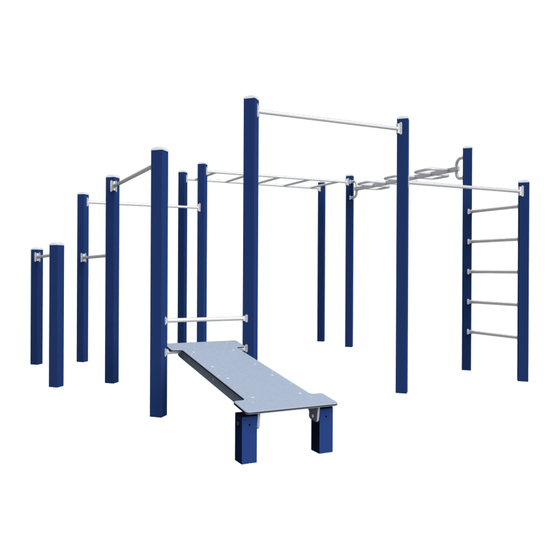

BOERPLAY Combination Calisthenics Manual

Hide thumbs Also See for Combination Calisthenics:

Advertisement

Quick Links

Download this manual
Combination Calisthenics
FITE015.502

Advertisement

loading
Need help?

Need help?

Do you have a question about the Combination Calisthenics and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Combination Calisthenics

Summary of Contents for BOERPLAY Combination Calisthenics

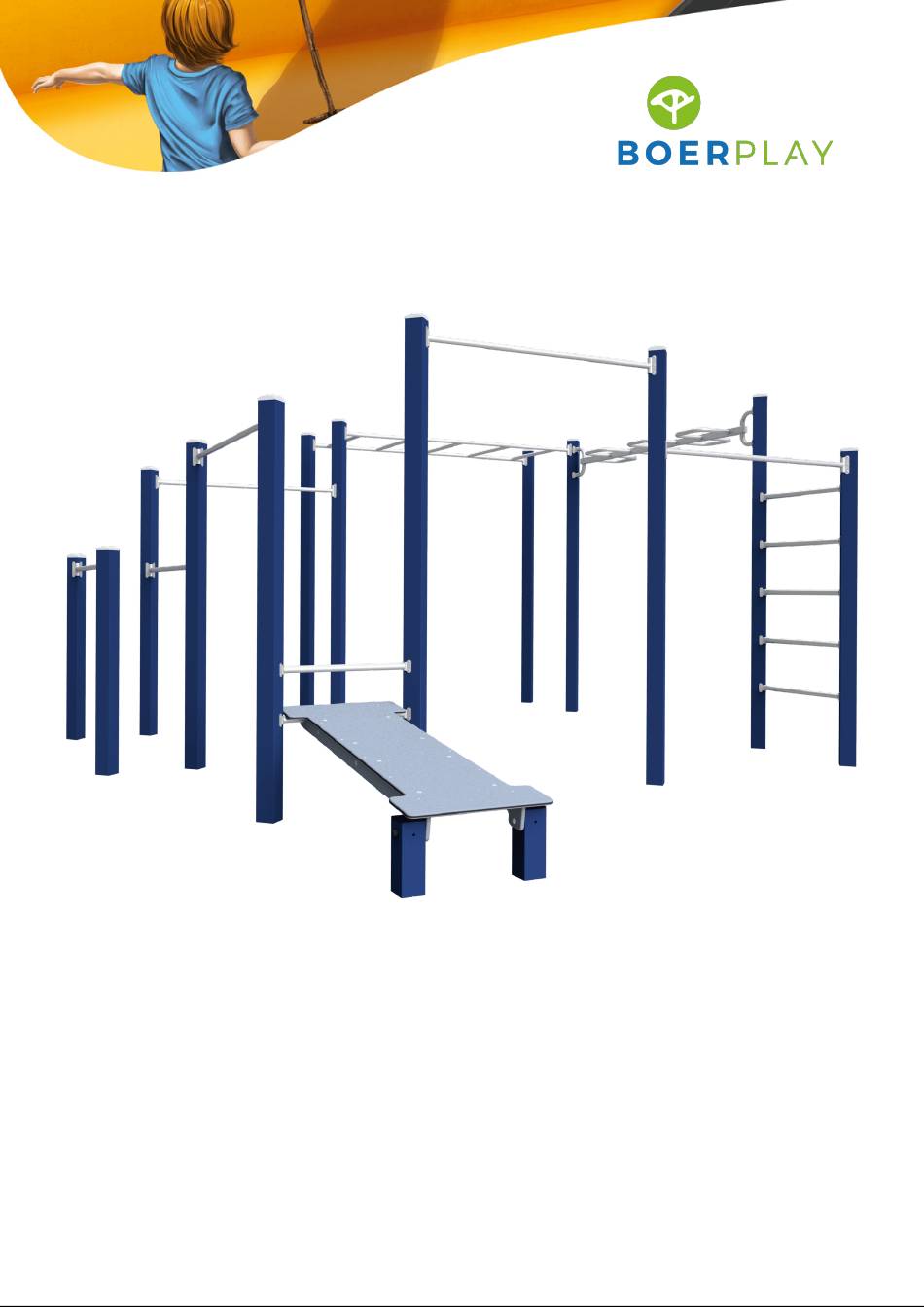

  • Page 1 Combination Calisthenics FITE015.502...
  • Page 2 4,87 m Benaming TOE FIT 015 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 5-1-2016 Date SPEELTOESTELLEN...
  • Page 3 8,45 m 7,00 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE FIT 015 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 5-1-2016 Date SPEELTOESTELLEN...
  • Page 4 1900 1600 1600 1500 0,25 m 0,80 m 0,60 m Benaming TOE FIT 015 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Bodemplan Groundplan 5-1-2016 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges - Other modules are dimensioned at the top (climbing walls, caps for the posts, etc.) - Overige modules zijn bemaat op de bovenkant (klimwanden, paalkappen, etc.)
  • Page 6 2534 2034 Benaming TOE FIT 015 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Afmetingen Dimensions 5-1-2016 Date SPEELTOESTELLEN...
  • Page 7 2534 2294 2034 1884 1534 1334 1184 Benaming TOE FIT 015 502 Combinatie Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Afmetingen Dimensions 5-1-2016 Date SPEELTOESTELLEN...
  • Page 8 LOGBOOK Type indication Article number FITE015.502 Product Name Combination Calisthenics Maximum fall height 1,5 m Construction year 2023 Certificate 0183402366 Inspection body Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
  • Page 10 Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
  • Page 13 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Lamellenstop Rond 6 Staander 3400 Zonder gaten Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD FIT 050 502 Staander 2600 Title Tekening...
  • Page 14 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 40 - RVS A2-70 Schroef Assy DOPMOER BORG RVS M10 4.8 X 12 - RVS A2-70 Klinknagel bolkop Verzonken bout M10 x 35 - RVS A2-70 SLUITRING Borgmoer M10 - VZ 8.8 ZESKANT MOER Zeskantbout ISO 4014 M10 x 120 - VZ 8.8...
  • Page 15 A ( 1:4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 6,4 X 15 - RVS A2-70 Enterrek Benaming Enterrek MOD FIT 052 001 Title Tekening Opmerking Vast Drawing Comment Datum Samenstelling module Assembly module 10-3-2023 Date...
  • Page 16 A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 6,4 X 15 - RVS A2-70 Stang h.o.h. 1600 Benaming Stang MOD FIT 053 001 Title Tekening Opmerking h.o.h. 1600 Drawing Comment Datum Samenstelling module Assembly module 10-3-2023 Date...
  • Page 17 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Lamellenstop Rond 6 Staander 2200 Zonder gaten Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD FIT 057 502 Staander 1400 Title Tekening...
  • Page 18 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4.8 X 12 - RVS A2-70 Stang h.o.h. 800 Benaming MOD FIT 063 001 Stang Title Tekening Opmerking h.o.h. 800 Drawing Comment BOER Datum Samenstelling module Assembly module 21-12-2015 Date SPEELTOESTELLEN...
  • Page 19 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4.8 X 12 - RVS A2-70 Slang Benaming MOD FIT 060 001 Slang Title Tekening Opmerking Drawing Comment BOER Datum Samenstelling module Assembly module 21-12-2015 Date SPEELTOESTELLEN...
  • Page 20 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Lamellenstop Rond 6 Staander 2900 Zonder gaten Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD FIT 062 502 Staander 2100 Title Tekening...

This manual is also suitable for:

Fite015.502
