BOERPLAY Fuel station Installation Instructions Manual

Hide thumbs Also See for Fuel station:

Advertisement

Quick Links

Download this manual
Fuel station
PSTE004.016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fuel station and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Fuel station

Summary of Contents for BOERPLAY Fuel station

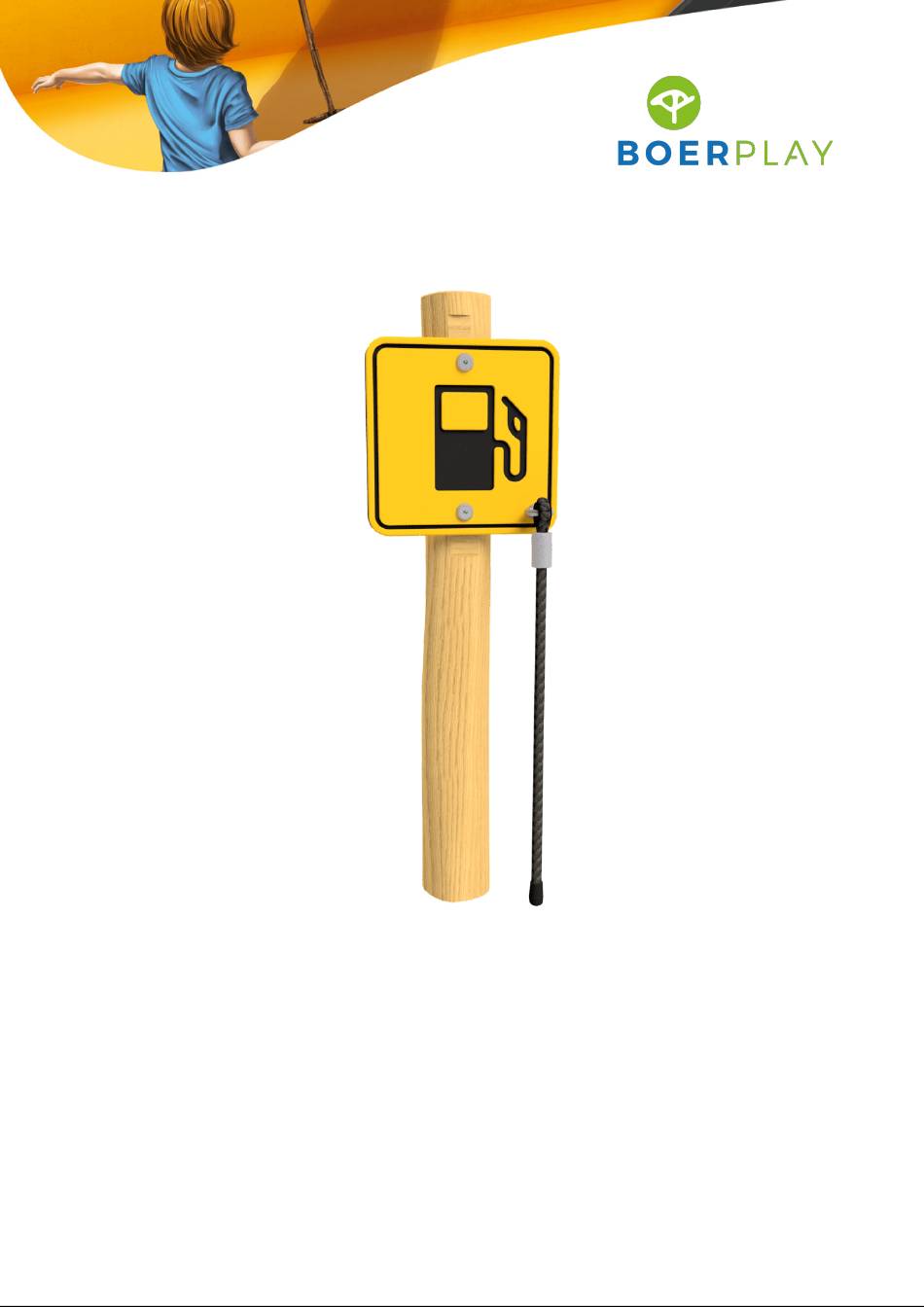

  • Page 1 Fuel station PSTE004.016...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,29 m © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 3,37 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois © Copyright BOERplay 11-1-2023 Revision: PST 004 016...

  • Page 6: Assembly Manual

    Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.213.x MOD.PST.764 MOD.PST.764 MOD.BBI.213.012 © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 TX-30 No. 17 No. 19 Ø5 mm Ø30 mm Ø13x400 mm © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 8 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.BBI.213.012 MOD.PST.764 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com © Copyright BOERplay 11-1-2023 Revision: PST 004 016...
  • Page 9 LOGBOOK Type indication Adventure Play Article number PSTE004.016 Product Name Fuel station Maximum fall height Construction year 2023 Certificate 067056 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 213 012 © Copyright BOERplay 10-1-2023 Revision:...
  • Page 15 OPE.BBI.867.012 SNT.BBI.020.090 Detail A (1x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 BSR.010.010.010 OPE.BBI.867.xxx KST.DON.010.060 BSR.030.010.002 SNT.BBI.020.xxx MOD BBI 213 012 © Copyright BOERplay 10-1-2023 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD PST 764 © Copyright BOERplay 19-1-2023 Revision:...
  • Page 17 OHO.PST.699 OHO.PST.211.030 Detail A (3x) 120 mm BSR.002.005.120 BSR.002.006.120 OHO.PST.211.030 OHO.PST.699 MOD PST 764 © Copyright BOERplay 19-1-2023 Revision:...
  • Page 18 Op de juiste lengte afzagen met een slijptol Auf die richtige Länge zuschneiden mit einer Winkelschleifer Cortar a la longitud correcta con un amoladora angular Couper à la bonne longueur avec une meuleuse d'angle BSR.010.010.010 BSR.030.010.002 BSR.036.010.028 KST.DOP.010.060 BSR.024.010.140 MOD PST 764 © Copyright BOERplay 19-1-2023 Revision:...
