Summary of Contents for BOERPLAY Monkey bars Calisthenics

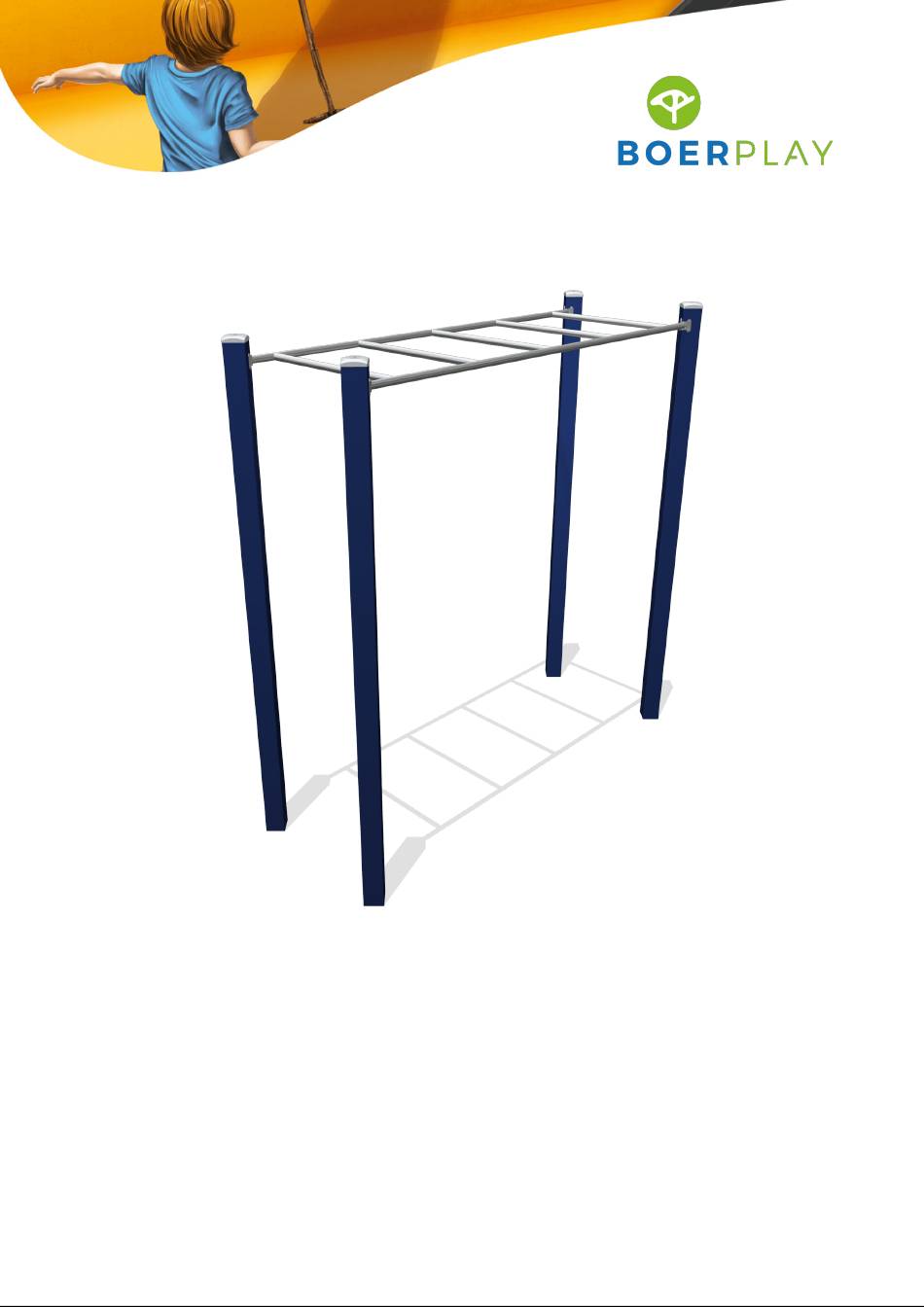

- Page 1 Monkey bars Calisthenics FITE003.502...
- Page 2 2,40 m Benaming TOE FIT 003 502 Enterrek Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 9-12-2015 Date SPEELTOESTELLEN...
- Page 3 3,80 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE FIT 003 502 Enterrek Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 9-12-2015 Date SPEELTOESTELLEN...
- Page 4 1,50 m 2,40 m 1,50 m 0,25 m 0,80 m Benaming TOE FIT 003 502 Enterrek Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Bodemplan Groundplan 9-12-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges - Other modules are dimensioned at the top (climbing walls, caps for the posts, etc.) - Overige modules zijn bemaat op de bovenkant (klimwanden, paalkappen, etc.)
- Page 6 2534 Benaming TOE FIT 003 502 Enterrek Title Tekening Opmerking Calisthenics Drawing Comment BOER Datum Afmetingen Dimensions 9-12-2015 Date SPEELTOESTELLEN...
- Page 7 LOGBOOK Type indication Article number FITE003.502 Product Name Monkey bars Calisthenics Maximum fall height 1,5 m Construction year 2023 Certificate 0183402366 Inspection body Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 11 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 12 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Lamellenstop Rond 6 Staander 3400 Zonder gaten Paalkap 100x100 Aluminium Voetplaat 100 x 100 Benaming MOD FIT 050 502 Staander 2600 Title Tekening...
- Page 13 A ( 1:4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 6,4 X 15 - RVS A2-70 Enterrek Benaming Enterrek MOD FIT 052 001 Title Tekening Opmerking Vast Drawing Comment Datum Samenstelling module Assembly module 10-3-2023 Date...
