BOERPLAY PSTE110.055 Manual

Multi-play equipment
Hide thumbs

Advertisement

Quick Links

Download this manual
Multi-play equipment
PSTE110.055

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE110.055 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY PSTE110.055

Summary of Contents for BOERPLAY PSTE110.055

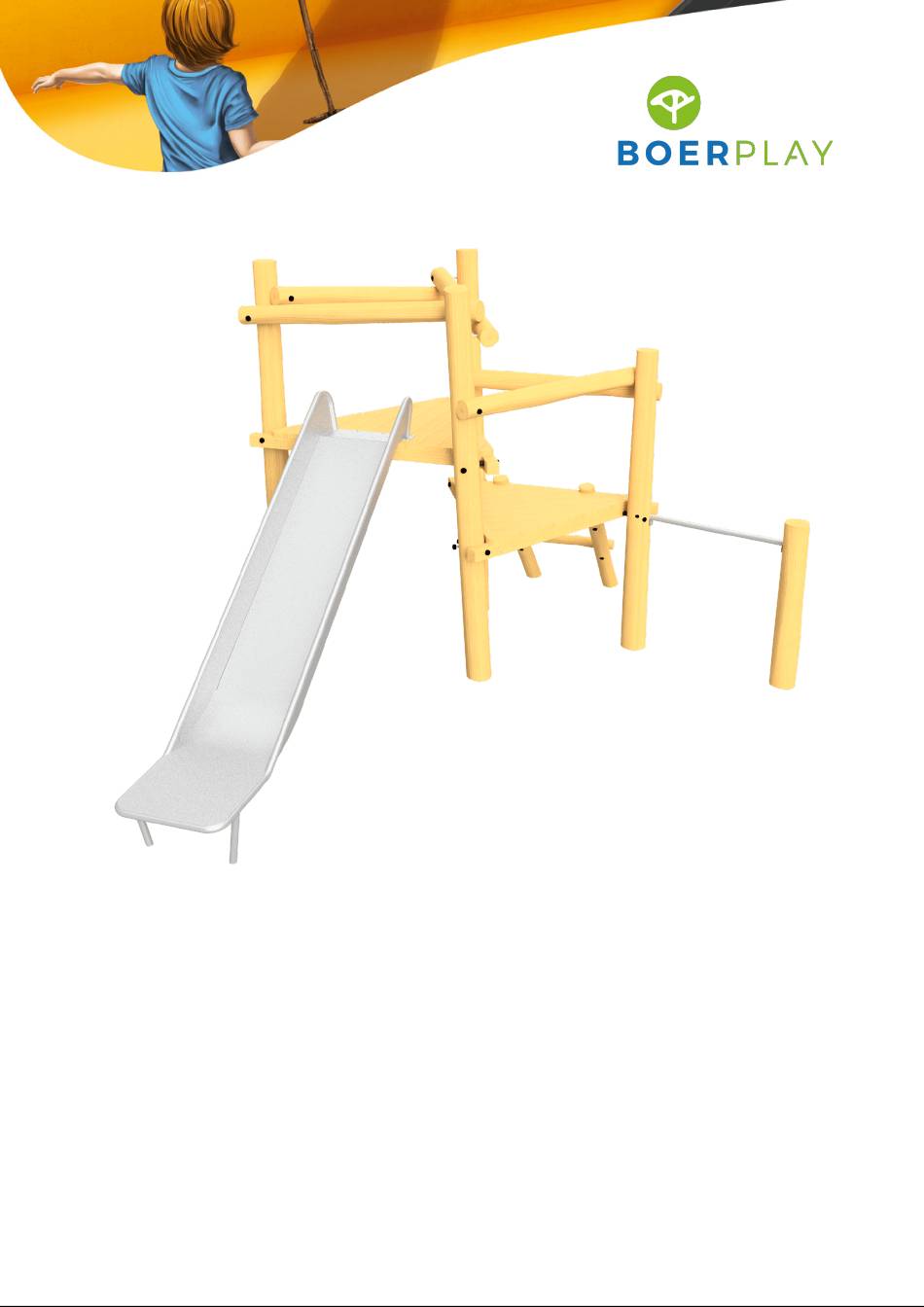

  • Page 1 Multi-play equipment PSTE110.055...

  • Page 2: Main Dimensions

    Dimensions principales 3,39 m 2,09 m 1,98 m 1,42 m 0,95 m 0,53 m 0,00 m 2,40 m 1,90 m 1,45 m 1,02 m 0,95 m 0,00 m < 0,35 m PST 110 055 © Copyright BOERplay 12-10-2022 Revision: B...
  • Page 3 - Specific Law (NL) Obstakelvrije zone - Specifieke wet (NL: WAS) Hindernissfreie raum - Spezifisches Recht (NL) Zona libre de obstáculos - Ley especifica (NL) Zone libre d'obstacles - Loi spécifique (NL) PST 110 055 © Copyright BOERplay 12-10-2022 Revision: B...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 3,82 m 2,97 m 0,70 m 0,44 m 1,42 m 1,99 m 0,68 m 0,25 m 1,44 m Grondmarkering Ground level marker PST 110 055 © Copyright BOERplay 12-10-2022 Revision: B...

  • Page 5: Order Of Assembly

    Staander 2,6 m Staander 3,1 m Railing L = 1,3 m L = 1,4 m Railing Railing Railing Duikel Rek H=900 Ladder 0,95 m Glijbaan 145 - 150 cm Module Robina PST 110 055 © Copyright BOERplay 12-10-2022 Revision: B...
  • Page 6 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage < 0,85 m > 0,60 m > 0,60 m < 0,85 m A ( 1 : 8 ) < 40 mm PST 110 055 © Copyright BOERplay 12-10-2022 Revision: B...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.055 Product Name Multi-play equipment Maximum fall height 1,5 m Construction year 2023 Certificate 058738 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide SLUITRING facing south 145 cm...
  • Page 13 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Afstandsbus 30x30x14 Vloer 1,45 MAP 01 002 © Copyright BOERplay 14-2-2023 Revision:...
  • Page 14 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Pasvloer 0,59 en 0,95 vloer MAP 01 004 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 15 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte = 2600 MAP 04 260 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte = 3100 m MAP 04 310 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 18 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1300 MAP 05 130 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 19 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1400 MAP 05 140 © Copyright BOERplay 9-8-2022 Revision:...
  • Page 20 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1500 MAP 05 150 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 21 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1600 MAP 05 160 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 22 5 x 70 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Facet ring M5 - RVS A2-70 Paal 14-16 Lengte =1700 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play MAP 08 090 © Copyright BOERplay 12-10-2022 Revision:...
  • Page 23 M12, L= 160, RVS A2-70 M12, L= 200, RVS A2-70 Draadeind+borgm.+ringen+dop 5 x 70 - RVS A2-70 Schroef Assy Paal 6 Lengte =700 Paal 10-12 Lengte =2200 Standaard plank 120x20 Lengte = 800 MAP 17 095 © Copyright BOERplay 4-8-2022 Revision:...
