BOERPLAY PSTE110.003 Manual

Multi-play equipment
Hide thumbs Also See for PSTE110.003:

Advertisement

Quick Links

Download this manual
Multi-play equipment
PSTE110.003

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE110.003 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY PSTE110.003

Summary of Contents for BOERPLAY PSTE110.003

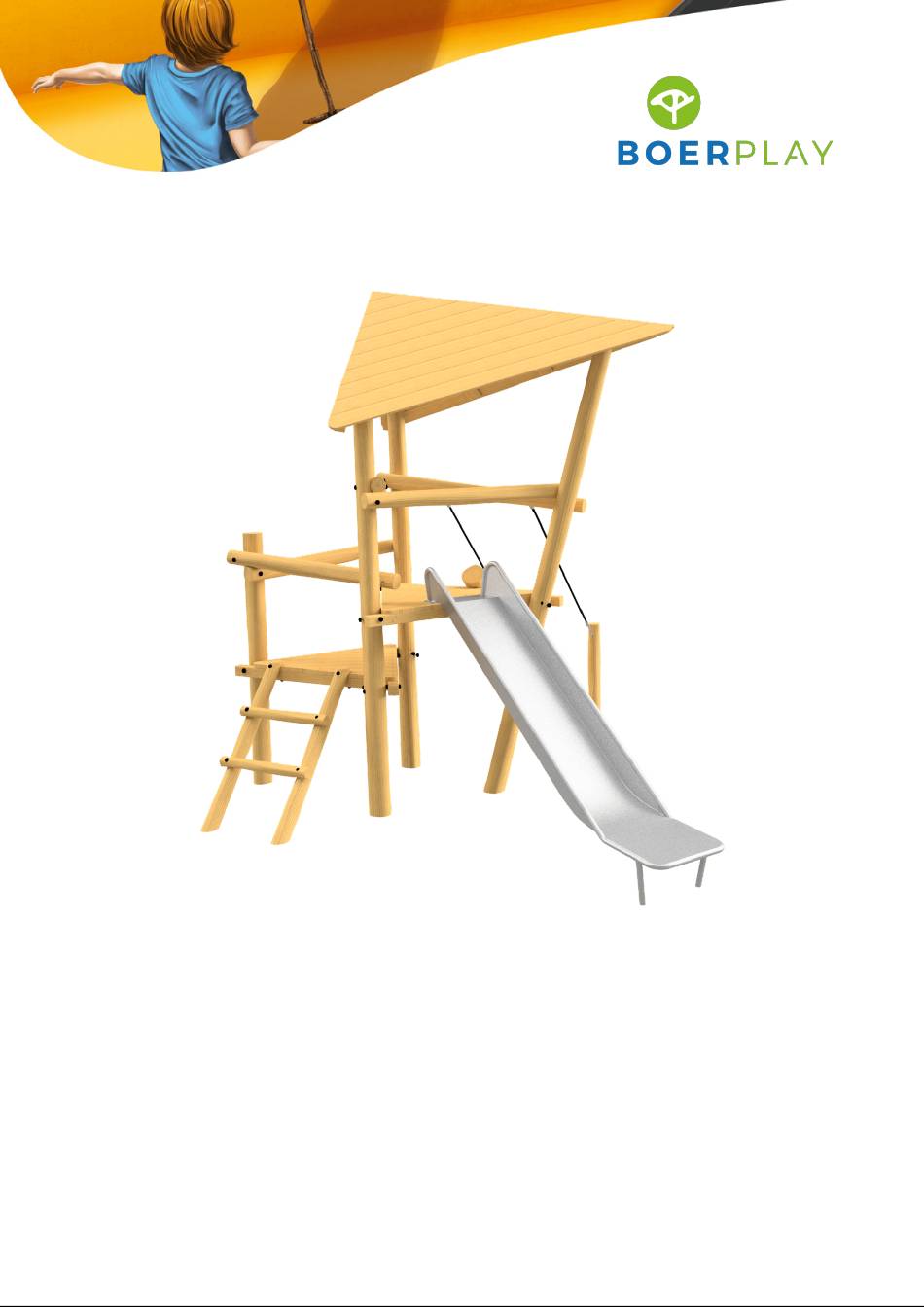

  • Page 1 Multi-play equipment PSTE110.003...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,37 m 1,70 m 4,31 m 3,61 m 1,90 m 1,45 m 0,95 m 0,70 m 0,41 m 0,00 m < 0,35 m PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 6,90 m 6,40 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,88 m 1,73 m 2,15 m 1,99 m Grondmarkering Ground level marker 0,61 m 0,70 m PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...

  • Page 5: Order Of Assembly

    Staander 2,6 m Staander 3,5 m Staander 4,0 m Railing L = 1,4 m Railing Railing Railing Boomtrap 1,45m Adventure Play Ladder 0,95 m Glijbaan 145 - 150 cm Module Robina PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...
  • Page 6 1 - Correcte opbouw en alle bevestigingsmiddelen 2 - Check the dimensions of the safety area with regard to the play equipment 2 - Controleer de afmetingen van de valbodem t.o.v. het toestel Typeplaatje Identification plate PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...
  • Page 7 PST 110 003 © Copyright BOERplay 11-11-2022 Revision: A...
  • Page 8 LOGBOOK Type indication Adventure Play Article number PSTE110.003 Product Name Multi-play equipment Maximum fall height 1,5 m Construction year 2023 Certificate 033229 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 13 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 SLUITRING DAKHELFTBEUGELTJE Dakje toren Adventure Play © Copyright BOERplay 19-8-2022 Revision: MAP 00 003...
  • Page 14 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Afstandsbus 30x30x14 Vloer 1,45 MAP 01 002 © Copyright BOERplay 14-2-2023 Revision:...
  • Page 15 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Pasvloer 0,59 en 0,95 vloer MAP 01 004 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 16 Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide SLUITRING facing south 145 cm...
  • Page 17 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 18 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte = 2600 MAP 04 260 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte = 3500 m MAP 04 350 © Copyright BOERplay 11-11-2022 Revision:...
  • Page 20 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 4,0 m MAP 04 400 © Copyright BOERplay 5-8-2022 Revision:...
  • Page 21 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1400 MAP 05 140 © Copyright BOERplay 9-8-2022 Revision:...
  • Page 22 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1500 MAP 05 150 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 23 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1600 MAP 05 160 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 24 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Lengte =1700 Paal 10-12 MAP 05 170 © Copyright BOERplay 10-11-2022 Revision:...
  • Page 25 Dop zwart RING KUNSTSTOF Paal 10-12 Lengte =900 Paal 10-12 Lengte =1600 Lengte = 500 Standaard plank 120x20 Begin Boomtrap 3mtr Adventure play Slotbout met lip M12x150 Slotbout met lip M12x090 Touw 1,9m MAP 16 145 © Copyright BOERplay 11-11-2022 Revision:...
  • Page 26 M12, L= 160, RVS A2-70 M12, L= 200, RVS A2-70 Draadeind+borgm.+ringen+dop 5 x 70 - RVS A2-70 Schroef Assy Paal 6 Lengte =700 Paal 10-12 Lengte =2200 Standaard plank 120x20 Lengte = 800 MAP 17 095 © Copyright BOERplay 4-8-2022 Revision:...
