Summary of Contents for BOERPLAY Playhouse with hill slide H1.0

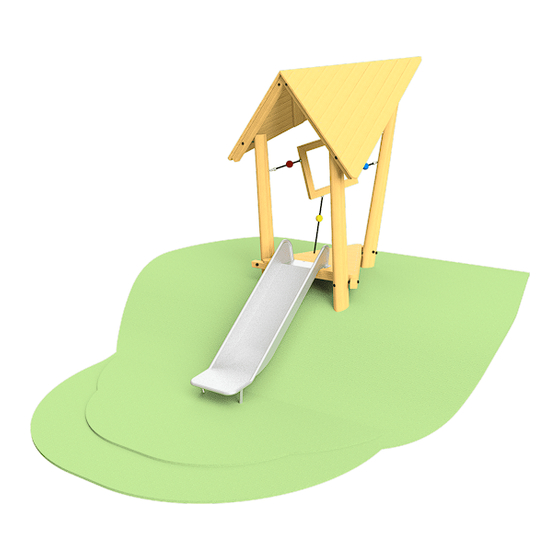

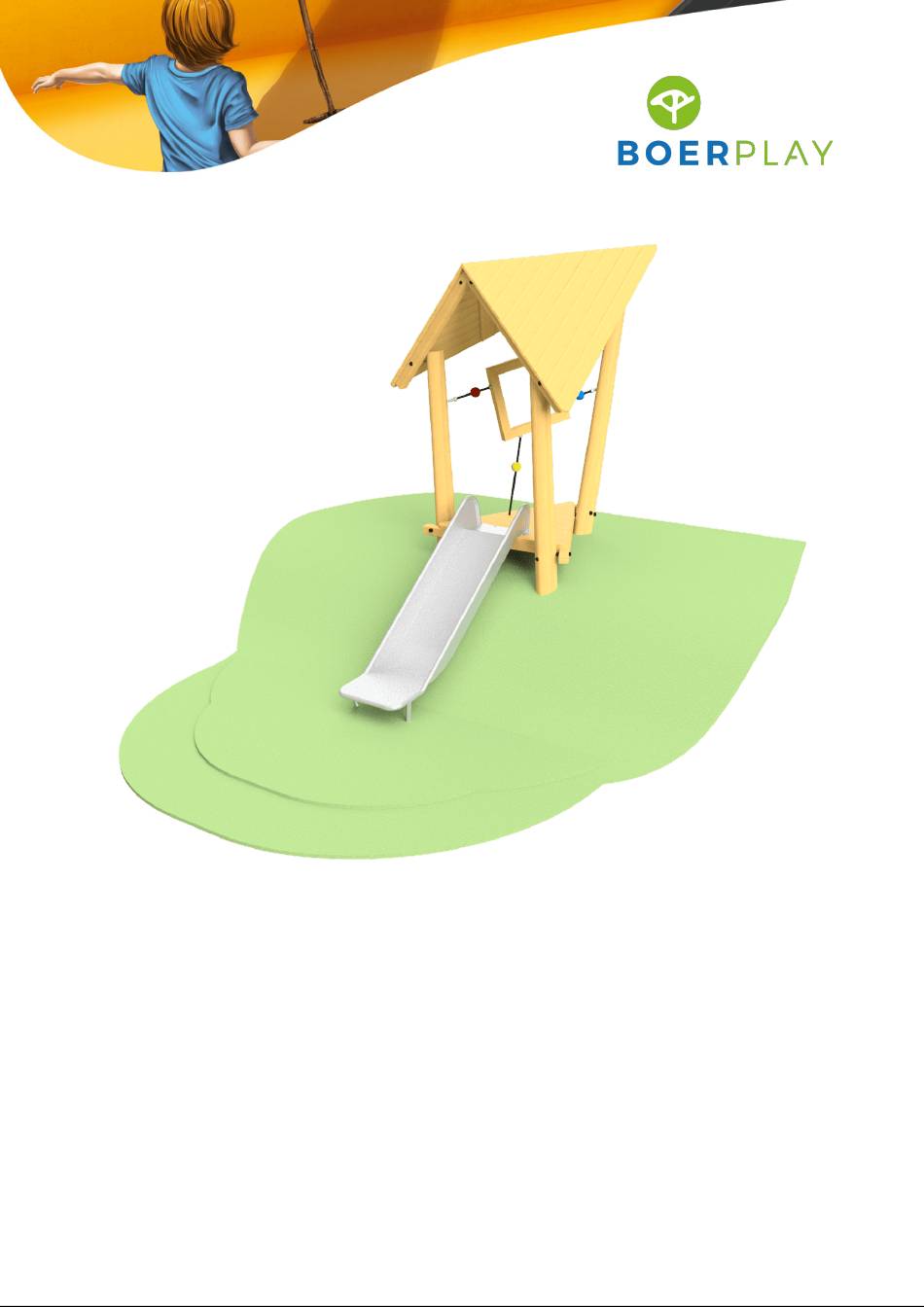

- Page 1 Playhouse with hill slide H1.0 PSTE110.053...
- Page 2 0,00 m 0,96 m 1,49 m 2,98 m 0,95 m 0,00 m <0,20 m PST 110 053 © Copyright BOERplay 16-3-2023 Revision: A...
- Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,65 m 3,43 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 053 © Copyright BOERplay 16-3-2023 Revision: A...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,60 m 1,40 m 2,83 m 0,25 m 1,15 m Grondmarkering Ground level marker Grondmarkering 0,72 m Ground level marker 1,31 m PST 110 053 © Copyright BOERplay 16-3-2023 Revision: A...
-
Page 5: Order Of Assembly
Bew. Rev. Benaming Opmerking Driehoek dak Driehoeksvloer 0,59 en 0,95 Grond frame 1,45 Staander 2,3 m Staander 3,0 m Speelraam paal 70 x 70 x 500 Glijbaan 1 m Module Robina PST 110 053 © Copyright BOERplay 16-3-2023 Revision: A... - Page 6 PST 110 053 © Copyright BOERplay 16-3-2023 Revision: A...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.053 Product Name Playhouse with hill slide H1.0 Maximum fall height Information about the owner of the playground Name: _______________________________________________________ Address: _______________________________________________________ Zipcode and city: _______________________________________________________ Contact: _______________________________________________________ Phone number: _______________________________________________________ Information about the manager of the playground...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 SLUITRING DAKHELFTBEUGELTJE Dakje toren Adventure Play © Copyright BOERplay 19-8-2022 Revision: MAP 00 003...
- Page 13 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Driehoeksvloer 0,59 en 0,95 MAP 01 001 © Copyright BOERplay 14-2-2023 Revision:...
- Page 14 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
- Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte = 2,3 m MAP 04 230 © Copyright BOERplay 17-8-2022 Revision:...
- Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte 3,0 m MAP 04 300 © Copyright BOERplay 11-8-2022 Revision:...
- Page 17 Pin-Torx - VZ 8.8 Veiligheidsschroef Telbol Blauw Telbol Rood Telbol Geel Bus RVS schroefdraad touw d16 0,7 meter touw zwart 0,4 meter touw zwart zwart 0,5 meter touw zwart 0,3 meter touw Winkelraam SHO Venster MAP 06 011 © Copyright BOERplay 23-1-2023 Revision:...
- Page 18 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Ø 22 x 50 Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer MAP 06 011 © Copyright BOERplay 23-1-2023 Revision:...
- Page 19 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 70 mm Vierkante paal 500 mm Lengte MAP 35 005 © Copyright BOERplay 23-1-2023 Revision:...
- Page 20 © Copyright BOERplay Revision:...
- Page 21 1,72 m Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide CARROSSERIERING M10 x 30 x 2,5...
