BOERPLAY PSTE110.026 Manual

Play tower 2m
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Play tower 2m
PSTE110.026

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE110.026 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY PSTE110.026

Summary of Contents for BOERPLAY PSTE110.026

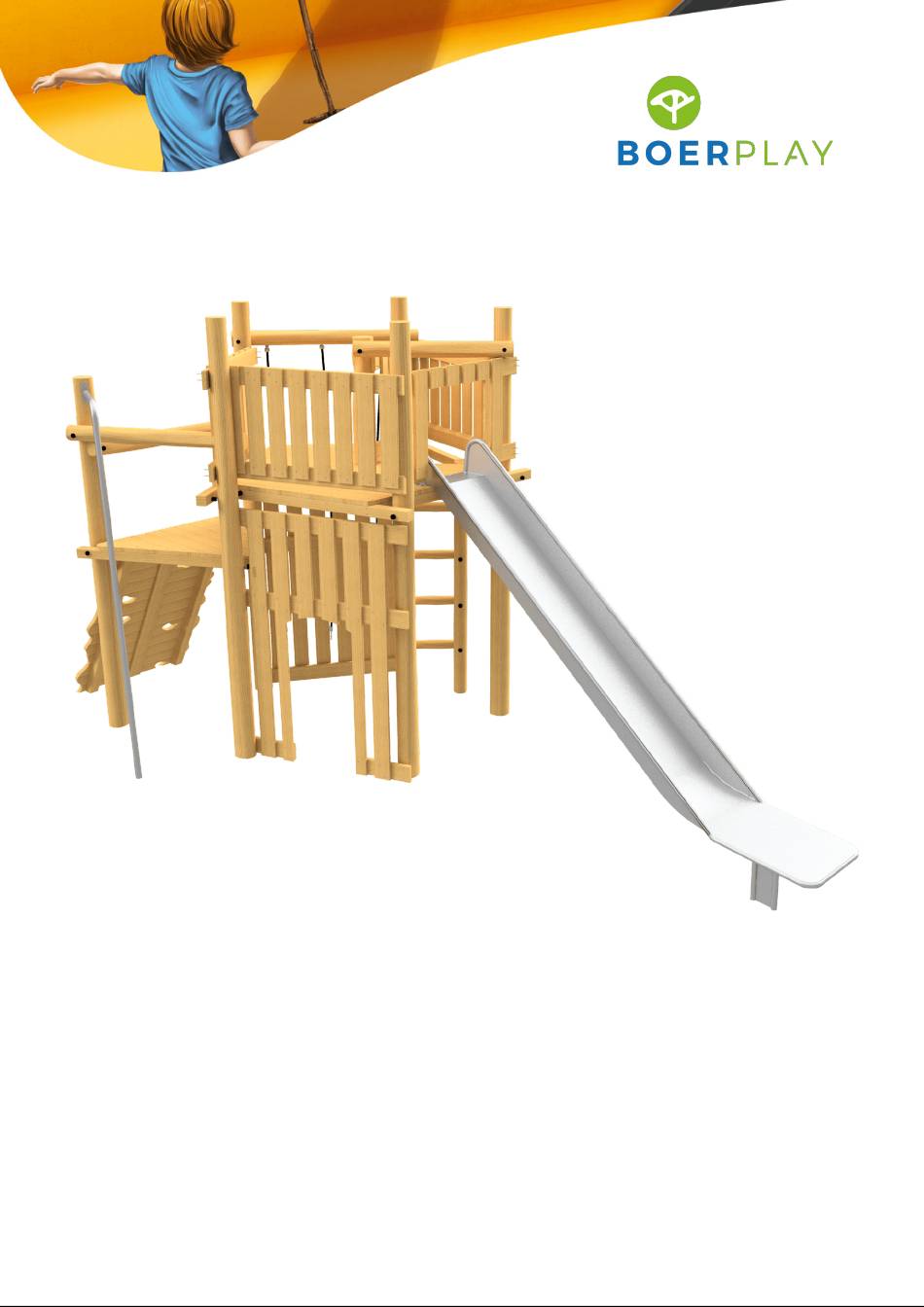

  • Page 1 Play tower 2m PSTE110.026...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 5,21 m 4,67 m 3,71 m 2,54 m 1,83 m 0,00 m 3050 1950 1450 < 0,35 m PST 110 026 © Copyright BOERplay 7-10-2022 Revision: B...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 8,53 m 8,03 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 026 © Copyright BOERplay 7-10-2022 Revision: B...
  • Page 4 Plan de surface 2,06 m 2,40 m 1,19 m 0,73 m 1,12 m 1,07 m 0,35 m 0,23 m 0,61 m Grondmarkering Ground level marker 0,61 m 0,52 m 0,70 m PST 110 026 © Copyright BOERplay 7-10-2022 Revision: B...

  • Page 5: Order Of Assembly

    Poort 1,95 m Wand 1,95 m L = 1,1 m Railing Klimwand 1,45 m vloer Klimtouw trio Schorsgeschikt Glijbaan 195 cm Module Robina Glijpaal 3,2 m Adventure Play Ladder1,95 m Adventure Play PST 110 026 © Copyright BOERplay 7-10-2022 Revision: B...
  • Page 6 Wandje 0,70 m Adventure Play Poort 1,95 m Wand 1,95 m L = 1,1 m Railing Klimwand 1,45 m vloer Klimtouw trio Schorsgeschikt Glijbaan 195 cm Module Robina Glijpaal 3,2 m Adventure Play Ladder1,95 m Adventure Play © Copyright BOERplay Revision:...
  • Page 7 3,75 m 3,27 m 2,50 m 2,15 m 0,70 m 0,00 m 3,75 m 2,50 m 2,15 m 0,70 m 0,00 m PST 110 026 © Copyright BOERplay 7-10-2022 Revision: B...
  • Page 8 LOGBOOK Type indication Adventure Play Article number PSTE110.026 Product Name Play tower 2m Maximum fall height 2,0 m Construction year 2023 Certificate 033805 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 13 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Pasvloer 0,59 en 0,95 vloer MAP 01 004 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 14 A ( 1 : 5 ) Afstand van de glijstang naar: - vloer: tussen 350 en 500mm - railing: groter dan 250mm - overige toesteldelen: groter dan 500mm Distance from the fireman's pole to: - floor: between 350 and 500mm - railing: more than 250mm - other parts of the equipment: more than 500mm Type...
  • Page 15 A ( 1:10 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Schroef Assy 6 x 120 - RVS A2-70 30x30x14 Afstandsbus Paal 14-16 Lengte =900 Grote vloer frame met mangat Alle afmetingen in mm Benaming Artikel nr.
  • Page 16 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte = 3300 m MAP 04 330 © Copyright BOERplay 19-8-2022 Revision:...
  • Page 18 3,18 m Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide SLUITRING facing south...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 3,75 MAP 04 380 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 20 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1300 MAP 05 130 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 21 Opening tussen plank en paal altijd kleiner dan 89 mm. Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje recht Adventure Play MAP 06 001 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 22 Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje opening <0,50 m Adventure Play MAP 06 002 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 23 Opening tussen plank en paal altijd kleiner dan 89 mm. Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje recht Adventure Play MAP 06 008 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 24 Manual de ensamblado - módulo Manuel de montage - module A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Kasteel Wandje 5 MAP 06 009 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 25 Manual de ensamblado - módulo Manuel de montage - module A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Kasteel Wandje 5 MAP 06 010 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 26 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1100 MAP 07 110 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 27 Schroef Assy 5 x 50 - RVS A2-70 Houtdraadbout ø10 X 50 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPLOOP BEUGEL LINKS OPLOOP BEUGEL RECHTS Klimwand 1,5m Adventure Play MAP 20 145 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 28 M6 x 40 - VZ 8.8 Veiligheidsschroef Pin-Torx - VZ 8.8 CARROSSERIERING M6 x 20 - VZ 8.8 Paal 10-12 Lengte =1400 Standaard plank 120x20 Lengte = 1200 Bus RVS schroefdraad touw d16 Klimtouwen Adventure Play MAP 33 195 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 29 Openings always > 230 mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Paal 6 Lengte =500 Paal 10-12 Lengte =2700 MOD PST 757 001 © Copyright BOERplay 7-10-2022 Revision:...
