BOERPLAY PSTE110.079 Manual

Multi-play equipment
Hide thumbs

Advertisement

Quick Links

Download this manual
Multi-play equipment
PSTE110.079

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE110.079 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY PSTE110.079

Summary of Contents for BOERPLAY PSTE110.079

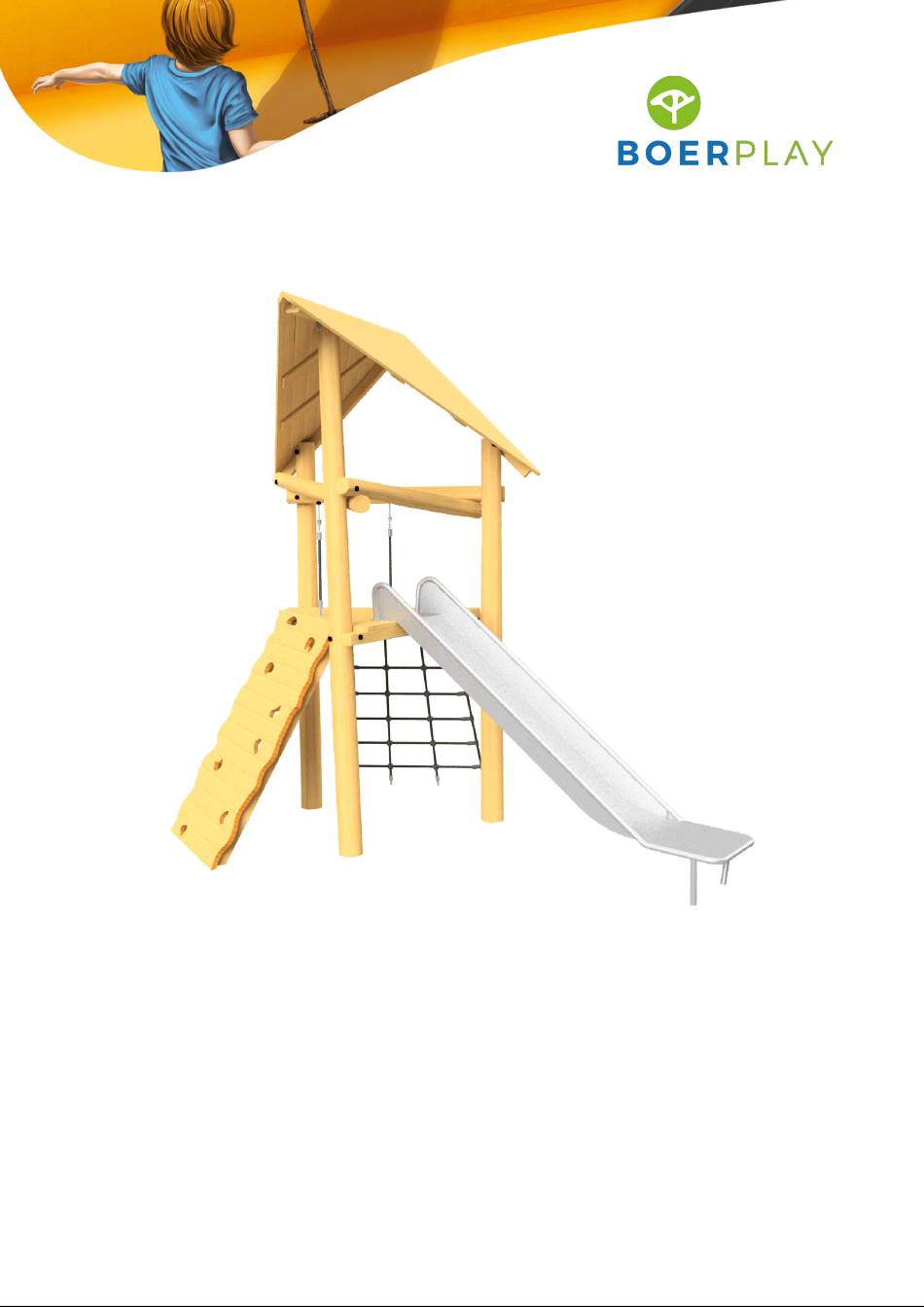

  • Page 1 Multi-play equipment PSTE110.079...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 2,80 m 3,33 m 1,45 m 0,00 m < 0,35 m © Copyright BOERplay 19-9-2022 Revision: PST 110 079...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 6,20 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles © Copyright BOERplay 19-9-2022 Revision: PST 110 079...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,94 m 0,78 m 0,92 m 1,11 m 1,26 m 0,80 m 0,51 m Grondmarkering Ground level marker 0,72 m 0,61 m © Copyright BOERplay 19-9-2022 Revision: PST 110 079...

  • Page 5: Order Of Assembly

    Benaming Opmerking Driehoek dak Vloer 1,45 Grond frame 1,45 Staander 3,3 m Staander 4,0 m Railing Klimwand 1,45 m vloer Driehoek opklimnet 1,45 m Handtouw Glijbaan 145 - 150 cm Module Robina © Copyright BOERplay 19-9-2022 Revision: PST 110 079...
  • Page 6 4,03 m 2,15 m 0,70 m 0,00 m © Copyright BOERplay 19-9-2022 Revision: PST 110 079...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.079 Product Name Multi-play equipment Maximum fall height 1,5 m Construction year 2024 Certificate 069613 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 SLUITRING DAKHELFTBEUGELTJE Dakje toren Adventure Play © Copyright BOERplay 19-8-2022 Revision: MAP 00 003...
  • Page 13 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Afstandsbus 30x30x14 Vloer 1,45 MAP 01 002 © Copyright BOERplay 14-2-2023 Revision:...
  • Page 14 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte = 3300 m MAP 04 330 © Copyright BOERplay 19-8-2022 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 4,0 m MAP 04 400 © Copyright BOERplay 5-8-2022 Revision:...
  • Page 17 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1500 MAP 05 150 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 18 Schroef Assy 5 x 50 - RVS A2-70 Houtdraadbout ø10 X 50 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPLOOP BEUGEL LINKS OPLOOP BEUGEL RECHTS Klimwand 1,5m Adventure Play MAP 20 145 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 19 M6 x 40 - VZ 8.8 Pin-Torx - VZ 8.8 Veiligheidsschroef CARROSSERIERING M6 x 20 - VZ 8.8 Standaard plank 120x20 Lengte = 1600 Bus RVS schroefdraad touw d16 Zwart Oploopnet 1,45m MAP 24 145 © Copyright BOERplay 5-7-2022 Revision:...
  • Page 20 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Dop zwart Beschermdop M10-M12 RING KUNSTSTOF Slotbout met lip M12x120 Hercules touw Ø16 Zwart L = 500 mm Benaming MAP 29 050 Handtouw Title Tekening Opmerking...
  • Page 21 Let op: toestel bij voorkeur niet met de glijbaan op het zuiden plaatsen. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - RVS A2-70 Attention: it is advisable not to oriënt Slotbout M10 x 50 - RVS A2-70 playground equipment with the slide SLUITRING facing south 145 cm...
