BOERPLAY PSTE110.009 Manual

Climbing tower 2m
Hide thumbs

Advertisement

Quick Links

Download this manual
Climbing tower 2m
PSTE110.009

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSTE110.009 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY PSTE110.009

Summary of Contents for BOERPLAY PSTE110.009

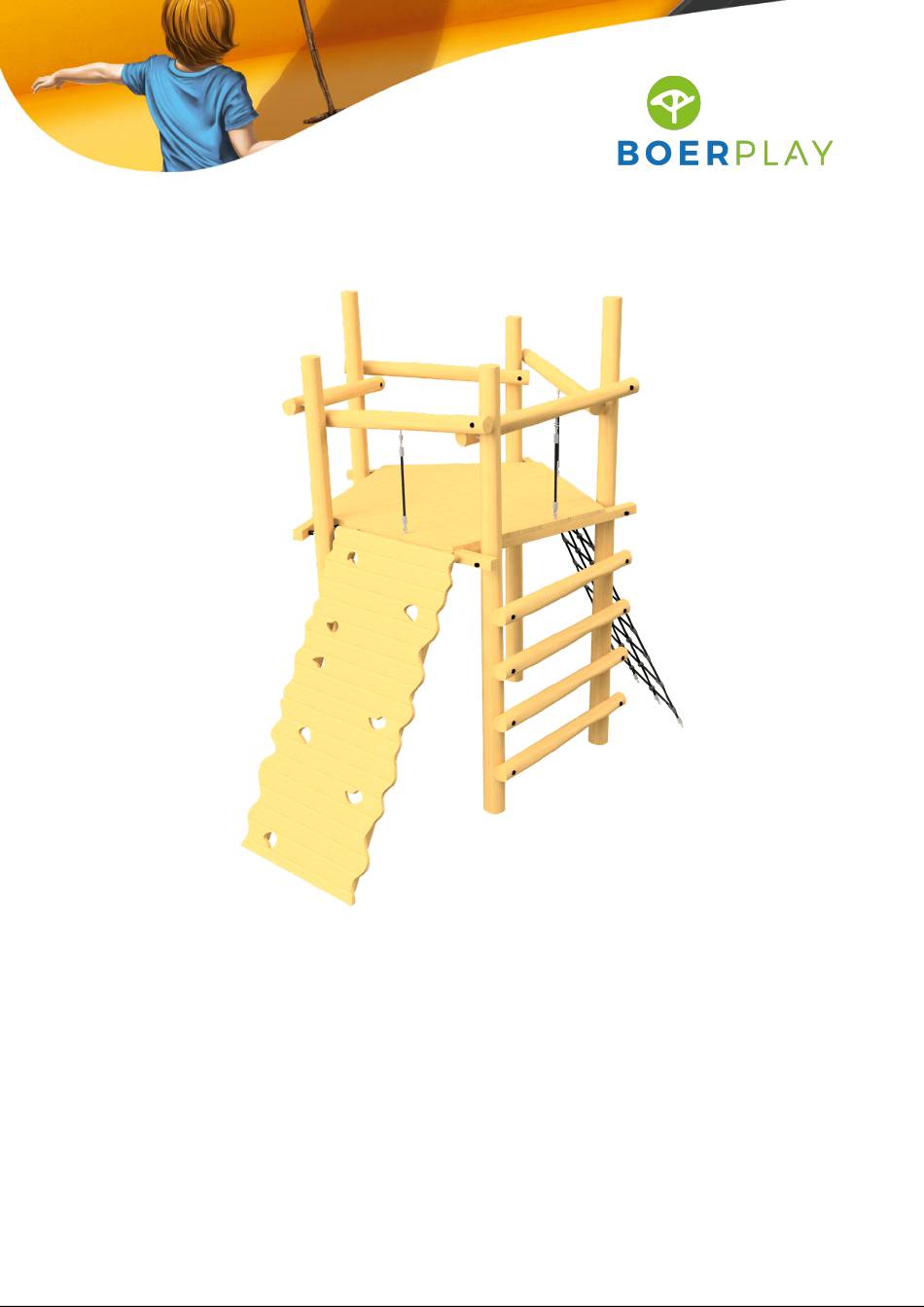

  • Page 1 Climbing tower 2m PSTE110.009...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,14 m 0,62 m 1,06 m 1,84 m 2,15 m 2,45 m 3,30 m 3,05 m 1,95 m 0,00 m PST 110 009 © Copyright BOERplay 15-8-2022 Revision: A...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 5,8 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 009 © Copyright BOERplay 15-8-2022 Revision: A...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 3,77 m 3,53 m 2,22 m 1,99 m 0,79 m 2,17 m 0,72 m Grondmarkering Ground level marker PST 110 009 © Copyright BOERplay 15-8-2022 Revision: A...

  • Page 5: Order Of Assembly

    Opmerking Vijfhoeksvloer 1,95 m Grond frame 1,45 Staander 3,75 m Staander 4,0 m L = 1,4 m Railing Klimbalk L = 1,4 m Klimwand 1,95m Driehoek opklimnet 1,95 m vloer Handtouw PST 110 009 © Copyright BOERplay 15-8-2022 Revision: A...
  • Page 6 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage 4,00 m 3,75 m 2,21 m 1,83 m 1,45 m 1,07 m Grondmarkering Ground level marker 0,00 m PST 110 009 © Copyright BOERplay 15-8-2022 Revision: A...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.009 Product Name Climbing tower 2m Maximum fall height 2,0 m Construction year 2023 Certificate 035175 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 Manual de ensamblado - módulo Manuel de montage - module A ( 1 : 8 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M12, L= 240, RVS A2-70 Draadeind+borgm.+ringen+dop Afstandsbus 30x30x14 Grote vloer Adventure Play MAP 01 006 © Copyright BOERplay 10-8-2022 Revision:...
  • Page 13 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 3,75 MAP 04 380 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 4,0 m MAP 04 400 © Copyright BOERplay 5-8-2022 Revision:...
  • Page 16 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1400 MAP 05 140 © Copyright BOERplay 9-8-2022 Revision:...
  • Page 17 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1400 MAP 07 140 © Copyright BOERplay 5-8-2022 Revision:...
  • Page 18 Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Houtdraadbout ø10 X 50 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPLOOP BEUGEL LINKS OPLOOP BEUGEL RECHTS Klimwand 1,95m MAP 20 195 © Copyright BOERplay 15-8-2022 Revision:...
  • Page 19 Zeskantbout M6 x 40 - VZ 8.8 Pin-Torx - VZ 8.8 Veiligheidsschroef CARROSSERIERING M6 x 20 - VZ 8.8 Standaard plank 120x20 Lengte = 1500 Bus RVS schroefdraad touw d16 Oploopnet 1,95m MAP 24 195 © Copyright BOERplay 9-8-2022 Revision:...
  • Page 20 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Dop zwart Beschermdop M10-M12 RING KUNSTSTOF Slotbout met lip M12x120 Hercules touw Ø16 Zwart L = 500 mm Benaming MAP 29 050 Handtouw Title Tekening Opmerking...
