BOERPLAY Playhouse Alpen Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Playhouse Alpen
PSTE110.006

Advertisement

loading
Need help?

Need help?

Do you have a question about the Playhouse Alpen and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Playhouse Alpen

Summary of Contents for BOERPLAY Playhouse Alpen

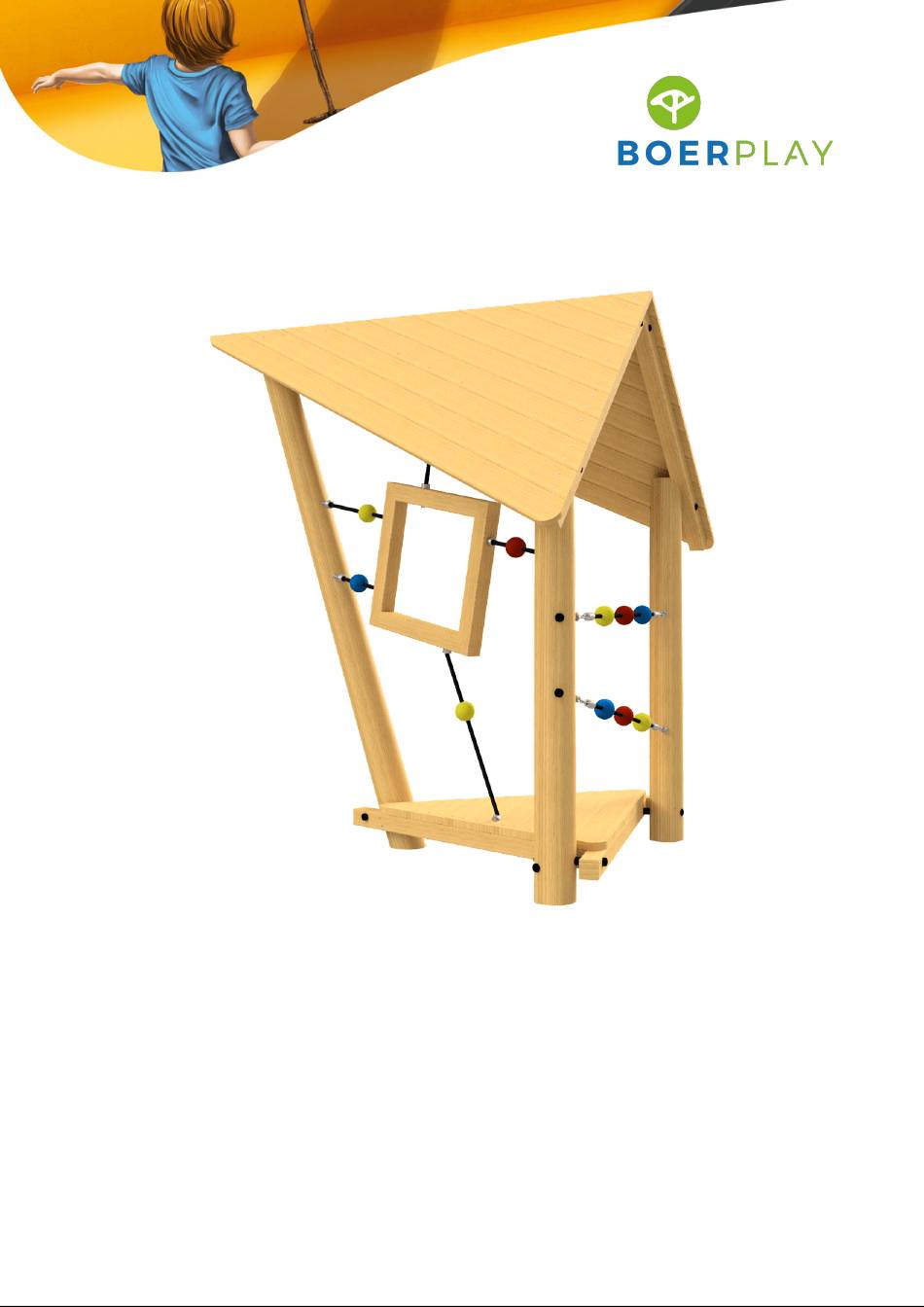

  • Page 1 Playhouse Alpen PSTE110.006...
  • Page 2 0,00 m 0,18 m 0,64 m 1,59 m 1,94 m 0,00 m 0,10 m 0,68 m 2,08 m 2,28 m PST 110 006 © Copyright BOERplay 20-6-2023 Revision: B...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,65 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 006 © Copyright BOERplay 20-6-2023 Revision: B...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 1,64 m 1,60 m 1,40 m Grondmarkering Ground level marker 0,70 m PST 110 006 © Copyright BOERplay 20-6-2023 Revision: B...

  • Page 5: Order Of Assembly

    Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Driehoek dak Driehoeksvloer 0,59 en 0,95 Grond frame 1,45 Staander 2,3 m Staander 3,0 m Wand/Telbollen Speelraam paal 70 x 70 x 500 PST 110 006 © Copyright BOERplay 20-6-2023 Revision: B...
  • Page 6 PST 110 006 © Copyright BOERplay 20-6-2023 Revision: B...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.006 Product Name Playhouse Alpen Maximum fall height 0,2 m Construction year 2023 Certificate 032703 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 SLUITRING DAKHELFTBEUGELTJE Dakje toren Adventure Play © Copyright BOERplay 19-8-2022 Revision: MAP 00 003...
  • Page 13 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Driehoeksvloer 0,59 en 0,95 MAP 01 001 © Copyright BOERplay 14-2-2023 Revision:...
  • Page 14 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 15 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte = 2,3 m MAP 04 230 © Copyright BOERplay 17-8-2022 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte 3,0 m MAP 04 300 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 17 Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER Sluitring M12 - RVS A2-70 D-sluiting 5 MM RVS Beschermdop M10-M12 Dop zwart RING KUNSTSTOF Slotbout met lip M12x150 Touw 1,0m MAP 06 007 © Copyright BOERplay 9-2-2023 Revision:...
  • Page 18 Pin-Torx - VZ 8.8 Veiligheidsschroef Telbol Blauw Telbol Rood Telbol Geel Bus RVS schroefdraad touw d16 0,7 meter touw zwart 0,4 meter touw zwart zwart 0,5 meter touw zwart 0,3 meter touw Winkelraam SHO Venster MAP 06 011 © Copyright BOERplay 23-1-2023 Revision:...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Ø 22 x 50 Pre-drill Voorboren Vorbohren Pretaladrar Pré-percer MAP 06 011 © Copyright BOERplay 23-1-2023 Revision:...
  • Page 20 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 70 mm Vierkante paal 500 mm Lengte MAP 35 005 © Copyright BOERplay 23-1-2023 Revision:...
  • Page 21 © Copyright BOERplay Revision:...

This manual is also suitable for:

Pste110.006
