Summary of Contents for Bluetti AC500
- Page 1 User Manual BLUETTI...
- Page 2 Thank You! Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
Contents Before You Begin Safety Instructions General Safety Maintenance Handling & Slorage What's In The Box Standard Packaging Product Overview Diagram Spcicifirntions Operation Powering On/Off LCD Screen Charging Discharging Capacily Expansion LJl)S I::, BLUETT! /\pp Power Lilling Mode Appendix FAQs (Frequently Asked Questions) Technicc:il Support... -
Page 4: Before You Begin
• BLUETTI recommends that you use genuine accessories from BLUETTI. • BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI. • For your safety and benefit, please read carefully before using and keep it handy for future reference. -
Page 5: Safety Instructions
Safety Instructions General Safety BLUETTI products are developed to be safe and reliable. Please read this guide for important safety information about your device. The guide is intended to help you be more comfortable and productive while using this device. Failure to follow these guidelines for proper set up, use, and care for your device may cause damage to this unit and injury to yourself or others. -
Page 6: Maintenance
Maintenance • When not using the unit for extended periods of time, power off the unit and disconnect the AC charging cable from the outlet. • Charge the unit to 50-70% SOC every 6 months for long-term storage. • Clean the unit with a dry cloth gently and carefully. Handling and Storage •... -
Page 7: What's In The Box
What's In The Box Standard Packaging Portable Power Station AC Charging Cable DC Input Cable Car Charging Cable User Manual * Below accessories are not included in standard packaging and can be purchased separately at https://www.bluettipower.eu/ 30A RV Cable Lead-acid Battery D300S PV Voltage Step Charging Cable Down Module... - Page 8 * AC Charging Cable: 59in/750cm. DC Input Cable: 59in/750cm. Aviation-MC4. Car Charging Cable: 79.7in/50cm.Cigarette Lighter Port-MC4. 30A RV Cable: Aviation-XT60, 37.5in/80cm; XT60-SPC45, 79.7in/50cm. Lead-acid Battery Charging Cable: 79.7in/50cm. Clamp-MC4. D300S PVVoltage Step Down Module: 65in/765cm(output cable). Cigarette Lighter-F to DC5521 Cable(24V}: 28.3in/72cm. 32A Aviation Plug: Used to obtain SOOOW AC output.Please refer to ACSOO 32AAviation Plug Guide for details.
-
Page 9: Product Overview

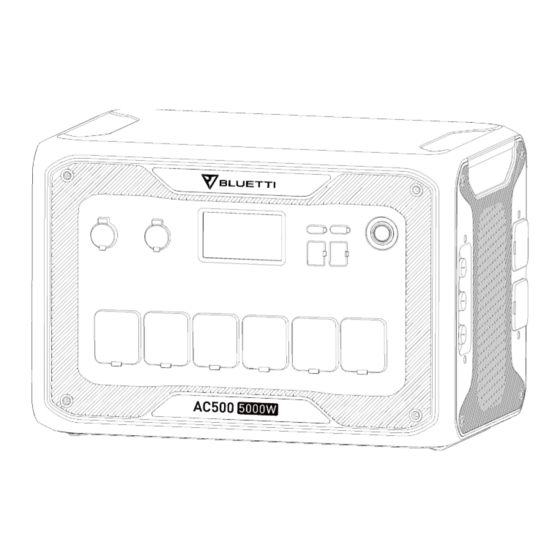

Product Overview Diagram 7. 24V Cigarette Lighter Port 8. 32A AC Output 2. 72V/30A RV Port Wireless Charging Pad 3. LCD Screen 70. Power Button 4. USB-C PD3.0 77. Battery Expansion Port 5. 78W USB-A Port 72. AC Input 6. USB-A Port 73. - Page 10 Specifications ACSOO General Battery Capacity (With 7-6 B300S) 3072-7 8432Wh/60-360Ah Dimensions (L*W*H) 20.5*72.8*74.71 N/520*325*358M M Weight 66.2LB/30KG Discharging Temperature -4-704 ° F/-20-40 ° Charging Temperature ° ° -4-7 04 F/-20-40 Storage Temperature -73-7 04 ° F/-25-40 ° Discharging ° C (Recovery at 55 °...
- Page 11 AC In ut Power SOOOW Max. Voltage 787-264VAC 23AMax. Current Frequency 47-63Hz DC Input Power 3000W Max. Voltage 72-lSOVDC lSA Max. Current If there's only one B300S, the combo gets a maximum of 4500W output. Note: When connecting B300S with TSOO adapter or ACSOO to the grid, B300S is able to self-heat and get charged even at -4 F/-20 °...
-
Page 12: Operation
Operation Powering On/Off Startup and shutdown: Press and hold the power button on ACS00 or B300S to turn the combo on or off. AC/DC Output: Tap the 'AC ON/ O FF' or 'DC ON/ O FF' to enable or disable. Green Light (On the Buttons) Operation LED Indicator (On B300S) -
Page 13: Charging
(7) Consider the specifications of utility, AC outlet and charging cable before setting the Max. Grid Input Current. The Max. Grid Input Current is set at l0A by default and only works when Note: ACS00 connects to the grid. Email to BLUETTI Customer Service for password. JUST POWER ON... - Page 14 (2) Plug the ACSOO into the wall outlet via the AC charging cable. Generator Charging Connect ACSOO to the generator via the charging cable*. * Sold separately. BLUETTI recommends an inverter generator that delivers at least SOOOW Note: pure sine wave AC power. Voltage and frequency limit: EU/UK: l95.5-253VAC/47-53Hz AU: 204-264VAC/47-53Hz...
- Page 15 Note: Please make sure your solar panels at each input comply with: oc'172-lSOV Vmp� 72-lS0V Power: 7500W Max. E.g. Connect three BLUETTI PV350 solar panels in series to DCl or DC2. BLUETTI PV350: Voc 46.5V Vmp 37.5V Current 9.2A Max.
- Page 16 Car Charging Connect the ACSOO to the vehicle plug-in cigarette lighter port via the DC input cable and car charging cable. Note: Set the 'Others' as DC7/DC2 input source to enable car charging. The Max. input current is 8.2A. Lead-acid Battery Charging Connect the ACSOO with the lead-acid battery via the DC input cable and lead-acid battery charging cable.
- Page 17 45Wh 78Wh 7800W 67 4 4Wh* x DoD x 11-;- (load power)= charging time (estimated) * Take the AC500+2*B300S combo as an example. Note: DoD refers to the Depth of Discharge, ri is the local inverter efficiency. DoD=95%, r,=90%. DoD may vary depending on ambient-operating temperature and discharge rate.
-
Page 18: Capacily Expansion
Capacity Expansion ACSOO supports up to 6 expansion batteries for a total ofl8,432Wh capacity. Connect ACSOO to B300S via the PlSOD battery expansion cable, or B300 via the PlSOD to P090D cable. For more details, please refer to B300S or B300 User Manual. - Page 19 Main Panel TaoSm SW<ch AC Input * The grid-tied UPS should be built by a qualified electrician. Please contact BLUETTI Customer Service for details. ACSOO has 4 UPS modes-Standard, Time Control, PV Priority, and Customized UPS, and BLUETTl's UPS mode guide is as follows: l.
-
Page 20: Bluett! /\Pp
GETITON ..- Google Play Power Lifting Mode This mode can be enabled in BLUETTI App. When on this mode, the combo can power high drain pure resistive loads \s6000W), while the rated output power remains 5000W. Note: Make sure the combo disconnects the grid and the B300S doesn't overload. -
Page 21: Appendix
Q: How long will it take to switch the UPS? A: 20ms. Q: How to upgrade the firmware? A: Connect the unit with BLUETTI App, then you can over-the-air (OTA) upgrade the firmware including ARM, DSP, HMI, and BMS. Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI Customer Service. - Page 22 @ Bluetti Europe @ bluetti_us @bluetti.inc I I I Company: POWEROAK GmbH EU REP Address: Lindwurmstr.114, 80337 Mllnchen Germany �- -�- ___ Mail: logi@bluetti.de Company:POWEROAKENERGYUKCO.,LTD Address: Unit 2, NorthGate, Bolsover Business Park, Woodhouse Lane Chesterfield England S44 68D ��--� Mail: poweroak.eu@bluetti.com...
- Page 23 P/N:l7.0303.0486-02A2...
- Page 24 BLUETTI Just Power On...
