Summary of Contents for Bluetti AC500

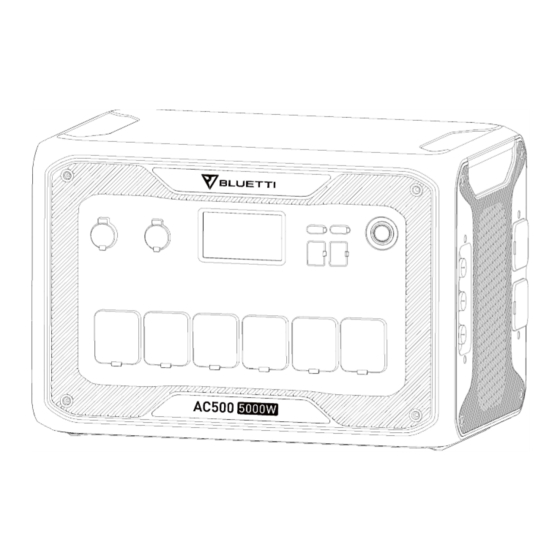

- Page 1 User Manual...
- Page 2 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
-
Page 3: Table Of Contents
Maintenance Handling & Storage What's In The Box Standard Packaging Product Overview Diagram Specifications Operation Powering On/Off LCD Screen Charging Discharging Capacity Expansion Power Lifting Mode BLUETTI App Split Phase System Appendix FAQs (Frequently Asked Questions) FCC Warning Technical Support... -
Page 4: Before You Begin
• BLUETTI recommends that you use genuine accessories from BLUETTI. • BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI. • For your safety and benefit, please read carefully before using and keep it handy for future... -
Page 5: Safety Instructions
Safety Instructions General Safety BLUETTI products are developed to be safe and reliable. Please read this guide for important safety information about your device. The guide is intended to help you be more comfortable and productive while using this device. Failure to follow these guidelines for proper set up, use, and care for your device may cause damage to this unit and injury to yourself or others. -
Page 6: Maintenance
• DO NOT attempt to modify, replace the internal components of the unit by anyone other than qualified personnel. If necessary, take it to an authorized service center as incorrect reassembly may result in a risk of fire or electric shock. SAVE THESE INSTRUCTIONS! Maintenance •... -
Page 7: What's In The Box
What's In The Box Standard Packaging Portable Power Station 15A AC Charging Cable DC Input Cable Car Charging Cable User Manual Warranty Card * Below accessories are not included in standard packaging and can be purchased separately at https://www.bluettipower.com/. 30A AC Charging Cable 50A AC Charging Cable Lead-acid Battery Charging Cable... - Page 8 Split-phase AC Charging Cable USB-C to USB-C Cable Communication Cable P150D to P090D Cable P030A Fusion Box * 15A AC Charging Cable: 63in/160cm. DC Input Cable: 63in/160cm. Aviation-MC4. Car Charging Cable: 25.6in/65cm.Cigarette Lighter Port-MC4. 30A AC Charging Cable: 63in/160cm. 50A AC Charging Cable: 59in/150cm. Lead-acid Battery Charging Cable: 20in/50cm.
-
Page 9: Product Overview
Product Overview Diagram 1. 24V/10A Cigarette Lighter Port Wireless Charging Pad 2. 12V/30A RV Port 10. Power Button 3. LCD Screen 11. USB-C PD3.0 4. 18W USB-A Port 12. Battery Expansion Port 5. USB-A Port 13. AC Input 6. AC Output 14. -
Page 10: Specifications
Specifications AC500 General Battery Capacity (With 1-6 B300S) 3072-18432Wh/60-360Ah Dimensions (L*W*H) 20.5*12.8*14.1IN/520*325*358MM Weight 66.2LB/30KG Discharging Temperature -4-104°F/-20-40°C Charging Temperature -4-104°F/-20-40°C Storage Temperature -13-104°F/-25-40°C Over Temperature Protection Discharging 65°C (Recovery at 55°C) (With B300S) Charging 55°C (Recovery at 45°C) Working Humidity... - Page 11 With the 15A AC charging cable, the combo gets a maximum of 1500/1800W AC input (1500W for 100VAC version, 1800W for 120VAC version). When connecting B300S with the T500 adapter or AC500 to the grid, B300S is able to self-heat and get charged even at -4°F/-20°C.
-
Page 12: Operation
Operation Powering On/Off Powering on: Press the power button either on AC500 or B300S and hold for at least 1s to start up the combo. AC/DC Output: Tap the ‘AC ON/OFF’ or ‘DC ON/OFF’ to enable or disable. Operation Green Light(On the Buttons) - Page 13 Settings This section provides general setting configurations, including language, AC/DC output and input, ECO Mode , machine type, system date/time, etc. BACK BACK English English Language Setting English 100V 120V AC Output Voltage 50Hz 60Hz AC Output Frequency Settings Others DC1 Input Source Others DC2 Input Source...
-
Page 14: Charging
(2) Plug the AC500 into the wall outlet with 15A/30A/50A AC charging cable or tie it to the grid with the smart home panel. Main Panel Smart Home Panel Wall Outlet Note: If there’s only one B300S, the combo gets a maximum AC output of 4500W. - Page 15 Vmp=37.5×3=112.5V Current=9.2A Max. Roof panel can charge AC500. If the panel’s OCV falls in 150-550V, use D300S to lower the voltage. Find details in D300S PV Voltage Step Down Module User Manual. OCV: Open circuit voltage, also for Voc. The maximum voltage that the solar panel can produce with no load on it.
- Page 16 Car Charging Connect the AC500 to the vehicle plug-in cigarette lighter port via the DC input cable and car charging cable. Note: Set the ‘Others’ as DC1/DC2 input source to enable car charging. The Max. input current is 8.2A. Lead-acid Battery Charging Connect the AC500 to the vehicle plug-in cigarette lighter port via the DC input cable and lead-acid battery charging cable.
-
Page 17: Discharging
1800W 6144Wh* × DoD × η ÷ (load power) = charging time (estimated) * Take the AC500+2*B300S combo as an example. Note: DoD refers to the Depth of Discharge, η is the local inverter efficiency. DoD=95%, η=90%. DoD may vary depending on ambient-operating temperature and discharge rate. -
Page 18: Capacity Expansion
① ① Note: Press either the power button on AC500 or B300S to turn on the AC500 + B300S combo. When AC500 is connected to power source, the AC500 + B300S combo turns on automatically. If there’s only one B300S connected, the combo delivers a maximum output of 4500W. - Page 19 AC500 + 1*B300S = 4500W Max. / 3072Wh AC500 + 2*B300S = 5000W Max. / 6144Wh AC500 + 6*B300S = 5000W Max. / 18432Wh B300S Capacity Expansion Tutorial...
-
Page 20: Ups
Tie the AC500 + B300S combo to the grid with the smart home panel. Connect the critical loads to the AC output of AC500. Main Panel Smart Home Panel Standard UPS The combo is set at standard UPS by default. The grid first charges the combo, followed by the devices on AC output ports. - Page 21 PV Priority UPS Set the ‘PV Priority UPS’ as the working mode. When battery SOC is higher than set value, devices on AC outlets are powered by grid and the combo together. When battery SOC is lower, the grid charges the combo and devices at the same time. Reserved capacity for PV charging: The combo charges to this SOC f rom the grid, then from solar panels ONLY.
-
Page 22: Power Lifting Mode
Power Lifting Mode This mode can be enabled in BLUETTI App. When on this mode, the combo can power high drain pure resistive loads (≤6000W), while the rated output power remains 5000W. Note: Make sure the combo disconnects the grid and the B300S doesn’ t overload. - Page 23 (2) Scan the QR code on the unit and set the WiFi network. Note: The unit supports 2.4GHz WiFi ONLY. Find the SN(Serial Number) on the unit or from the ‘Product Info.’ If the WiFi connection fails, go to Settings(on your phone), tap BLUETTI and allow the network. Bluetooth Connection Press the ‘...
-
Page 24: Split Phase System
3600W. Otherwise, it will cause damage to the EP500 and fusion box. If you insist on charging AC500 in the system, ensure the sequence of L1, L2, and N wires* is correct. -
Page 25: Appendix
The Customized UPS mode allows you to design your own power supply system. Q: How long will it take to switch the UPS? A: 20ms. Q: How to upgrade the firmware? A: Connect the unit with BLUETTI App, then you can over-the-air (OTA) upgrade the firmware including ARM, DSP, HMI, and BMS. -
Page 26: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 27: Technical Support
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
