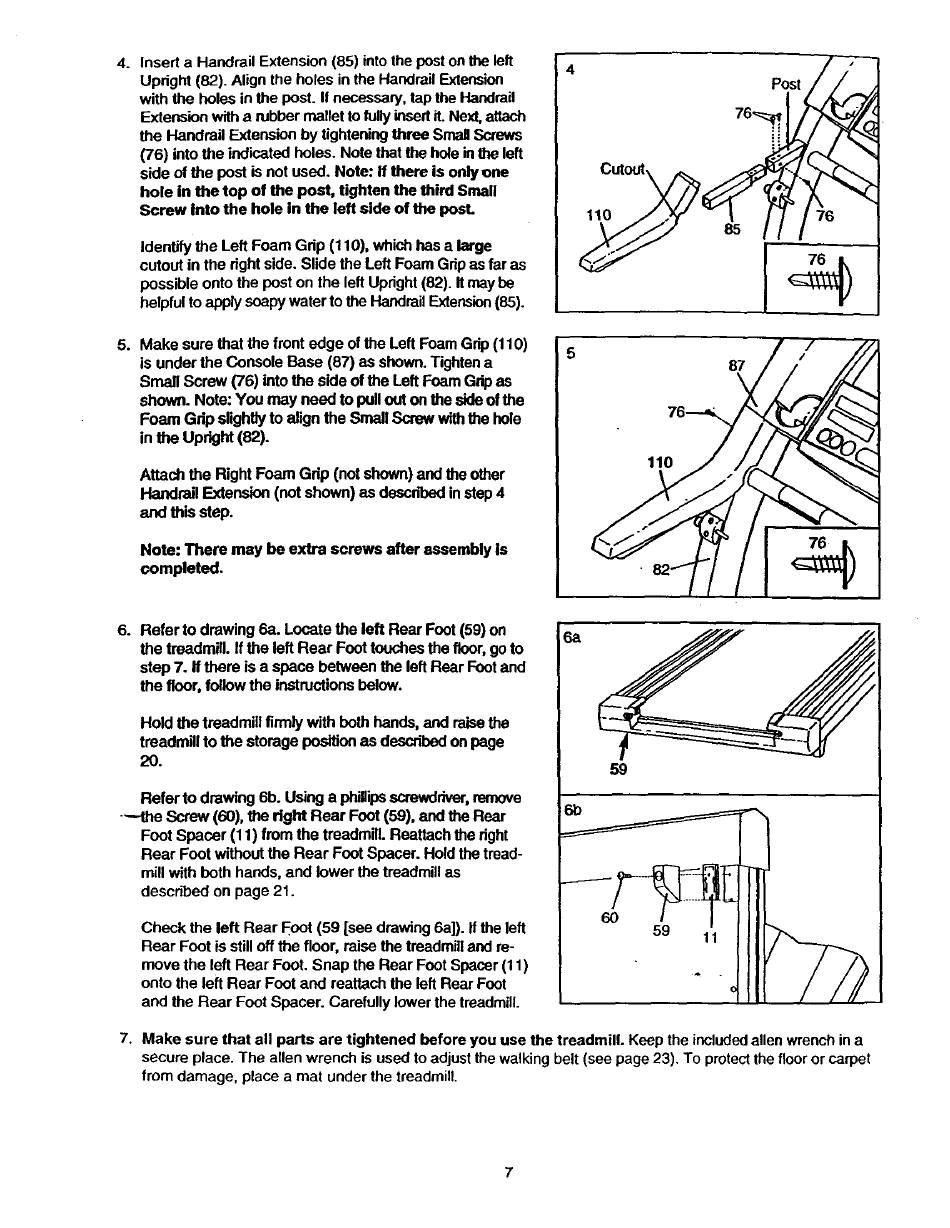

4. Inserta Handrail Extension ( 85)intothepost o ntheleft
Upright ( 82).AligntheholesintheHandrail Extension
withtheholesinthepost.If necessary, taptheHandrail
Extension w itha
robber mallet to fullyinsert it. Next, attach
the Handrail Extension by tightening three Small Screws
(76) into the indicated holes. Note that the hole in the left
side of the post is not used. Note: If there is only one
hole in the top of the post, tighten the third Small
Screw into the hole in the left side of the post.
Identify the Left Foam Grip (t 19), which has a large
cutout in the right side. Slide the Left Foam Grip as far as
possible onto the post on the left Upright (82). It may be
helpful to apply soapy water to the Handrail Extension(85).
5. Make sure that the front edge of the Left Foam Gdp (11O)
is under the Console Base (87) as shown. Tighten a
Small Screw (76) into the side of the Left Foam Grip as
shown. Note: You may need to pull out on the side of the
Foam Gdp slightly to align the Small Screw with the hole
in the Upright (82).
Attach the Right Foam Grip (not shown) and the other
Handra, Extension (not shown) as descn'bed in step 4
and this step.
Note: There may be extra screws after assembly is
completed.
4
110
5
11o
85
87
\
6. Refer to drawing 6a. Locate the left Rear Foot (59) on
the treadmill. If the left Rear Foot touches the floor, go to
step 7. If there is a space between the left Roar Foot and
the floor, follow the instrucUons below.
Hold the treadmill firmly with beth hands, and raise the
treadmill to the storage position as descn'bed on page
20.
Refer to drawing 6b. Using a phiDips screwdriver, remove
----the Screw (60), the right Rear Foot (59), and the Rear
Foot Spacer (11) from the treadmill. Reattach the right
Rear Foot without the Rear Foot Spacer. Hold the tread-
mill with both hands, and lower the treadmill as
described on page 21.
Check the left Rear Foot (59 [see drawing 6a]). ff the left
Rear Foot is still off the floor, raise the treadmill and re-
move the left Rear Foot. Snap the Rear Foot Spacer (1 t)
onto the left Rear Foot and reattach the left Rear Foot
and the Rear Foot Spacer. Carefully lower the treadmill.
6a
59
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 23). To protectthe floor or carpet
from damage, place a mat under the treadmill.
