U11 SMART PROJECTOR
EN

Advertisement

Table of Contents
loading

Related Manuals for Yaber U11 SMART

Summary of Contents for Yaber U11 SMART

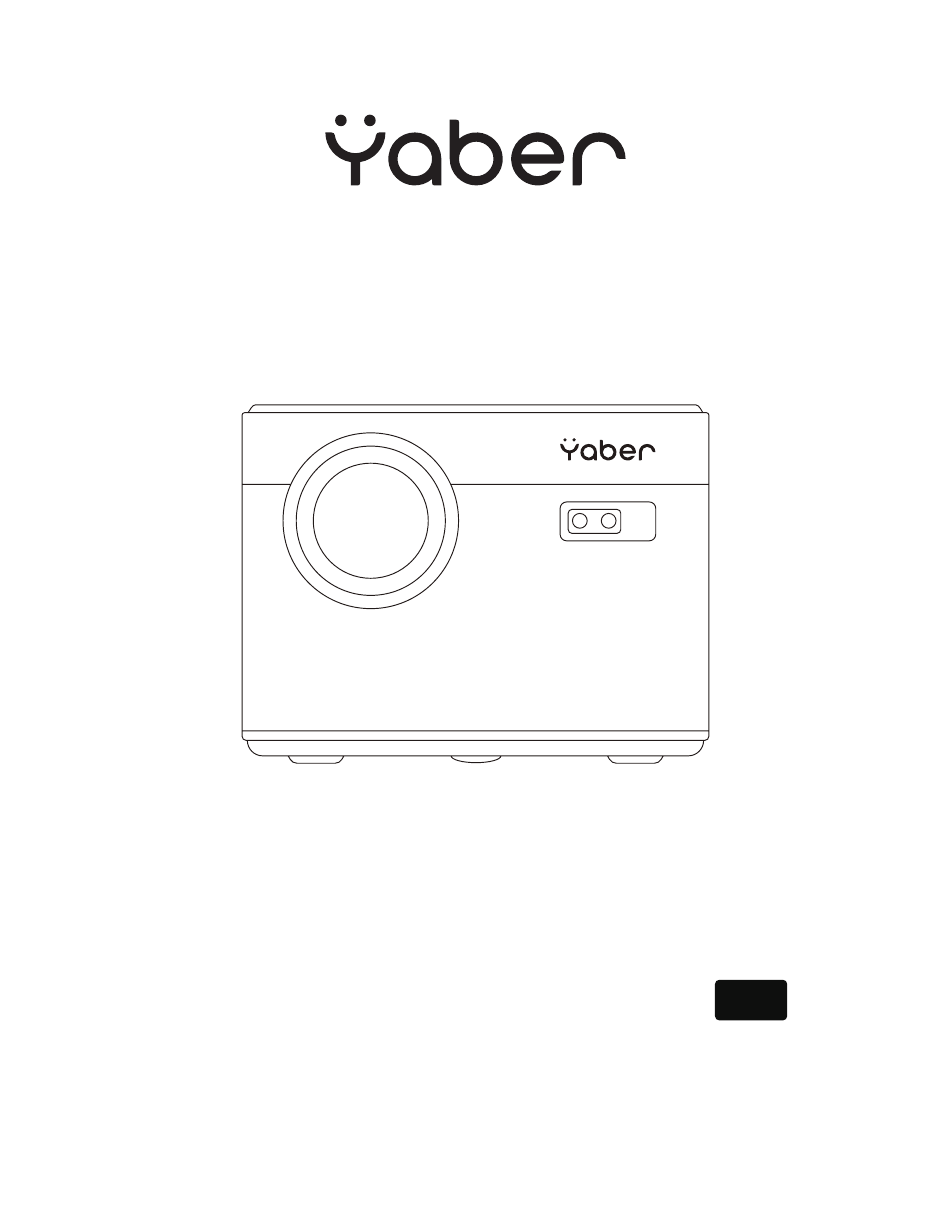

  • Page 1 U11 SMART PROJECTOR...

  • Page 3: Table Of Contents

    YABER Lifetime Professional Support - - - - - - - - - - - - - - - - - -...

  • Page 5: Yaber Lifetime Professional Support

    Yaber Lifetime Professional Support Dear customer, Thank you for your support of YABER! Before using your projector, please take a moment to read through the manual thoroughly. Should you encounter any issues, simply email aftersales@yaber.com with your order number and a brief explanation of the problem. Our team will respond within 24 hours with a fast and effective solution.

  • Page 6: Package List

    Package List Yaber U11 Projector HDMI Cable 3 -in -1 AV Cable Remote Control Power Cord Cleaning Cloth Lens Cover Quick Tutorial EN 2...

  • Page 7: Projector Specifications

    Projector Specifications Model No. U11 Native Resolution 1920*1080 Aspect Ratio 4:3/16:9 Display Tech Light Source Color Game 16.7M Full Size 8.32x6.3 inch Weight 5.29 lb Power Voltage AC100 -240V ~ 50/60Hz Output Port Headphone Input Port RJ45/HDMI/USB/AV Front/Rear on Desk, Front/ Rear on Ceiling Projection Method Operation Mode Remote control...
  • Page 8 ⑬ ⑭ ⑮ ⑯ ⑰ Projector lens Optical coated glass lens 2/10 IR window Infrared signal receiver Camera Auto -focus lens RJ45 Network port USB Ports USB 1 port /USB 2 port HDMI Ports HDMI Input AV Interface Separates audio and video transmission Headphone Jack 3.5mm Headphone Output Power Cord Port...

  • Page 9: Remote Contol

    Remote Control Indicator light Buttonr Source key Home button Arrow keys Return key Menu Home Page Volume + Focus+ Focus - Volume - Mute key Button Turn on/off the power Source key Select the input signal source Used to adjust the parameter of the projector in the menu Arrow keys mode Press once: Operate picture and sound settings in AV or HDMI...

  • Page 10: Installation

    Note: 1. Install 2 pieces of AAA batteries into the remote controller before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply. 2. When using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.

  • Page 11: Projection Distance And Size

    2. Projection Distance and Size Aspect Ratio: 16:9 Distance (ft.) Screen Size 50" 80" 100" 120" 13.4 120" 16.8 150" The recommended projection distance is about 8ft -10ft. The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data.

  • Page 12: Use The Projector

    Use The Projector 1. Turn on/off the projector Connect the projector to the power supply, the projector will enter the standby state, and the signal indicator light on the cover will be red. Power on: Press the power button on the body, or the power button on the remote control, and the indicator light turns blue to enter the working state.

  • Page 13: Setting Up The Projector

    2. Select the option [All/Video/Audio/Image] 3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it. Notice: Yaber U11 projector supports USB disk to directly play PPT, Word, Excel files. EN 9...

  • Page 14: Play Interface

    4. In the File System dropdown, please choose the FAT32 format. 5. Click Start and close this window when finished. If the problem is still not solved, please send your problem to this email: aftersales@yaber. 2.2 Play Interface Click the "OK" button to get the play interface.
  • Page 15 Playing setting Include Function Play List the videos of current folder change video from the current folder repeat all, auto exit, repeat one, Play mode change play mode random, play list Aspect Ratio auto, 16:9, 4:3, zoom1, zoom2 set video aspect ratio Audio Track audio track set audio track...
  • Page 16 2.3 Music Play Interface Playing setting Include Function Play List the musics of current folder change music from the current folder repeat all, auto exit, repeat one, Play mode change play mode random, play list Information size, duration, bitrate see the basic music information Picture&Sound piture and sound mode set picture and sound mode...

  • Page 17: Wifi Setting

    1. Go to home page - - Press the left button - Select the [ Network ] menu - Select [ Wireless Net Mode ] - Select your home Wi -Fi from the list - Connect the Yaber U11 projector to your home Wi -Fi 2.

  • Page 18: Bluetooth Setting

    3. Scan the QR code and download the app on your Android device 4. Open [Maxhub Share] app on your Android device - Select TV named [TV -XXXX] -Your Android device screen will be displaced on the projection screen after 3 seconds. Note: 1.

  • Page 19: Projector Image Setting

    Note: 1. The Yaber U11 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Air Pods, but not the Bluetooth keyboards or Bluetooth phones. 2. If you have any question, please feel free to contact us via aftersales@yaber.com. 5. Projector System Setting 5.1 Projection Mode...

  • Page 20: Focus

    5.2 Focus 5.2.1 Automatic Focusing after boo Turn on this button, when you start the projector, please wait patiently for 2 -3 seconds, the projector will automatically focus after powering on. 5.2.2 Movement Auto focus Turn on this button, the projector will automatically focus when changing the position. Notice: 1.Use autofocus when your setting up your projector or when you need to quickly adjust the focus of your image.
  • Page 21 5.3.1 Automatic Correction after boot Turn on this button, when you start the projector, please wait patiently for 2 -3 seconds, the projector will adjust keystone automatically. 5.3.2 Automatic Correction after displacement Turn on this button, the projector will automatically keystone correction when changing the position.
  • Page 22 Select the [ System Upgrade ] Notice: If the software currently is the latest, you do not need to upgrade the software. During the upgrade process, if you have any question, please feel free to contact us via aftersales@ yaber.com. 7. Common Menu...

  • Page 23: Signal Lines Connection

    Signal Lines Connection Yaber U11 projector has 7 interfaces, HDMI port*2/ USB port*2/ 3.5mm headphone output*1/ Network port*1/ AV port*1, please select the correct port to connect your device (PC, DVD Player, Fire TV stick, TV box, Sound bar, USB disk, PS4 etc.) 1.

  • Page 24: Connect To The Sound Bar/Speaker

    3. Connect to the Sound bar/Speaker If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows. Audio port 4. Connect to the Computer 1. Connect to the computer and U11 projector with the HDMI cable (Included). 2.

  • Page 25: Warranty

    Warranty Thank you so much for your purchase and support. We provide 3 -year warranty for U11 projector. If you have any questions, please feel free to contact us via aftersales@yaber.com EN 21...
  • Page 26 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 27 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
  • Page 28 Brehmstr.56, 40239 Duesseldorf, Germany (Company address) declare under our sole responsibility that the product Trade name: Yaber Equipment: Entertainment Projector Model No. : U11 to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to RED Directive(2014/53/EU) &...
  • Page 30 Scan and download the PDF user manual Where to Get More Help Support@yabertech.com aftersales@yaber.com www.yaberglobal.com @Yaber Entertainment Projector @Yaber Entertainment Projector...
