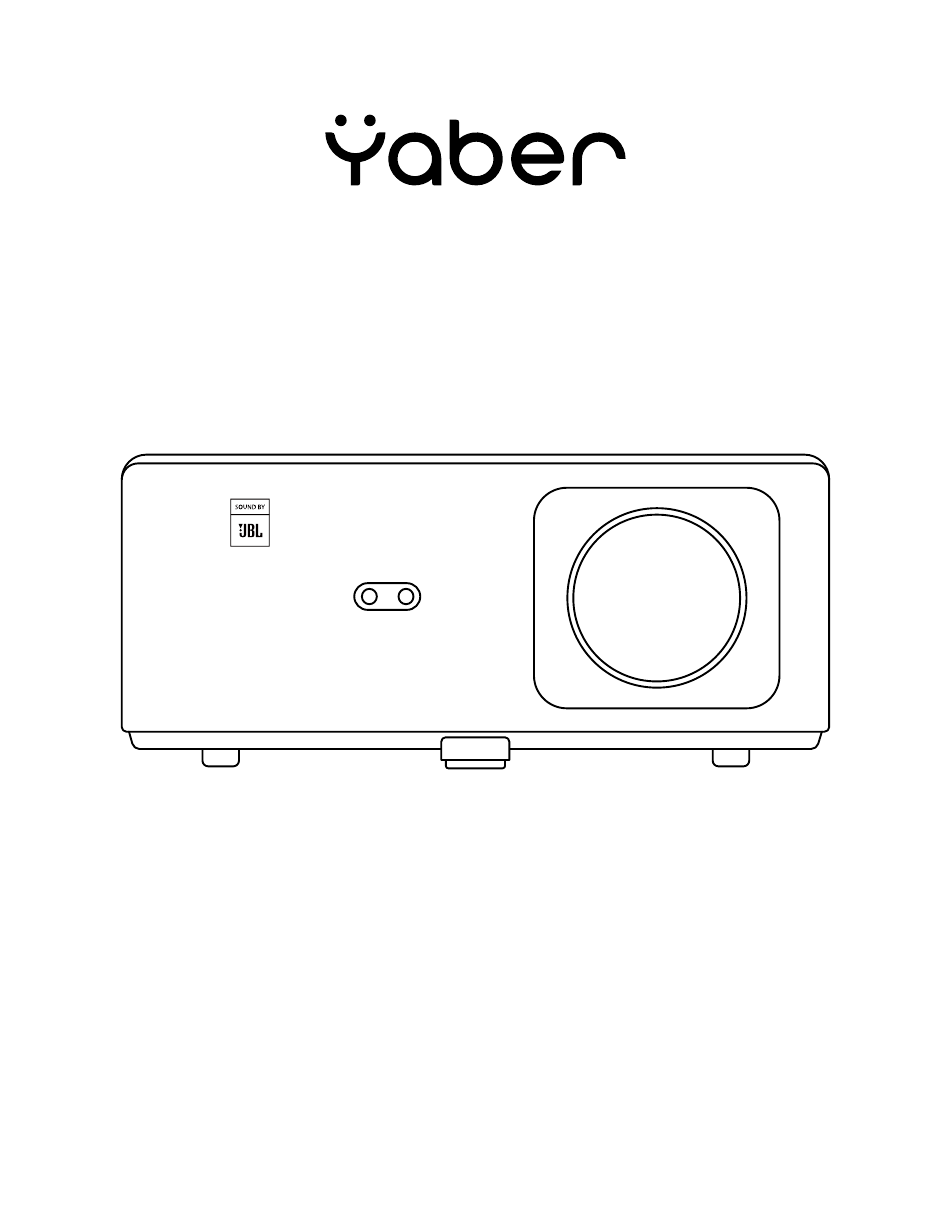

  • Page 1 K2s PROJECTOR...

  • Page 2: Table Of Contents

    CONTENTS YABER Lifetime Professional Support Package List Projector Specifications Projector Overview Remote Control Overview Installation 1. Install the TV Dongle 2. Distance and Projection Size 3. Adjuster 4. Install On the Ceiling 5. Connect Devices Operation 1. Starting Up the Projector 2.

  • Page 3: Yaber Lifetime Professional Support

    YABER Lifetime Professional Support Dear customer, Thank you very much for supporting YABER! Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to support@yabertech.com We will provide a fast solution in 24 hours.

  • Page 4: Package List

    Package List K2s Projector Projector HDMI Cable Remote Control TV Dongle TV Dongle Power Cord Remote Control 3-in-1 AV Cable Quick Start Guide Cleaning Kits Lens Cover EN 2...

  • Page 5: Projector Specifications

    Projector Specifications Model No. K2s Auto/Manual Vertical& Native Resolution 1920*1080P Keystone Correction Horizontal Compatible Resolution 4K(H265 only) Light Source Aspect Ratio 1.54:1 Display Technology Minimum Projection Projection Ratio 4.5ft Distance Weight: 7.05 pounds Recommended 4.5-21.3ft Projector Weight Projection Distance (3.2 kg)

  • Page 6: Projector Overview

    Projector Overview IR Window IR Window Air Inlet Power Port HDMI Port USB Port Automatic Focus Projector USB-C Port Signal Receiver Lens Headphone Jack AV Port NFC Area Heat-Sink Window Bluetooth Speaker Mode Quiet Mode Volume Power Angle Adjusting Stand Rubber Pad (Remove for Ceiling Mount) TV Dongle Slot Bottom Label...

  • Page 7: Remote Control Overview

    Remote Control Overview 1. Android TV Remote Control Standby On/Off Voice Search Enter/Confirm Arrow Keys Back/Exit APPs Home Page Google Play 2. Projector Remote Control Power On/Off Confirm/Enter Arrow Keys Back/Exit Home Page Menu Auto Focus Volume +/- Focus +/- EN 5...

  • Page 8: Installation

    Installation 1. Install the TV Dongle Micro USB port (Mark on the Back) Tray Mounted TV TV Dongle Dongle Slot Micro HDMI port (Mark on the Back) 1. Push once to open the lid, and take out the tray. 2. Mount the TV Dongle and make sure the Micro HDMI port downside and the Micro USB port upside.

  • Page 9: Distance And Projection Size

    2. Distance and Projection Size Aspect Ratio: 16:9 Distance Screen Size 1.4m (4.5ft) 40" 2.0m (6.5ft) 60" 2.6m (8.6ft) 80" 3.3m (10.8ft) 100" 3.9m (12.7ft) 120" 4.8m (15.7ft) 150" 21.9 200" The recommended projection distance is about 8.6ft, the shortest projection distance is 4.5ft. The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data.

  • Page 10: Install On The Ceiling

    4. Install on the Ceiling The projector can be hanged on the ceiling with hanger frame. Please purchase an universal rojector ceiling mount. Remove the four rubber pads on the bottom of the projector, you will see he screw holes and use the M5*10mm screws for installing on the ceiling. Screw holes: M5*10mm 210mm 5.

  • Page 11: Operation

    2. Insert two AAA batteries with correct polarity indicated. 3. Close the battery compartment. Note: You must use the Yaber remote control to complete the first time setup of the projector. · Power on Press the power key on the remote controller or projector. The power LED on the projector turns from orange to off.

  • Page 12: Image Adjustment

    2. Image Adjustment · Focus the image When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect keystone setting. Please use the auto focus and manual focus key on remote control to get the best image. The auto focus can also be triggered by moving the projector to another location.
  • Page 13 · Auto and Manual Keystone When the projection screen is not rectangular, it can be adjusted by auto keystone and 4-point manual keystone correction. The image will be adjusted automatically when you move the projector to another location. For the extra spacing between the auto keystone correction, go to "Settings"-"Projection"- "Projection Settings"-"Manual Keystone".
  • Page 14 · Rotate the Image by Placement For different projector placement, choose the appropriate projection mode to get the correct image. 1. Front projection Ceiling mount 2. Rear projection Ceiling mount 3. Front projection Desk mount 4. Rear projection Desk mount EN 12...

  • Page 15: Switching Input Signal

    3. Switching Input Signal · Focus the image The projector can be connected to multiple devices at the same time but it can only display one full screen at a time. Select the desired signal source (Android TV/HDMI/AV) on the home- page.

  • Page 16: Screencast

    2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended. 3. Some mobile devices may not support screen mirroring due to the compatibility. 4. Any questions, please feel free to email YABER via support@yabertech.com iOS Cast (for iOS Devices) · iOS Wi-Fi Mirroring For iPhone/iPad 1.
  • Page 17 1. Make sure your Mac and projector are on the same network. 2. Click Apple menu->System Preference->Sharing->Airplay Display. 3. Click Airplay icon on menu bar and Select [K2s_xxxx] to connect and start wireless projection. · iOS AP Mirroring For iPhone/iPad 1.
  • Page 18 Miracast for Android Devices · Android Mirroring 1. Turn on the Wi-Fi on the mobile phone. 2. Turn on the Wireless Display / Screen Mirroring function in the phone settings and choose [K2s_xxxx] to start screen mirroring. CONNECT Searching for wireless display and audio devices Where in my devices Search K2s_440E...

  • Page 19: Bluetooth Settings

    3. Go to Settings on E-share App, Select "Write NFC Tags" and follow the prompts to activate the NFC area on the projector. 4. Now you can tap your phone closely on the NFC area to Screencast while the projector is powered on and on the same Wi-Fi network as your phone.

  • Page 20: Quiet Mode

    · Android Mirroring This projector supports the function of Bluetooth speaker. Press the [ ] button on projector, or select the [ Bluetooth Speaker Mode ] on home page, then you can search and pair your projector [ K2s_xxxx ] with your mobile device as a bluetooth speaker for music playing.

  • Page 21: Alexa Setup

    1. Make sure K2s is connected to the Wi-Fi with Internet access. 2. Select the Alexa icon on top right of the projector home page to start the setup. 3. Log in your Amazon account. 4. Follow the instructions to finish linking K2s to your Amazon account . EN 19...
  • Page 22 5. A prompt will pop up on the screen, indicating that the projector has been successfully connected . 6. Open Alexa on your phone and log in your account. EN 20...
  • Page 23 7. Go to Home>More>Skills & Games, search and enable Whale Video 8. Complete the Whale Video skill setup, click “Settings”->“Manage In TV & Video” on the page, bind the projector and your Alexa speaker. 9. Now try this “Alexa, open Netflix on the projector” . EN 21...

  • Page 24: System Update

    9. System Update · Local Upgrade Download the software upgrading package at the company website and copy it to the root directory of portable hard drive or USB drive, and plug the drive into the USB port. Go to "About"-- >"Upgrade"...

  • Page 25: Cleaning The Air Filter

    4. Lens, as the core component of the projector, is directly related to the picture definition and effect. Clean the lens whenever you noticed dirt or dust on the surface. Use a canister of compressed air to remove dust from the lens. If there is dirt or smears, use the cleaning cloth to gently wipe the lens surface.
  • Page 26 5. Tap each side of the air filter 4 to 5 times to shake off any excess dust. Vacuum the front of the air filter to remove any remaining dust Caution: Do not use excessive force when tapping the air filter, or it may crack and become unusable. Do not rinse the air filter in water, or use any detergent or solvent to clean it.

  • Page 27: Warranty

    Warranty · DOLBY Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. · HDMI The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. EN 25...
  • Page 28 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 29 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU.
  • Page 30 Trade name: Yaber Equipment: Entertainment Projector Model No. : K2s to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to RED Directive(2014/53/EU) &...
  • Page 31 Scan and download the PDF user manual Where to Get More Help Support@yabertech.com aftersales@yabertch.com www.yaberglobal.com @Yaber Entertainment Projector @Yaber Entertainment Projector...
