Envertech EVT300 User Manual
Microinverter
Hide thumbs
Also See for EVT300:
- User manual (22 pages) ,
- Quick installation manual (3 pages) ,
- Quick installation manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Envertech EVT300
Summary of Contents for Envertech EVT300

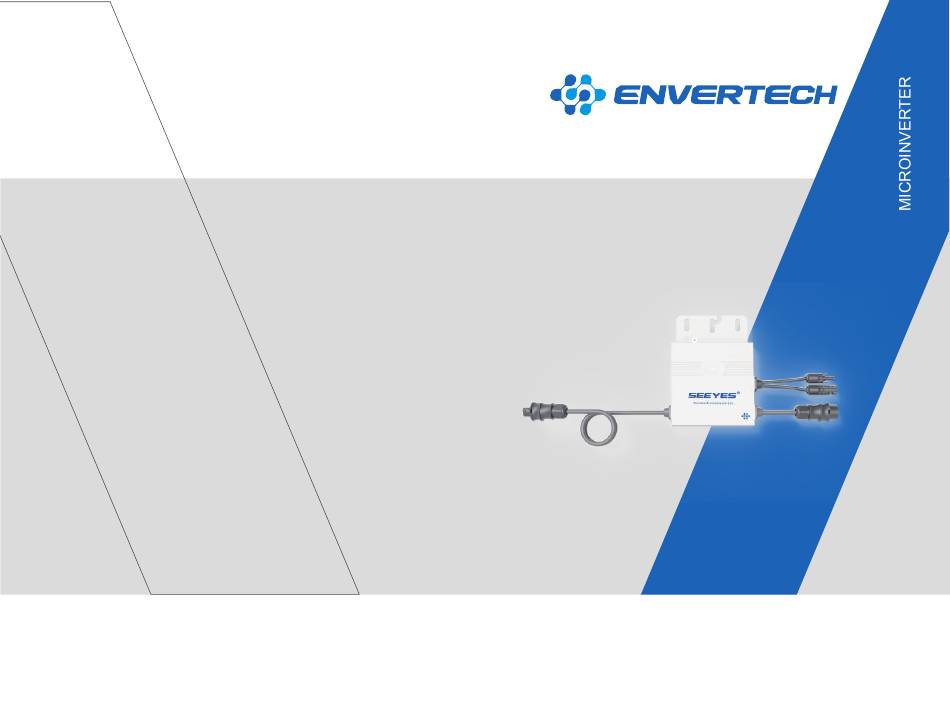

- Page 1 EVT300 Zhejiang Envertech Corporation Ltd. Tel：+86 579 8926 6326 Web：www.envertec.com Email：info@envertec.com Add：24th Floor, Jintong Mansion, Center of Headquarters, Yongkang City, Zhejiang Province, China User Manual www.envertec.com...
-
Page 2: Table Of Contents
Content Important Safety Information................Read it First..................... Safety Instructions....................Envertech Microinverter System............How it Works................... Monitoring Device: EnverBridge.............. Optimal Reliability..................Simple Design..................Product Information................Overview....................Major Characteristics................Datasheet....................Packing checklist.................. Accessories..................... Product Description................. Further information.................. Planning of Microinverter Installation..........Symbols on Inverter................. -
Page 3: Important Safety Information
1.Important Safety Information installation procedures and receiving approval from the electric utility company. Please be kindly noted that the Envertech microinverter itself is a heat sink. Under normal 1.1 Read it First operating conditions, its temperature is 20°C above ambient, but under extreme conditions This manual contains important instructions for installation and maintenance of the the microinverter can reach a temperature of 80°C. -
Page 4: How It Works
PV system. Envertech Microinverters are designed to operate at full power at ambient temperatures as EVT300 can be adapted to almost all 60-cell or 72-cell modules. Before installation, please high as +65℃(150℉). The microinverter casing is designed for outdoor installation and check the parameters of the microinverters and modules to ensure that they are complies with the IP67 protection level. -
Page 5: Datasheet
4.1 Accessories This device SHALL NOT be disposed of in residential wastePlease go to After you receive the Envertech microinverter, please check if there is any damage on the Chapter 9 “Recycling and Disposal” for proper treatments. carton, and then check the inside completeness for any visible external damage on the microinverter and accessories. -
Page 6: Accessories
AC extension cable Installing Envertech microinverter system involves several key steps. Each step listed here (AWG12 or above) is elaborated on the following pages. Step 1: Mount microinverters onto the rack... - Page 7 Step 4: Fasten AC cables Step 1：Mount microinverters onto the rack Fasten AC cables and grounding cables to the rack with cable ties. Mark out the estimated center of each PV module on the rack to facilitate locating microinverters.. Mount all microinvertes under modules to avoid rain and sun, with the trademark facing downward.
- Page 8 Step 8: Prepare AC extension cable. It is suggested to use extension cable of AWG12 above (same or higher than Envertech AC cable standard). 3) Please press [Set MI ID], you will see the content shown as below.
-
Page 9: Debugging And Operaing
Envertech microinverters begin to communicate through the power lines to EnverBridge. The entire system will be detected within 10 minutes. 4. The voltage and frequency of EVT300 can be adjusted on the site. If adjustments are required by your local utility company, installers can use EnverBridge to manage grid parameters after all microinverters have been detected. -
Page 10: Troubleshooting And Maintenance
To troubleshoot an inoperable microinverter, follow the steps in the order shown below. If your problems are still unsolved with the steps above, please contact Envertech tech WARNING: Be aware that only qualified personnel should troubleshoot the PV array or the support through www.envertec.com. -
Page 11: System Diagram
1050 mm length 1050 mm length 304 mm unit in your area for recycling. 11. Contact Zhejiang Envertech Corporation Ltd. length 746 mm length 1050 mm length 1050 mm length 304 mm Tel： +86 579 8926 6326 Web： www.envertec.com Email：info@envertec.com Add：24th Floor, Jintong Mansion, Center of Headquarters, Yongkang City,...
