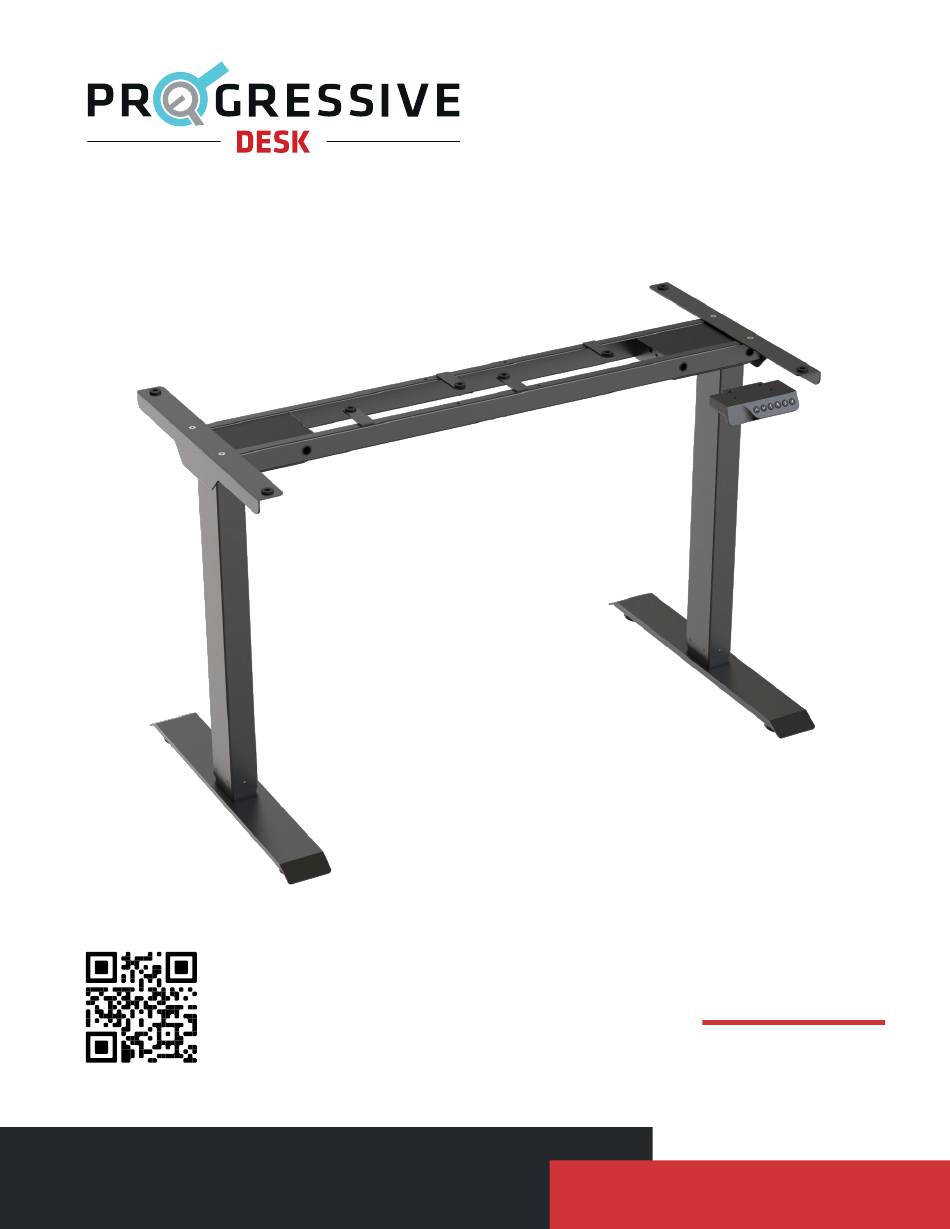

  • Page 1 FLT-21 User Manual Scan for video assembly! V 1.1...

  • Page 2: Table Of Contents

    Table of Contents Caution Specifications Features Dimensional Drawing Parts List Assembly & Installation Operation Troubleshooting Have any queries? Our expert engineers are here to help! sales@progressivedesk.com 1-800-828-9414 progressivedesk.com P a g e | 2...

  • Page 3: Caution

    Caution Warning Ensure no obstacles are in the desk's path. Ensure the Pinch Point tabletop is not touching any walls. Ensure all cords are Keep hands and appropriate length to accommodate the change in height. fingers clear. Keep children away from electric height-adjustable desks, control units, and handsets. There is a risk of injury and electric shock.

  • Page 4: Specifications

    Specifications Specification Description Input Voltage 100VAC-240VAC Output Voltage 24VDC Stroke (movement) 19.3" Height Range (without tabletop) 27.6" - 46.9" Base Width 36.7" - 54.7" 42" x 20" Minimum Tabletop Size Weight Capacity (load) 220 lbs (evenly distributed) No Load Speed 1.00”/s Full Load Speed 0.98”/s...

  • Page 5: Dimensional Drawing

    Dimensional Drawing P a g e | 5...

  • Page 6: Parts List

    Parts List Important: The drawings below are for reference only and may be slightly different from the physical product. Please contact us if you have missing or damaged components. Part Qty. Part Qty. Part Qty. Remote M6x10 Screws Adaptor Mount Left Frame End M6x12 Screws Power Adaptor...

  • Page 7: Assembly & Installation

    Assembly & Installation STEP 1: Leg and Frame End Assembly B1 (x8) B8 (x1) A1 (x2) A2 (x2) A3 (x2) M6x10 Screws Allen Key Left Frame End Right Frame End P a g e | 7...
  • Page 8 Assembly & Installation P a g e | 8...
  • Page 9 Assembly & Installation STEP 2: Attach Side Bracket A4 (x2) B2 (x4) B8 (x1) Side Bracket M6x12 Screws Allen Key P a g e | 9...
  • Page 10 Assembly & Installation STEP 3: Install Center Rails A5 (x2) B8 (x1) Center Rail Allen Key P a g e | 10...
  • Page 11 Assembly & Installation STEP 4: Attach Feet A6 (x2) B3 (x8) B8 (x1) Foot M6x16 Screws Allen Key P a g e | 11...
  • Page 12 Assembly & Installation STEP 5: Secure Desk Frame to Tabletop A8 (x1) Adaptor Mount Hook the Adaptor Mount (A8) under the frame nearest to where you would like to mount the remote. P a g e | 12...
  • Page 13 Assembly & Installation For Progressive Desk Tabletops: P a g e | 13...
  • Page 14 Assembly & Installation For Third-Party Tabletops: B4 (x8) ST4.2x25 Tabletop Screws P a g e | 14...
  • Page 15 Assembly & Installation STEP 6: Install Remote and Connect Cables A7 (x1) A9 (x1) A10 (x1) A11 (x1) Remote Power Adaptor Power Cable Switch Cord A12 (x1) B5 (x6) B6 (x2) B7 (x6) Extension Cord ST4.2x13 ST4.2x25 Cable Tie P a g e | 15...
  • Page 16 Assembly & Installation P a g e | 16...
  • Page 17 Assembly & Installation STEP 7: Flip Desk Frame Upright P a g e | 17...
  • Page 18 Operation REMOTE BUTTONS Remote Button Control Press and hold to move desk frame up Press and hold to move desk frame down Memory Position 1 - Press once and the desk will travel to the saved position. Memory Position 2 - Press once and the desk will travel to the saved position. Memory Position 3 - Press once and the desk will travel to the saved position.

  • Page 19: Operation

    Operation Safety Lock When Safety Lock is enabled, the remote will no longer be responsive to user input until the function is disabled. Turn on Safety Lock Function: Simultaneously press and hold the “ ” and “ ” buttons for 3 seconds or until “LOC” or “LoC” appears on the display. Safety lock function is now enabled.

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action Table lift does not Connection issue Disconnect and reconnect the cables to the remote. Ensure the cables are not damaged and move when motion that all connections are secure. control buttons are pressed. Table lift travels Weight issue Ensure weight capacity has not exceeded the maximum load rating.
