- Page 1 CX5/CX7 Side Scanner/Imager Kit Instructions 7772-K156 Issue B Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited...
-
Page 2: Copyright
NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current. -
Page 3: Table Of Contents
Table of Contents Copyright CX5/CX7 Side Scanner/Imager Kit Contents Installation Procedure Programming the Imager Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 4 Revision Record Issue Date Remarks Jun 2020 First Issue Dec 2021 Added Warning statement Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-
Page 5: Cx5/Cx7 Side Scanner/Imager

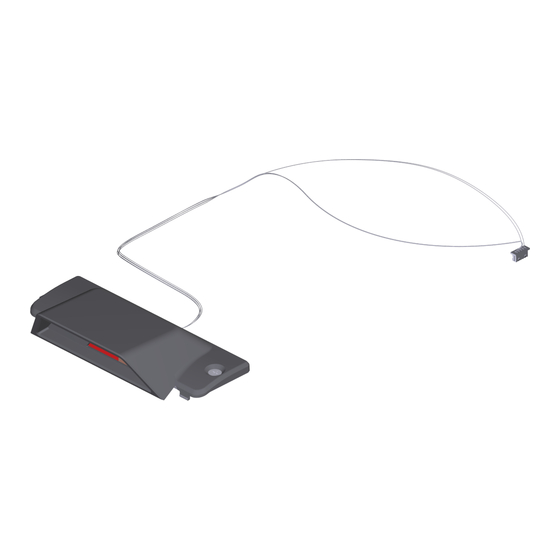

CX5/CX7 Side Scanner/Imager This kit provides an Imager for Port B or Port C of NCR CX7 All-in-One POS (7772) or NCR CX5 All-in-One POS (7773). Kit Contents Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. -
Page 6: Installation Procedure
Remove the two (2) screws that secure the Cable Cover to the Back Cover. b. Rotate and unhook the Cable Cover from the Back Cover. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited. - Page 7 Remove the Ethernet Cable from the Cable Management Hook then disconnect the Cable. 4. Loosen the two (2) captive screws that secure the Back Cover to the Display. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 8 5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 9 6. The Imager can be installed on either Port B or Port C. Insert a flat screw driver in the slot of the desired port to unsnap the Plate from the display housing. 7. Route the Imager Cable through the Port opening. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
- Page 10 Cable to the Motherboard. 9. Tuck the excess Cable under the display housing. 10. Hook the Imager into the display housing and snap into place. Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
-
Page 11: Programming The Imager
To program the imager to work on a Retail or Hospitality (Aloha) POS, refer to the following sections in the Imager Setup Sheets document (BCC5-0000-5470): https://onlinehelp.ncr.com/Retail/Scanners/ImagerSetup/HTML/FrontMatter- HTML/Home.htm Retail Honeywell N6600/N6700 Retail Quick Imager Setup Hospitality (Aloha) Honeywell N6600 Aloha Programming Sheet Confidential and proprietary information of NCR Corporation. Unauthorized use, reproduction and/or distribution is strictly prohibited.
