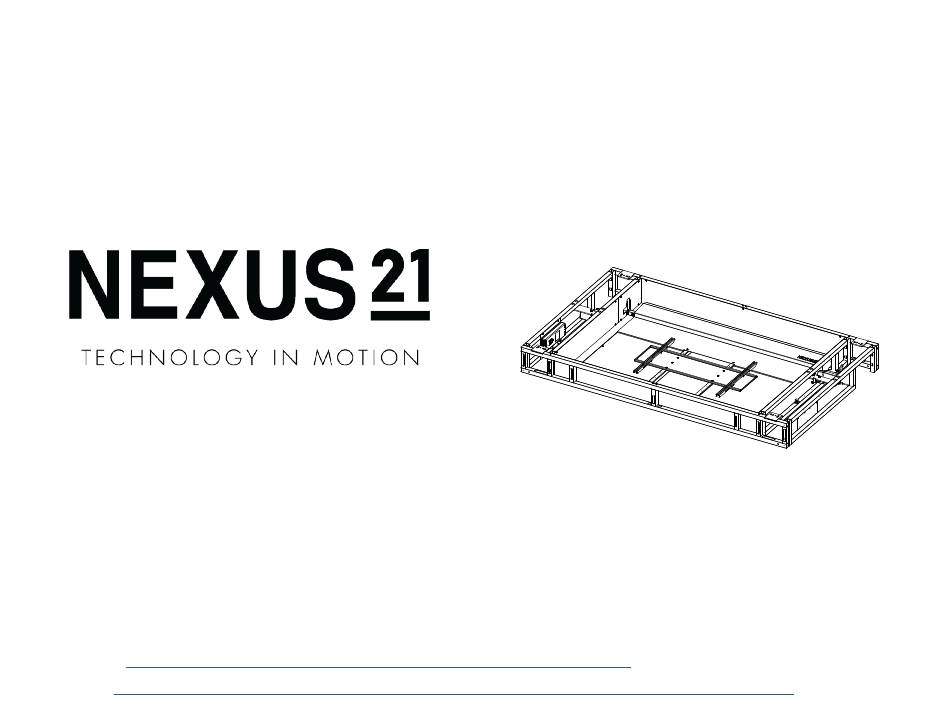

CL-65 Series Pre-Installation Guide This document is to be used in conjunction with the Installation Manual and Dimensional Diagrams for the CL-65+ or CL-65e, which can be found here: Dimensional Diagram: https://www.tvlift.com/dealer-portal/resources/installers-resources/dimensional-diagrams/ Installation Manual: https://www.tvlift.com/dealer-portal/resources/installers-resources/installation-instructions/english-installation-instructions/...
Nexus 21 products. Nexus 21 bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the servicing of Nexus 21 products performed by anyone other than Nexus 21. Nexus 21 intends to make this and all documentation as accurate as possible.
In the event that you do need a replacement part or system, we’ll ship it to you right away, along with a prepaid UPS return shipping label and a package for the defective part or system to be returned to our office. Nexus 21 will cover the shipping cost of the replacement part or system within the continental United States and Canada (excludes Hawaii, Alaska and Puerto Rico).
Within 30 Days of Delivery: Customers may return a Nexus 21 product(s) for any reason within 30 days of the date it is received for a full refund of the purchase price. Shipping charges associated with your order are not eligible for refund. To initiate a product-return request, please review the following conditions: •...
Page 5
Framing Dimensions Celing Framing - Bottom View Ceiling Framing Top View (Isometric) Minimum Framing Depth = 48.625 in [123.5 cm] Minimum Framing Depth = 48.625 in [123.5 cm] Minimum Framing Width = 80.75 in [205.1 cm] Framing for the CL-65+/e requires a minimum internal depth of 48.625 in [123.5 cm] and a minimum...
Page 6
Location of Control Box & Power CL-65+/e Frame - Top View Back Front Right Left CL-65+/e Frame - Side View Control Box Mounting Locations Frame Height 7.625 in [19.5 cm] The CL-65+/e has two control box mounting locations, so power is able to be run from either the left or the right hand side of the lift system depending on what works best for the installation.
Page 7
Height Requirement Above Ceiling System Installed into Framing - Bottom View Without Ceiling Material System Installed into Framing - Side View System Installed into Framing - Side View The outer frame for the CL-65+/e is 7.625 in [19.5 cm] tall, additional space will be required above the framing in the ceiling.
Page 8
How Far Should Ceiling Material Go? System Installed into Framing - Bottom View, Shown Without Ceiling Material Bring Ceiling Material in to here Bring Ceiling Material in to here Bring Ceiling Material in to here Bring Ceiling Material in to here Bring ceiling material into the marked inner points of the CL-65+/e frame.
Page 9
How Far Should Ceiling Material Go? System Installed - Bottom View With Ceiling Material Ceiling brought into red boundary...
Page 10
Dimensions of Opening For Flip-Down Cover Panel System Installed - Bottom View With Ceiling Material Interior Opening Depth for Subframe 44.125 in [1 12.1 cm] Interior Opening Width for Subframe 62.125 in [157.8 cm] Once the surrounding ceiling material has been installed, this will leave an opening of 62.125 in [157.8 cm] wide and 44.125 in [1 12.1 cm] deep. The opening leaves the subframe exposed, which you will cover by adding the Flip-Down Cover Panel later in the installation.
Page 11
Dimensions & Material of Flip-Down Cover Panel Flip-Down Cover Panel - Bottom View Flip-Down Cover Panel Material Depth 43.625 in [1 10.8 cm] Flip-Down Cover Panel - Side View Flip-Down Cover Panel Material Width 61.625 in [156.5 cm] Flip-Down Cover Panel Material Depth 43.625 in [1 10.8 cm] The Flip Down Cover Panel will be installed on to the subframe to complete the assembly of the CL-65+/e.
Page 12
Dimensions of Gap Around Flip-Down Cover Panel Minimum Gap between Ceiling and Finishing Material 0.25 in [0.6 cm] (All Sides) Following the measurements for the Flip-Down Cover Panel will allow for a 0.25 in [0.6 cm] gap between the surrounding ceiling material and the finishing material on each side. THIS GAP IS REQUIRED FOR PROPER FUNCTION OF THE LIFT SYSTEM.
Page 13
Adjusting the Angle of the Flip-Down Cover Panel Fine Adjustment Screw Socket Cap Screws Remove this panel After the Flip Down Panel and TV have been installed, adjustments will need to be made to adjust the angle of the subframe when the lift system is fully retracted into the ceiling. This is normal, and may take a couple of attempts to dial in.
Page 14
If your ceiling panel sits below the ceiling level Tighten the Fine Adjustment Screws to raise the Flip-Down Cover Panel...
Page 15
If your ceiling panel sits above the ceiling level Loosen the Fine Adjustment Screws to lower the Flip-Down Cover Panel...
Page 16
Socket Cap Screws Tighten the Socket Cap Screws when your Flip-Down Cover Panel is Flush...
