Roger Technology B70/2ML Quick Start

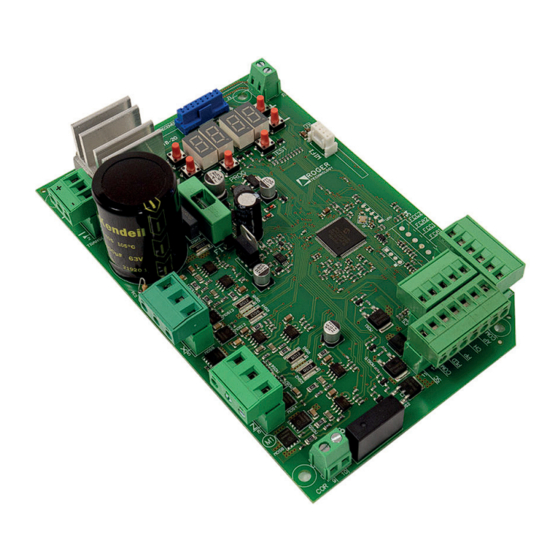

B70/2ML is the range of 24V DC digital controllers installed in the swing gates product.
1. Typical installation
3 3
A
Power supply B70/2ML - Motors 3x2,5 mm
1
Photocell - Receiver
2
Photocell - Transmitter
3
Flashing lamp unit
4
Antenna
5
Selector / Keypad
