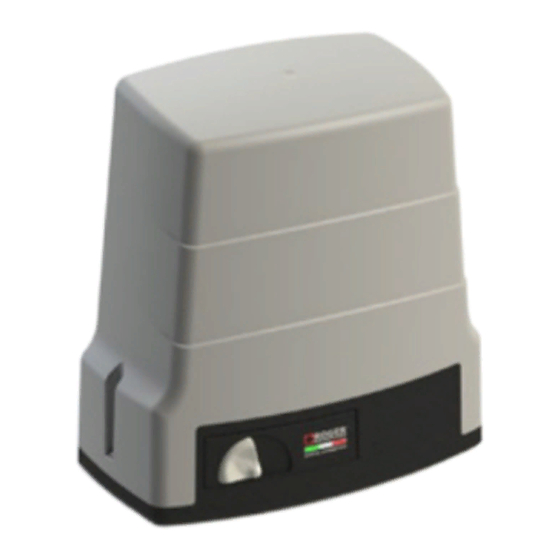

B70/1DC is the range of 24V DC digital controllers installed with the BH30 and BM30 product series for sliding gate applications.

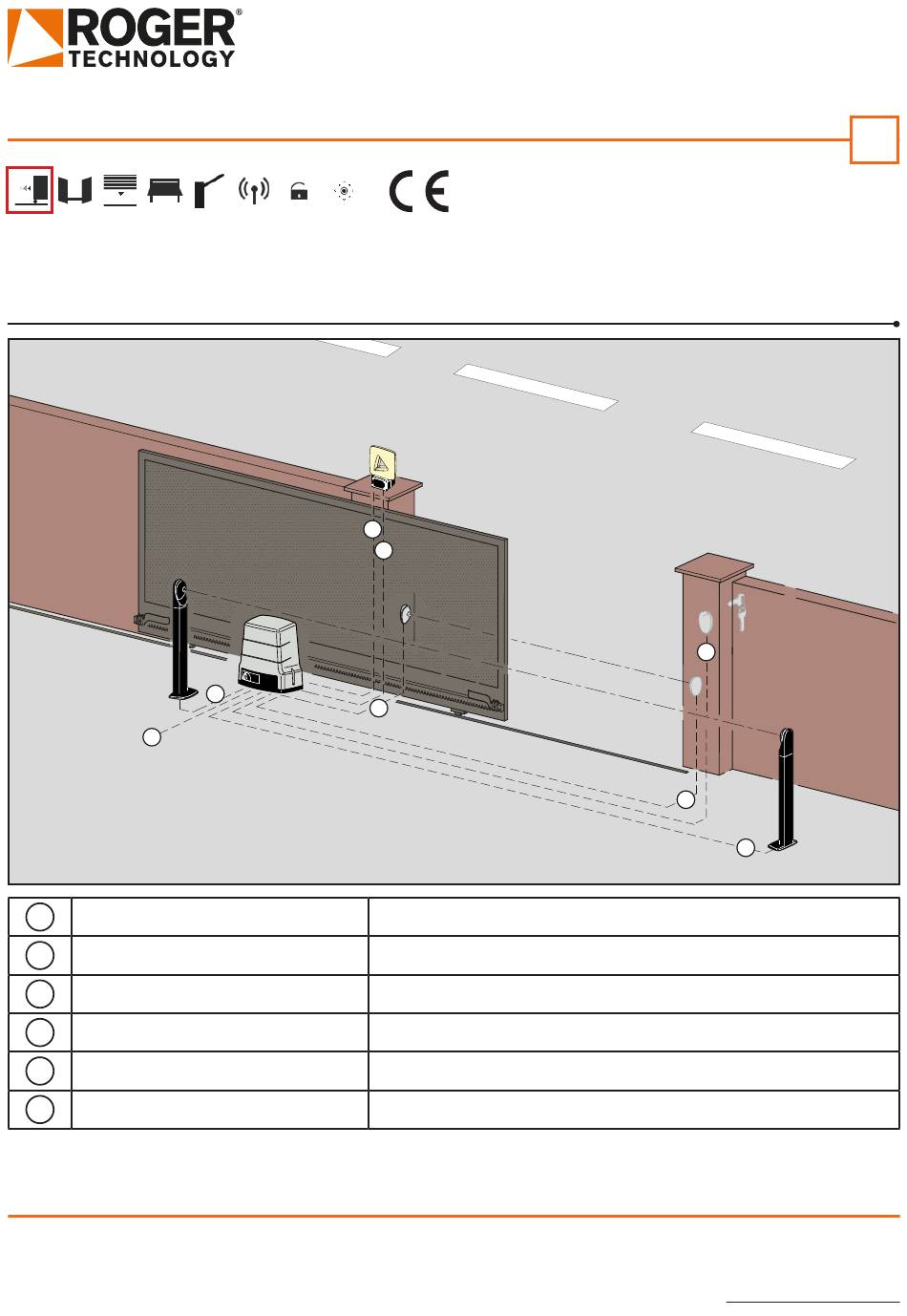

1. Typical installation
A
A
Power supply
1
Photocell - Receiver
2
Photocell - Transmitter
3
Flashing lamp unit
4
Antenna
5
Selector / Keypad
4
3
1
2
H07RN-F 3x1,5 mm
5x0,5 mm
3x0,5 mm
2x1 mm
RG58 50 Ohm cable for external use (max.10 m)
3x0,5 mm
Quick Start B70/1DC
double insulated cable
2
double insulated cable (max.20 m)
2
double insulated cable (max.20 m)
2
double insulated cable (max.10 m)
2
cable (max.20 m)
2
Via S. Botticelli 8 • 31021 Bonisiolo di Mogliano Veneto (TV) • ITALIA
P.IVA 01612340263 • Tel. +39 041.5937023 • Fax. +39 041.5937024
info@rogertechnology.com • www.rogertechnology.com
Rev02 03/04/2020
5
1
2
ROGER TECHNOLOGY
EN
