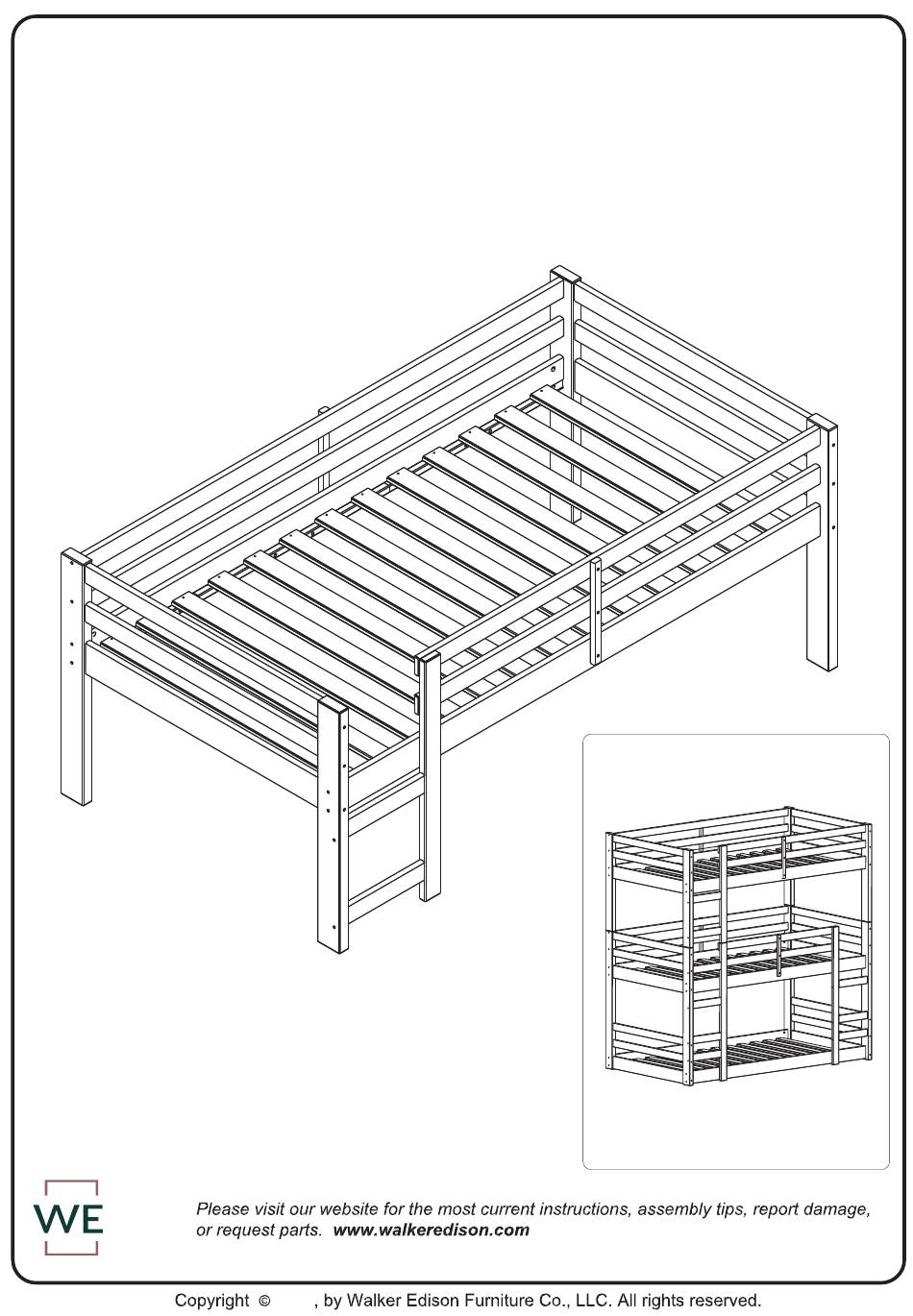

Item #: BWJRTOL
Assembly Instructions

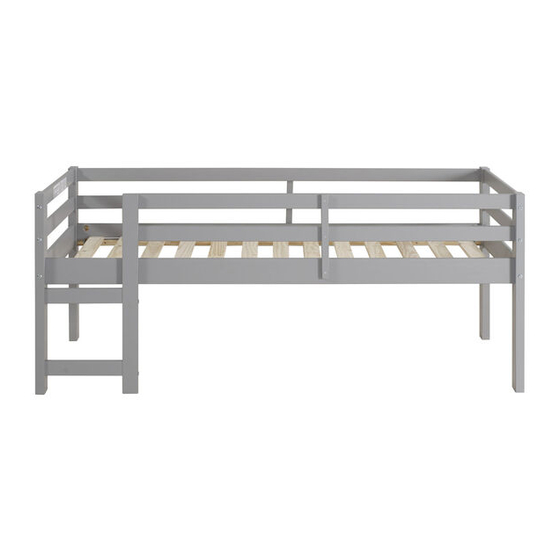

Triple Bunk Bed
Assembly Instructions
TO ASSEMBLE THE
TRIPLE BUNK BED ITEM,
YOU ALSO NEED THE BWJRTOT
BUNK BED
Révisé en 12/2017
Revised 02/2023 V-3
2018
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BWJRTOL and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison BWJRTOL

  • Page 1 Item #: BWJRTOL Assembly Instructions Triple Bunk Bed Assembly Instructions TO ASSEMBLE THE TRIPLE BUNK BED ITEM, YOU ALSO NEED THE BWJRTOT BUNK BED Révisé en 12/2017 Revised 02/2023 V-3 2018...
  • Page 2 WALKER EDIS ON 74-75 in. L x 37 1/2 - 38 1/2 in. W x 7 in. H on the upper DANGER D’ ÉTRANGLEMENT- Ne jamais attacher ni suspendre quelque chose au lit, qui ne fait pas partie du lit superposé. Ceci inclut, sans s’y limiter : crochets, ceintures ou cordes à...
  • Page 3 18 18...
  • Page 4 Ref. Qty. 10x40mm 7x40mm 7x80mm 7x120mm 7x100mm 4,0x30mm Hex Key 1/4x90mm...
  • Page 5 Step 1 Insert wood dowels (A) into slats (10,13,14 and 15). 10x40mm Step 2 Insert wood dowels (A) into guard rails (17,18) and side rails (30, 31). 10x40mm...
  • Page 6 Step 3 7x120mm Attach legs (6 and 8) to slats (10,13,14) using screws (H) and Hex Key (L). Hex Key Step 4 7x120mm Attach legs (6 and 9) to slats (10 and 13) using screws (H) and Hex Key (L). Hex Key...
  • Page 7 Step 5 1/4x90mm Hex Key Hex Key Insert half moon nut (P) into side rail (31), Attach side rail (31) to legs (6 and 9) using bolts (O) and Hex Key (L) Leave the bolts (O) loose for future Steps Step 6 1/4x90mm Insert half moon nut (P) into side rail (30), Attach side rail (30)
  • Page 8 Step 7 18 18 Attach guard rails (18) to legs (6 and 9) using bolts (G) 7x80mm and Hex Key (L). Then tighten (D) on Side Rails (30, 31). Hex Key Hex Key Step 8 Attach part (15) to leg (8) using bolts (G) and Hex Key (L).
  • Page 9 Step 9 Attach ladder side rail (22) to part (15) and side rail (30) using bolts (I and F) and Hex Key (L). 7x100mm Hex Key Hex Key 7x40mm Step 10 17 17 7x40mm 7x80mm Attach guard rail (17) to leg (06) and ladder side rail (22) using bolts (G and F) and Hex Key (L).
  • Page 10 Step 11 Connect guard rail support (05) to guard rail (17,18) and bed rail (30 and 31) using screw (J). Follow measurements shown in diagram. 4,0x30 P.10...
  • Page 11 Step 12 2 1/2" Apply pressure to cross beams (30,31) to ensure that mattress supports (23) fit evenly between cross beams Fix the slats as shown in the drawing, on the support of the rails to avoid accidents 4,0x30mm Install slat kit (23) to bed rails with screws (J). Spacer tape will face up. P.11...
  • Page 12 P.12...
