Operating instructions
Malt friability measuring instrument

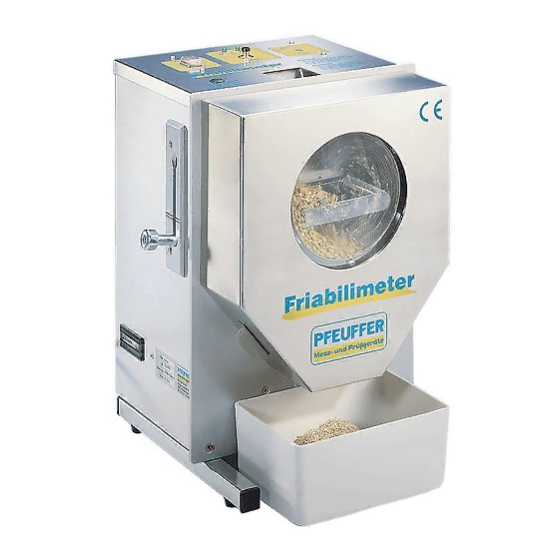

Friabilimeter
PFEUFFER GmbH
Flugplatzstraße 70
Revision 8.2/14.02.2024
97318 Kitzingen
Translation of the original operating instructions
GERMANY
Phone: +49 9321 9369-0
info@pfeuffer.com
Item number operating instructions:
www.pfeuffer.com
1810 0091
Artikelnummer Betriebsanleitung:
Advertisement
Table of Contents
Related Manuals for Pfeuffer Friabilimeter
Summary of Contents for Pfeuffer Friabilimeter
- Page 1 Operating instructions Malt friability measuring instrument Friabilimeter PFEUFFER GmbH Flugplatzstraße 70 Revision 8.2/14.02.2024 97318 Kitzingen Translation of the original operating instructions GERMANY Phone: +49 9321 9369-0 info@pfeuffer.com Item number operating instructions: www.pfeuffer.com 1810 0091 Artikelnummer Betriebsanleitung:...
- Page 2 These Operating Instructions are a constituent part of the FRIABILIMETER and must be available to all operating personnel at all times. They are intended for the operating company of the system, the operating personnel and the specialists who are responsible for the transport, assembly, installation, operation, maintenance, cleaning, disassembly and disposal.
-
Page 3: Table Of Contents
Safety ............................8 Built-in safety systems ........................8 Electrical connections ........................11 Operating and danger areas on the FRIABILIMETER ................. 11 Operating and maintenance personnel .................... 11 Safety measures (to be carried out by the owner) ................12 General safety notes ......................... 13 Safety tests ............................ - Page 4 Table of contents Preparations ............................20 Weighing out the sample ........................21 Filling the sample ..........................21 Switching on the FRIABILIMETER ...................... 21 Emptying the sample ......................... 23 Evaluation ............................24 7.7.1 Friability M ..........................24 7.7.2 Whole hyaline (whole grains) WH ..................24 7.7.3 Part hyaline (partially non-comminuted grains) PH...............
-
Page 5: Introduction
Pfeuffer GmbH will not be liable for any damage resulting from this! The risk is the responsibility of the owner alone. The FRIABILIMETER is only allowed to be taken into operation if it can be ensured that all safety devices are functioning. -
Page 6: Ec/Eu Declaration Of Conformity
DIN EN 61010-1:2011 DIN EN 61000-6-2:2006 DIN EN 61000-6-3:2007 DIN EN 61326-1:2013 EN IEC 63000:2018 Any modification to the FRIABILIMETER not agreed with us shall result in this declaration becoming null and void. Kitzingen, __________________________ ___________________________________ Lothar Pfeuffer, General Manager 6 | 48 Operating instructions Friabilimeter | Revision 8.2... -
Page 7: Structural Features Of The Danger Notes
Introduction Structural features of the danger notes The operating instructions from Pfeuffer GmbH contain instructions that you must comply with for your personal safety as well as to avoid damage to property. The instructions for your personal safety are highlighted by a warning triangle. Comply with the following categories of danger notes and explanations... -
Page 8: Abbreviations In Electrical Engineering
The built-in safety systems must be checked at regular intervals with the corresponding test methods, see the following table: Test intervals Test methods Daily Visual check Weekly Function check Monthly Measurement ¼ y = Every three months ½ y = Every six months Yearly 8 | 48 Operating instructions Friabilimeter | Revision 8.2... - Page 9 Detachable mains cables must not be replaced by inadequately dimensioned mains cables. Only the specified mains cables may be used! In an emergency, switch off the FRIABILIMETER using the main switch, position OFF. Disconnect the mains cable from the electrical power supply, or pull out the power coupling (IEC 60320 C13).
- Page 10 Safety Protective covers Test The FRIABILIMETER is protected during operation by its complete housing and the front hood to prevent reaching into the machine. Interval Method CAUTION Danger of crushing! Finger injuries! During operation, do not place your fingers into the filling funnel.
-
Page 11: Electrical Connections
Figure 3: Safety device (blue magnet) for front hood Electrical connections The FRIABILIMETER must only be operated with the specified voltages. The fuse must always be replaced with identically specified values, see chapter 3 and the specifications on the type plate. -
Page 12: Safety Measures (To Be Carried Out By The Owner)
It should be noted that the owner is responsible for the following aspects with regard to the operating and maintenance personnel Providing instruction in the protective devices for the FRIABILIMETER Monitoring compliance with the safety measures. The frequency of the function tests described in chapter 9.3 must be complied with. -
Page 13: General Safety Notes
2. Disconnect the FRIABILIMETER from the electrical power supply before cleaning work. 3. Do not allow the FRIABILIMETER to get wet during transport, storage, cleaning and operation. 4. Make sure that the FRIABILIMETER is only operated when in correct working order. -
Page 14: Technical Data
Ambient temperature measurement +15 °C to +40 °C Atmospheric humidity 20 % - 80 % non-condensing Installation condition Level table surface without vibration VDE = Association for Electrical, Electronic & Information Technologies (Germany) 14 | 48 Operating instructions Friabilimeter | Revision 8.2... -
Page 15: Delivery, Transport And Storage
(IEC 60320 C13/C14 power connector cable), measuring caliper, can of Pfeuffer test malt 400 g, flat-blade screwdrivers 3x40 mm and 2x40 mm, plastic funnel, collecting vessel, small and large cleaning brushes and operating instructions. - Page 16 Note that the weight is approx. 12 kg. Figure 8: Unpacking V Move the FRIABILIMETER to the installation location, paying attention to the setup instructions in chapter 5. Keep the original packaging. Packaging for return delivery ...
-
Page 17: Installation And Commissioning
Make sure there is an adequate distance to all sides so that no heat buildup can occur. Do not set up the FRIABILIMETER close to apparatus/devices that are sensitive to dust. Avoid exposure to direct sunlight and extreme ambient conditions. -
Page 18: Function
Operating hours counter Sequence of functions The FRIABILIMETER is a friability measuring instrument for barley malt. The friability is measured using a mechanical abrasion process. Weigh out a cleaned sample of 50 g on a balance with 0.01 g accuracy, and fill the sample. Pull the pull handle and engage it in the bottom position. -
Page 19: Operation
Start key Figure 10: FRIABILIMETER control elements 7.1.1 Main switch ON/OFF The main switch ON/OFF switches the FRIABILIMETER on and off. After switching on, the "On" LED lights up green. 7.1.2 Pull handle The pull handle applies pressure to the pressure roll, or removes the pressure. -
Page 20: Preparations
Malt samples must be stored in an air-tight container with little or no air inclusion. Fill and seal the container immediately after taking out the sample. It is necessary to calibrate the FRIABILIMETER in relation to a standard malt with a known friability. If the friability result differs from the accepted value by more than r... -
Page 21: Weighing Out The Sample
Figure 12: Filling the sample NOTICE The FRIABILIMETER has a safety circuit. The devices switches off immediately when the front hood is removed! The investigation result will be falsified if the correct running time (8 minutes) is not respected. Repeat... - Page 22 Press the start key. The green "On" LED goes out and the "Operation" LED flashes green. The FRIABILIMETER switches off automatically after eight minutes. If the LED "Operation" lights up red, the front hood has not been put on, or not put on correctly.
-
Page 23: Emptying The Sample
Emptying the content of the sieve drum NOTICE The sieve drum can be damaged if it rolls off the work surface. Always put down the sieve drum flat. Figure 19: Putting the sieve drum down flat Revision 8.2 | Operating instructions Friabilimeter 23 | 48... -
Page 24: Evaluation
WH = 2 x 0.76 g WH = 1.5 % WH = Whole hyaline in percent (%) - stated to one decimal place = Mass of the manually separated out whole grains in grams. 24 | 48 Operating instructions Friabilimeter | Revision 8.2... -
Page 25: Part Hyaline (Partially Non-Comminuted Grains) Ph
Switching off the FRIABILIMETER Switch off the device at the main switch position OFF. Clean the FRIABILIMETER and the sieve drum after each investigation, see chapter 9. Reinsert the sieve drum and put on the front hood. -
Page 26: Checking The Device Settings
Checking the device settings The Checking the device settings chapter is only intended for specialists. To ensure an accurate investigation, it is essential for the device settings of the FRIABILIMETER to be checked at regular intervals. The FRIABILIMETER is equipped with an operating hours counter as standard. Older devices can be retrofitted by Pfeuffer GmbH. -
Page 27: Abrasion On The Drive Rolls
If the diameter is less than Ø 39.0 mm, have the drive roll renewed by a specialist or by Pfeuffer GmbH's customer service (see chapter 9.6 and 9.6.1). Make a note of the renewal, the calibration and the subsequent check with test malt in a test log (see master copy on last page). -
Page 28: Precise Adjustment Using The Setscrew
(see master copy on last page). Disconnect the mains cable from the electrical power supply, or pull out the coupler. There is a plastic cap on the top of the FRIABILIMETER. Under this plastic cap, there is a setscrew inside the housing. -
Page 29: Adjustment By Moving The Detent Plate
Then tighten the two countersinking screws firmly again. Make a note of the movement of the detent plate and the subsequent check with test malt in a test log (see master copy on last page). Revision 8.2 | Operating instructions Friabilimeter 29 | 48... -
Page 30: Maintenance And Cleaning
The "Maintenance and cleaning" chapter is only intended for specialist operators. NOTICE Opening the housing and inappropriate operation will invalidate the warranty. To ensure trouble-free operation, it is essential for the FRIABILIMETER to be cleaned and maintained at regular intervals. DANGER... -
Page 31: Maintenance
The FRIABILIMETER should therefore be checked for wear and tear at regular intervals. The inspection intervals depend on the frequency of use and the ambient conditions to which the FRIABILIMETER is exposed. Only through regular checks (visual inspection) can damage to the device caused during use be detected early and reliably. -
Page 32: Tools
1-2 mm flat-blade screwdriver for sliding pins • 10 mm hexagon wrench for sliding pins 2 mm Allen key for chain sprockets and 4 mm Allen key for pull handle • 32 | 48 Operating instructions Friabilimeter | Revision 8.2... -
Page 33: Renewing The Pressure Roll
8.5 and 8.6. Make a note of the renewal, the calibration and the subsequent check with test malt in a test log (see master copy on last page). Revision 8.2 | Operating instructions Friabilimeter 33 | 48... -
Page 34: Working Inside The Housing
The warranty offered by Pfeuffer GmbH will be invalidated if the housing is opened. Pfeuffer GmbH expressly points out that fitting spare parts and renewing wearing parts are procedures which require a certain level of experience! This work should only be carried out by a specialist if it is not possible to send the FRIABILIMETER to Pfeuffer GmbH' customer service. -
Page 35: Renewing Drive Rolls
Figure 31: Opening the housing Item Designation Rivets Pull handle (bottom engagement position) Serrated washer Countersinking screw M4x16 mm Countersinking screw M4x12 mm Motor plug Drive roll, left Drive roll, right Pressure roll Revision 8.2 | Operating instructions Friabilimeter 35 | 48... - Page 36 Carefully pull the plug upward off the motor. Figure 33: Disconnecting the motor plug Unscrew the two upper chain sprockets using the Allen screws, with an Allen key (2 mm). Figure 35: Unscrewing the chain sprocket 36 | 48 Operating instructions Friabilimeter | Revision 8.2...
- Page 37 Keep a gap (A) of about 0.2 mm between the chain sprocket and bearing tube. Check this gap with a feeler gage. Grease Figure 39: Drawing showing change of drive roll Revision 8.2 | Operating instructions Friabilimeter 37 | 48...
-
Page 38: Renewing The Timer
Take off the front hood and the sieve drum. Drill out the rivets behind the filling funnel. Engage the pull handle in the bottom position. Unscrew the pull handle using an Allen key (4 mm). 38 | 48 Operating instructions Friabilimeter | Revision 8.2... - Page 39 Unscrew the four fillister head screws for the timer. Pull the timer carefully downwards and out a little. Remove the cover. The circuit board is in the cover: Revision 8.2 | Operating instructions Friabilimeter 39 | 48...
- Page 40 Attach the front plate using the four outer countersinking screws. Pay attention to the installation position of the two upper serrated washers, see Figure 31. Screw the pull handle in firmly. Insert the sieve drum and put on the front hood. 40 | 48 Operating instructions Friabilimeter | Revision 8.2...
-
Page 41: Renewing The Motor
(with lock washers and plain washers). GNYE Item Designation Motor Motor plug Fillister head screw M4x12 mm Lock washer M4 Plain washer M4 Motor plate Chain sprocket Motor pin Figure 45: Motor, complete Revision 8.2 | Operating instructions Friabilimeter 41 | 48... -
Page 42: Checks
If all functions are correct, the machine can be handed over to the owner. NOTICE Following cleaning, maintenance or exchanging wearing parts, check that all safety devices are functioning correctly. 42 | 48 Operating instructions Friabilimeter | Revision 8.2... -
Page 43: Malfunctions - Causes And Rectification
Appropriate tools and test instruments must be provided to these personnel. If the specified measures do not prove successful, contact Pfeuffer GmbH. It is important for all questions to specify the correct type designation, serial number and year of manufacture. - Page 44 Calibrate, see chapters 8.5 and 8.6. Renew worn parts, see chapters 9.5 and The timer runtime is incorrect. Check the runtime with a stopwatch. Checking and renewal by Pfeuffer GmbH or by a specialist, see chapter 9.6.2. The friability result The contact pressure of the...
-
Page 45: Renewing The Internal Fuse
Renew the glass microfuse. Insert the plug connection back into the IEC C14 power connector. The FRIABILIMETER is ready to operate again. Figure 46: Renewal of the internal fuse Revision 8.2 | Operating instructions Friabilimeter 45 | 48... -
Page 46: Spare Parts And Accessories
We wish to point out expressly that replacement and accessory parts not supplied by us will not have been tested and approved by us either. Installing and/or using such products can thus result in the design properties of the FRIABILIMETER being negatively impaired. -
Page 47: Emergency
Emergency Emergency In an emergency, disconnect the FRIABILIMETER from the electrical power supply. Dismantling and disposal Dismantling and disposal is only allowed to be carried out by specialist personnel. DANGER Touching live parts can be fatal! It is essential to comply with the switch-off procedure prior to cleaning, maintenance or repair work! (see chapter 2.9) -
Page 48: Test Log
Master copy Test log This log is intended to allow the owner-operator to document the test status of the FRIABILIMETER. Company, location ___________________________________ Company stamp: Year of manufacture _________________________________ Serial number ______________________________________ Operating hours _____________________________________ Check Before each check, first carry out an investigation and dispose of this sample afterwards without logging the values.
