Operating instructions

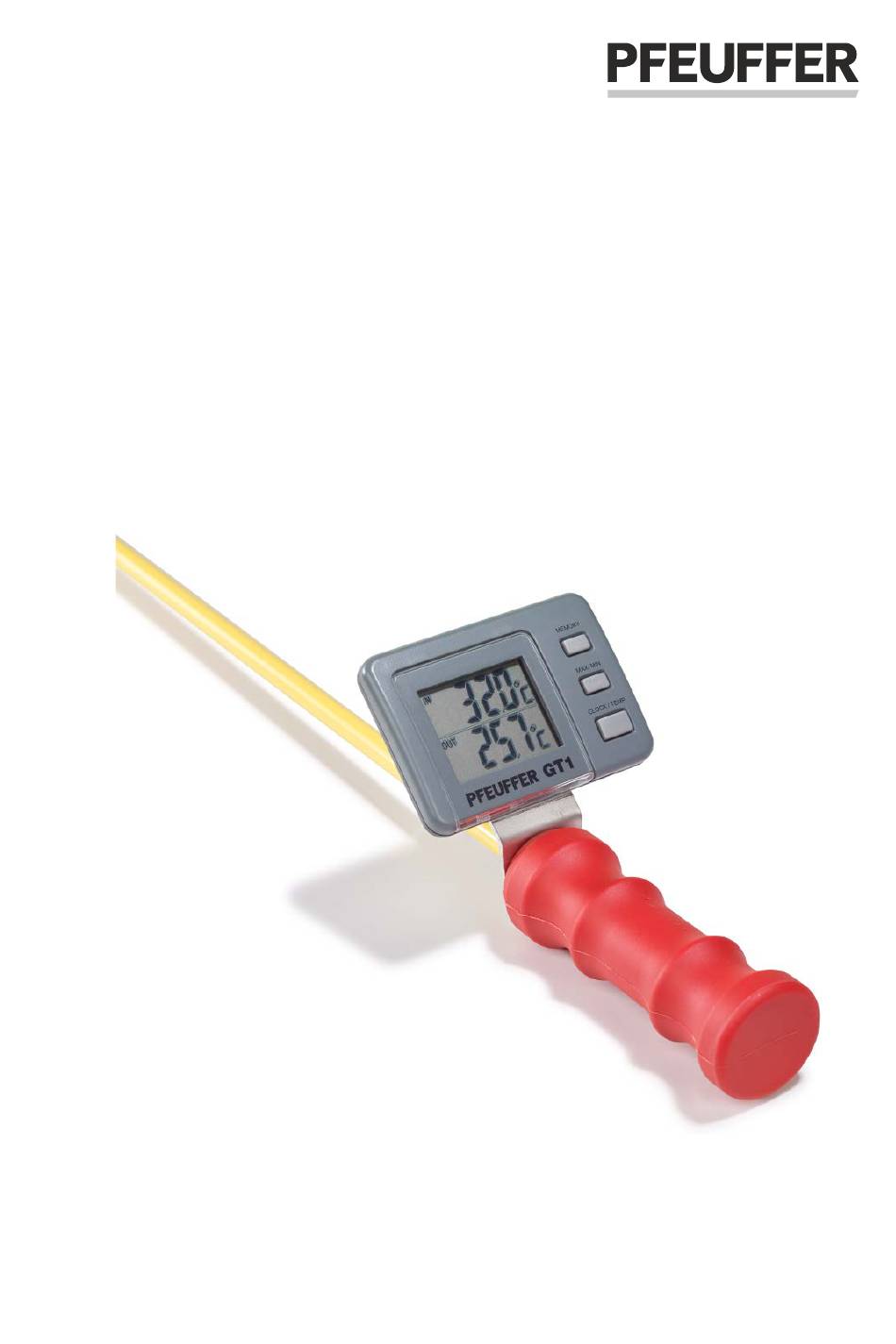

GT 1
Temperature measuring probe
Pfeuffer GmbH
Flugplatzstraße 70
97318 Kitzingen
GERMANY
Phone: +49 9321 9369-0
info@pfeuffer.com
Revision 4/10.02.2021
www.pfeuffer.com
Translation of the original operating instructions
Advertisement
Table of Contents
Related Manuals for Pfeuffer GT 1
Summary of Contents for Pfeuffer GT 1
- Page 1 Artikelnummer Betriebsanleitung: 1332 1197 Item no. operating instructions: Operating instructions GT 1 Temperature measuring probe Pfeuffer GmbH Flugplatzstraße 70 97318 Kitzingen GERMANY Phone: +49 9321 9369-0 info@pfeuffer.com Revision 4/10.02.2021 www.pfeuffer.com Translation of the original operating instructions...
- Page 2 These operating instructions form part of the temperature measuring probe GT 1 and must be available to the operating personnel at any time. They are intended for the owner of the system, the operating personnel and the specialists responsible transport,...
-
Page 3: Table Of Contents
Cleaning ....................... 18 Maintenance ......................18 7 Malfunctions – causes and rectification..............19 8 Spare parts ......................19 9 Disposal........................19 Measurement table for haystack ................20 Revision 4 | Operating instructions temperature measuring probe GT 1 3 | 20... -
Page 4: Introduction
It has two temperature sensors, one in the measuring tip (OUT) and one in the housing (IN). The GT 1 is not waterproof and designated for use only in closed rooms. Protect it against moisture and humidity. -
Page 5: Declaration Of Conformity
The aforementioned product complies with the requirements of the following directives: 2014/35/EU Low voltage 2014/30/EU Electromagnetic compatibility (EMC) Any modification to the GT 1 not agreed with us shall result in this declaration losing its validity. Kitzingen, ________________ ___________________________________ Lothar Pfeuffer, General Manager... -
Page 6: Structural Features Of The Danger Notes
Introduction Structural features of the danger notes The operating instructions from Pfeuffer GmbH contain instructions that you must comply with for your personal safety as well as to avoid damage to property. Information intended for your personal safety is highlighted by a warning triangle. -
Page 7: Safety
The safety devices and safety information given in these operating instructions must be complied with. Do not allow the GT 1 to become damp during transport, storage, cleaning and operation. Only use the GT 1 when it is in correct condition. -
Page 8: Technical Data
-10 °C to +60 °C storage and transport Measuring range -10 °C to +70 °C Measurement accuracy (knife tip) ±1 °C Atmospheric humidity 20 % – 80 % non-condensing 8 | 20 Operating instructions temperature measuring probe GT 1 | Revision 4... -
Page 9: Delivery, Transport And Storage
Immediately inform the supplier or Pfeuffer GmbH. Intermediate storage The shipping packaging of the GT 1 and its accessories and replacement parts is designed for a storage period of six months from delivery. Do not place any heavy objects on the packaging. -
Page 10: Operation
Insert the battery according to the polarity. Close the cover. The GT 1 is ready for use. Figure 2: Insert battery 10 | 20 Operating instructions temperature measuring probe GT 1 | Revision 4... -
Page 11: Display Modes
Operation To avoid battery leakage, remove the battery when not using the GT 1 for a longer period. C AUTION A non-rechargeable battery cannot be recharged! This can lead to dangerous acid leakage. Acid contact can cause skin irritation, burns and corrosion. -
Page 12: Max / Min Memory
MEMORY. The display shows MEM before the temperature value. Then press once the button MAX / MIN to read the corresponding temperature maxima. 12 | 20 Operating instructions temperature measuring probe GT 1 | Revision 4... -
Page 13: Setting The Time
(degrees Fahrenheit). To switch off the GT 1, remove the battery in this case. Or you can switch on or off the GT 1 directly with the ON / OFF slide switch. Revision 4 | Operating instructions temperature measuring probe GT 1... -
Page 14: Perfroming Measurements
Temperatures below -10 °C are displayed with LLL, temperatures over +70 °C are displayed with HHH. The GT 1 collects the temperature of the grain that is directly in contact with the tip of the probe. There can be huge temperature differences depending to the different points in the pile/bale. - Page 15 take out the knife carrier of the packaging first at the measuring point. unscrew the knife carrier from the GT 1 after each measurement. clean the knife carrier and the knife carefully. keep it in the packaging intended for it.
-
Page 16: 5.7.2 Influence Of Moisture And Storage Temperature On The Shelf Life Of Grain
22 – 25 5 – 8 10 – 25 weeks 25 – 30 4 – 5 14 – 30 days More than 30 4 – 5 a few days 16 | 20 Operating instructions temperature measuring probe GT 1 | Revision 4... -
Page 17: 5.7.3 Monitoring Of Grain Stocks Is Essential
This has a favorable drying effect, even if only a small one. (...) Measurement uncertainty The accuracy of the results of the GT 1 is influenced by many parameters. Exposure time in the bulk: The exposure time in the bulk is decisive for the ... -
Page 18: Cleaning And Maintenance
The inspection intervals depend on the significance of the measured value, the frequency of use and the ambient conditions to which the GT 1 is exposed. Only through regular checks (visual inspection) can damage to the device caused during use be detected early and reliably. -
Page 19: Malfunctions - Causes And Rectification
Item number Knife tip (knife and knife carrier) 2150 0200 Disposal The GT 1 must be disposed of according to applicable local environmental regulations (directive for electric and electronic equipment waste 2012/19/EU). Dispose of battery, see chapter 5.2. Revision 4 | Operating instructions temperature measuring probe GT 1... -
Page 20: Measurement Table For Haystack
Measurement table for haystack Name: ____________________________ Location: ____________________________ Period Measurement point and depth Temperature 2 days after putting into storage Date: 1 week after putting into storage Date: 2 weeks after putting into storage Date 3 weeks after putting into storage Date 4 weeks after...
