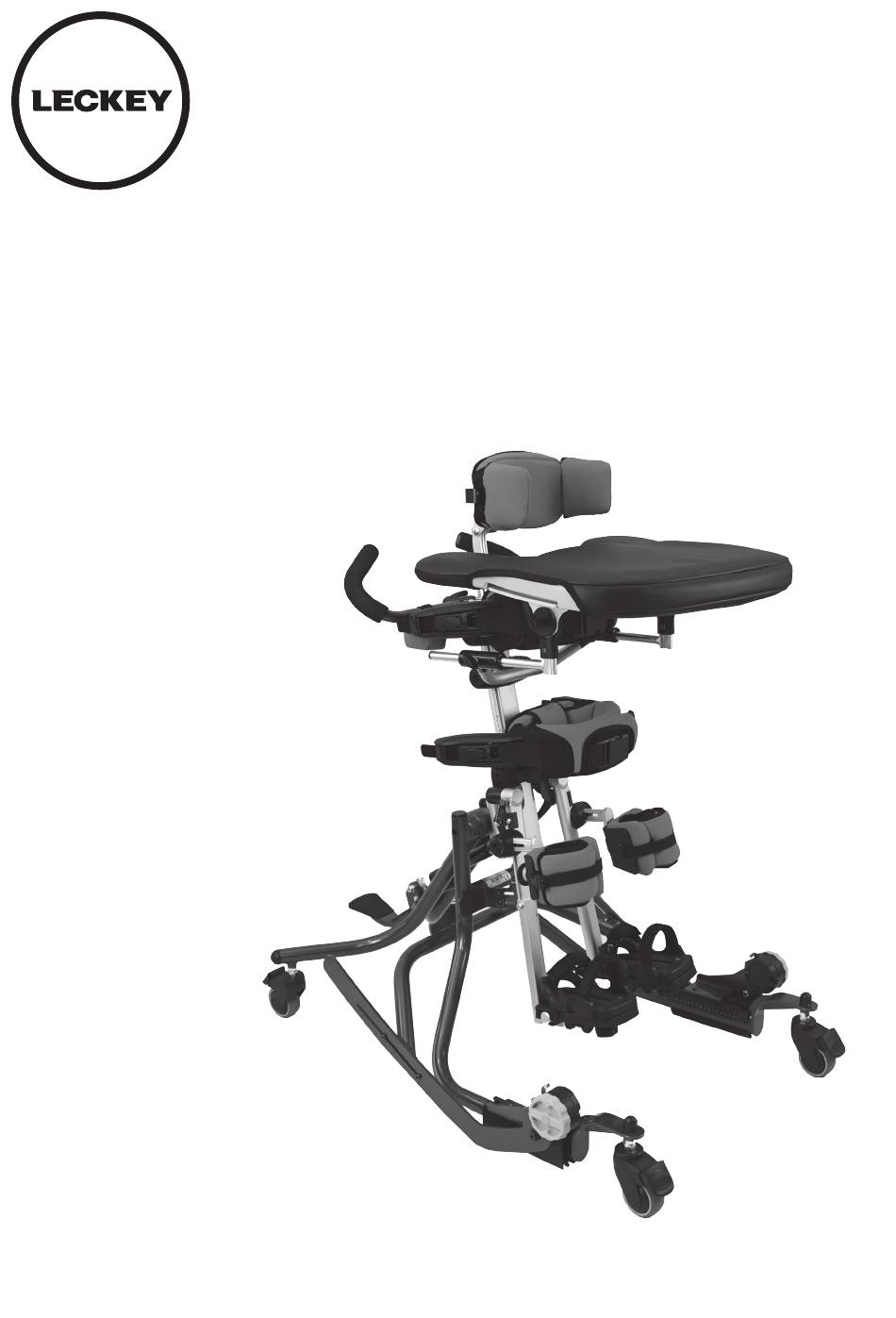

- Page 1 Squiggles TT User Manual Supporting Children...
- Page 2 Squiggles TT User Manual The Squiggles TT is a targeted trainer that has been designed to offer the support your child needs in an upright, standing posture. The stander is modular in design and has been developed for use in school or at home.
-
Page 3: Table Of Contents
17. Technical information p.28 1.0 Intended Use The Squiggles TT is a standing frame that enables targeted training which has been designed for children with disabilities aged 1–5 for use at home or in the classroom. The maximum user weight is 22kgs (48.4lbs). Suitable for children with... -
Page 4: Terms Of Warranty
Leckey manufactured products and components. 4.0 Product History Record Your Leckey product is classified as a Class 1 Medical device and as such should only be prescribed, set up or reissued for use by a technically competent person who has been trained in the use of this product. -
Page 5: Safety Information
6.4 If in any doubt to the 6.14 Do not place hot continued safe use of your 6.9 When the Squiggles TT objects greater than product or if any parts is used on the Pivot chassis 40ºC on the tray. -
Page 6: Contra-Indications
Squiggles TT User Manual 7.0 Contra-indications 7.1 Contra-indications 7.2 Caution to be taken with movement which presents a manual handling Children experiencing Children with a history of risk for child and carer, discomfort that cannot be recent fractures, presenting compromised respiratory... - Page 7 Squiggles TT User Manual The Targeted Trainer has been designed to fit with a pivot chassis. 8.2 Attaching stander to pivot chassis To attach the stander to the Pivot Chassis, pull the locking pin out , slide the central spine into the...
- Page 8 Squiggles TT User Manual 8.4 Attaching the headrest To attach the Leckey headrest first open the locking lever by pressing the safety button and pulling the handle Then slide the stem into the receiving bracket on the central spine, set to...
- Page 9 Squiggles TT User Manual 8.6 Attaching the sandals Place the sandal so that the attachment bolt goes through the slot in the footplate. To secure, on the underside of the footplate place the rubber washer , followed by the metal...
- Page 10 Squiggles TT User Manual 8.8 Attaching the tray in supine The tray is attached to the stander by inserting the tubes into the receiving brackets. Once the tray is located in position the knobs should be tightened. The cut out of the tray should always be facing the child.
-
Page 11: Fitting The Cushions
Squiggles TT User Manual p.11 9.0 Fitting the Cushions 9.1 Knee support pads Unscrew the washer and bolt from the knee cup using . Ensure the Leckey tool the buckles are facing away from the frame. Holding the knee cup in position against... - Page 12 Squiggles TT User Manual 9.4 Attaching the lateral covers Slide the cover over the front of the lateral. Without Cover Pull the tabs around the back and secure the Velcro in place. With Cover 9.5 Horizontal support cushion Slide the cushion over the horizontal support plate.
- Page 13 Squiggles TT User Manual p.13 9.6 Pelvic and Trunk wrap Fit the cushion over the Trunk Wrap plastic support Cushion Slide the tab up from below and attach the velcro to the Pelvic Wrap tab over the top Screw the wrap to the plate through the holes on the wrap.
- Page 14 Squiggles TT User Manual 10.0 Clinical setup 10.1 Before you start It is recommended before setting up the Squiggles TT that a mat assessment is done. To do this, place the child in supine (lying on their back) on the mat. You will need to measure from the bottom of the child’s foot in a...
- Page 15 Squiggles TT User Manual p.15 10.3 Adjusting the push handle To prevent finger nipping always hold the push handle with one hand whilst making the adjustment with your other hand. The push handle height can be adjusted by loosening the Allen bolt...
- Page 16 Squiggles TT User Manual 10.5 Lateral supports Loosen the hand knob to adjust the width of the lateral supports and re-tighten when you have achieved the desired position. If the lateral supports are attached with bolts instead of hand knobs they can be adjusted with the multi tool.
- Page 17 Squiggles TT User Manual p.17 10.7 Headrest adjustment The headrest should only be used for horizontal transfer and when the child has poor head control and needs training in this segment. To adjust the height, depth and angle of the contoured...
- Page 18 Squiggles TT User Manual 10.9 Sandals positioning To position the sandals simply loosen the knob under the footplate, select the position you require and re-fasten the knob. To position the user’s feet in the sandals secure the Velcro straps provided so the foot is held in place.
- Page 19 Squiggles TT User Manual p.19 10.11 Adjusting the height of the tray The height adjustment knobs for the tray are located on either side of the central spine. Loosen the 2 knobs , select the required height and re-tighten. 10.12 Adjusting the depth...
- Page 20 6 by a technically and clinically competent person who has been trained in the use of the product. Leckey recommend that a written record is maintained of all parent and carers who have been trained in the use of this product.
- Page 21 Squiggles TT User Manual p.21 11.2 Pelvic support Ensure the rachet straps are unlocked . Thread the clip and buckle through each side of the pelvic wrap and secure around child’s hips . Push down on the rachet strap from above to tighten further .
- Page 22 Squiggles TT User Manual 11.5 Head support and horizontal support Keep this in position until the child is fully upright and then remove horizontal support. Keep headrest in position if the child has no/ poor head control . If...
- Page 23 Squiggles TT User Manual p.23 11.7 Dynamic base To engage the dynamic base: Face the Squiggles TT, turn the dial on each side of the base towards yourself . Go to the back and lift the cross bar (with your foot) until you hear a click.
-
Page 24: Cleaning & Care Information
Squiggles TT User Manual 12.0 Cleaning & Care Information How to Maintain When cleaning we recommend that you use only warm water and a non-abrasive detergent. Never use organic solvents or dry cleaning fluids. Upholstery and fabrics 1. The upholstery and fabrics can be cleaned by hand whilst in place. -
Page 25: Daily Product Inspection
4. Check all Velcro strips and brush fluff to ensure straps secure firmly. If in any doubt to the continued safe use of your Leckey product or if any parts should fail, please cease using the product and contact our Customer Care Team or your local... -
Page 26: Annual Product Inspection
If in any doubt to the continued safe use of your Leckey product or if any parts should fail, please cease using the product and contact our Customer Care Team or your local dealer as soon as possible. -
Page 27: Reissuing Leckey Products
If in any doubt to the continued safe use of your Leckey product or if any parts should fail, please cease using the product and contact our Customer Care Team or your local dealer as soon as possible. -
Page 28: Technical Information
Squiggles TT User Manual p.28 17.0 Technical Information Product and Accessory Codes 188-1600 Stander support 184-764 Pivot Chassis 188-1810-02 Cover pack – Blue 188-1810-04 Cover pack – Purple 188-1810-09 Cover pack – Red 188-1810-09VIN Cover pack – Red Vinyl 188-680-02/04/09/09VIN... - Page 29 Squiggles TT User Manual p.29 Notes...
