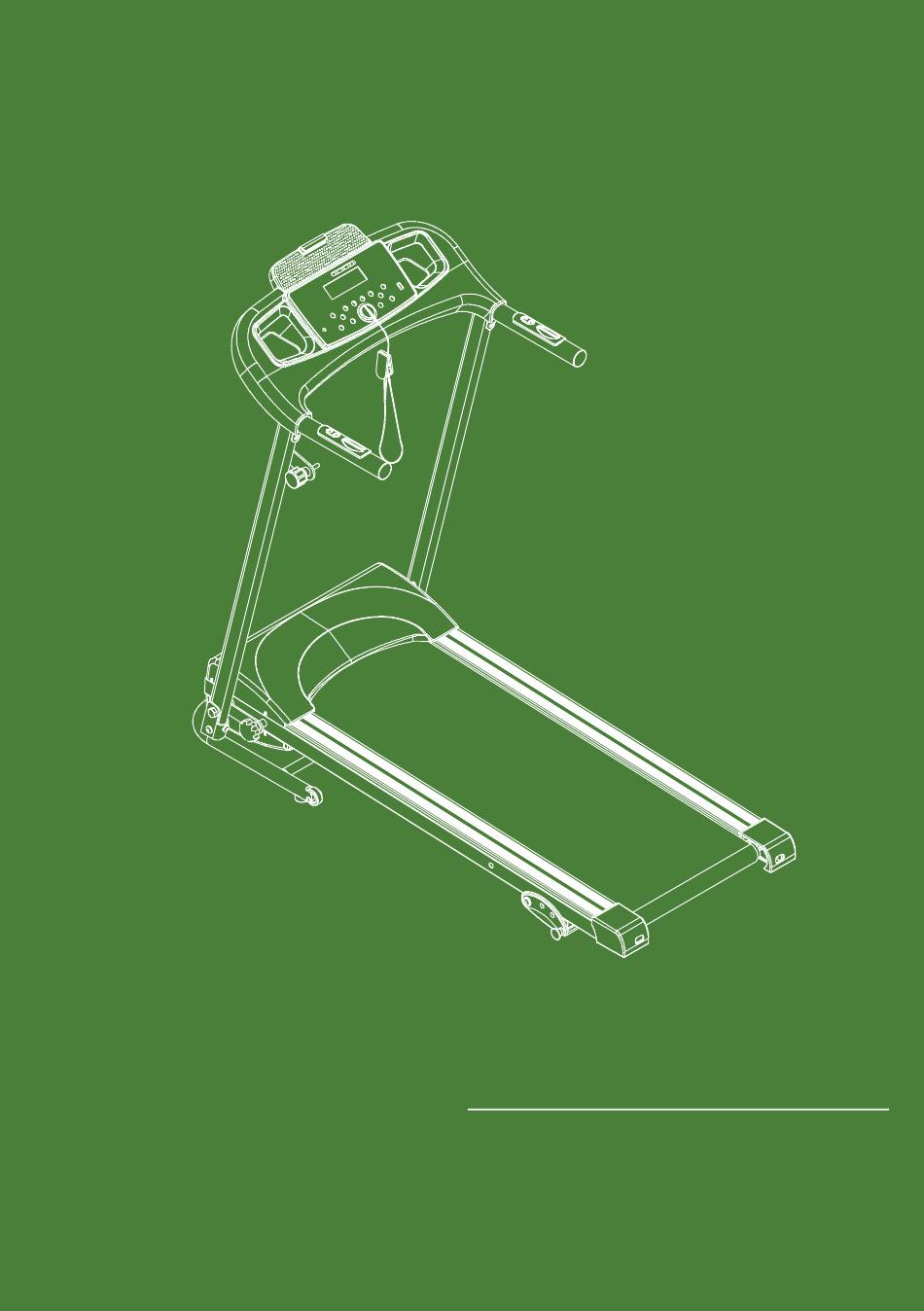

- Page 1 Electric Folding Treadmill 1609A Thank you very much for purchasing our product. Please read this manual carefully before useing it and keep the manual at the proper place .
- Page 2 As shoppers, we're always trying to find the perfect balance between quality & value. We believe we've achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price. Always...
-
Page 3: Safety Notice
CAUTION To avoid injury please read this manual carefully before operating this machine For safety purpose, do not stand on running belt while start. Ÿ Please stop immediately if you experience any kind pain, including but not limited to Ÿ chest pains,nausea, dizziness, or cramp. -
Page 4: Caution During Use
CAUTION DURING USE Keep both the machine and power cord away from heated surfaces. If you do not feel well before using, please consult your doctor or coach. Ÿ Please unplug the equipment when not in use. Ÿ Please unplug the treadmill before cleaning, moving or change parts for the treadmill. Ÿ... -
Page 5: Tools Required
TOOLS REQUIRED ALLEN WRENCH SILICONE OIL SAPNNER (PROVIDED) (PROVIDED) (PROVIDED) HARDWARE Safety Key Round Washer Arc Washers 1 PCS 2 PCS 4 PCS Short Bolt Lock Knob Stretch Knob End Cap 6 PCS 1 PCS 1 PCS 2 PCS PRODUCTS MAIN PARTS Cup Holder 1、... - Page 6 PARTS PARTS RUNNINGDECK HEADER PARTS PRODUCT ASSEMBLY First, remove the pre-install bolts & nuts at the top of the upright tubes. Then lift the left and right poles respectively, and use the removed bolts & nuts to fix the tubes with control panel.
- Page 7 PARTS PRODUCT ASSEMBLY Lift up the whole control panel with tubes. Use Short Bolt (part 6) & Round Washer (part 2) to fix the left side of tubes with base; Use Short Bolt (part 6 ) & Arc Washer (part 3) to fix the back of tubes with base. Repeatedly the step to fix the right tubes.
- Page 8 PARTS END CAPS ASSEMBLY Lift up the running deck and fix it with stretch knob. Remove the pre-installed screws both left & right side at the end of frame. Put the end caps both left & right side at the end of frame and secure with screws removed.
- Page 9 PARTS PRODUCT ASSEMBLY Use Short Bolt (Part 6) and Arc Washers (Part 3) to fix the panel to the tubes Put Lock knob (Part 4) and Stretch Knob (Part 5) to the treadmill. Put the safety key to the panel. Assembly finished.
-
Page 10: Folding Up And Setting Down
Unscrew the Lock knob (part 4) on the base frame and pull out the stretch knob (part 5). Lift the base frame to the place where the Lock knob (part 4) can put in to fix the base frame. FOLDING UP AND SETTING DOWN Product name JK1609A Voltage 110V Frequency... - Page 11 PARTS CONSOLE INSTRUCTON SPEED MODE Connect machine to power, turn on the switch at the front base frame, then press "START" key, the machine will start from 0.5mph/h after 3 seconds. Please make sure the safety key is on the panel before using.
- Page 12 TOTAL 12 PROGRAMS AS BELOW...
- Page 13 PARTS USAGE OF SILICONE OIL Foryourconvenience,youcanscanthisQRcodetoseethevideofor lubricatingtherunningbeltonYouTube,orinputthislinktowatch. https://youtu.be/MksJIoi8Obo PARTS RUNNING BELT ADJUSTMENT After installation video tutorial RUNNING BELT DEVIATE TO LEFT RUNNING BELT DEVIATE TO RIGHT RUNNING BELT LOGJAM...
- Page 14 RUNNING BELT DEVIATE TO LEFT Foryourconvenience,youcanscanthisQRcodetoseethevideoon YouTube,orinputthislinktowatch. https://youtu.be/uoXqZXk1Bx8 RUNNING BELT DEVIATE TO RIGHT Foryourconvenience,youcanscanthisQRcodetoseethevideo onYouTube,orinputthislinktowatch. https://youtu.be/LGKKCk-yivM RUNNING BELT LOGJAM Foryourconvenience,youcanscanthisQRcodetosee thevideoonYouTube,orinputthislinktowatch. STEP1:https://youtu.be/Xqri9ug5J7c STEP2:https://youtu.be/nyZ75WFTZZw （STEP1） （STEP2） PARTS DAILY MAINTAINANCE 1. Please disconnect power before checking the machine or cleaning. 2.
- Page 15 PARTS EXERCISE GUIDE Before beginning any exercise program, consult your physician. PLEASE NOTE: This is important especially if you are over the age of 45 or individuals with pre-existing health problem. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises.
- Page 16 HEART RATE MAXIMUM COOL DOWN THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE. REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES The most important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn.
- Page 17 PARTS TROUBLE SHOOTING If you are not sure about how to do that, please contact our customer service and we will provide the best solution for you.
-
Page 19: Maintenance
Maintenance Dear Sir/Madam: One year warranty Product Inquiry Product Assembly Orders FAQ Returns & Refunds WARRANTY ★★★★★ Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, we will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Need help?
Do you have a question about the JK1609A and is the answer not in the manual?
Questions and answers
How do you remove Err on the electric folding treadmill model JK 1609A
@Ron Spitulski
To remove the "Err" message on the FYC electric folding treadmill model JK1609A, pull out the safety key, then put it back in. The screen will first show "OFF," indicating the reset.
This answer is automatically generated
How do you get the distance you have covered to display?
To display the distance covered on the FYC JK1609A, press the "MODE" key. When the SCAN light is on, the screen will cycle through speed, time, and calories every 5 seconds. However, the document does not mention distance as part of the display. Therefore, distance may not be directly shown.
This answer is automatically generated
my treadmill will randomly just stop while in use, i can then start again but what's causing it to stop. usually after about 10 minutes, but sometimes even 3 minutes
The FYC JK1609A treadmill may randomly stop during use due to the following reasons:
1. Safety Key Removal – If the safety key is pulled out during operation, the treadmill will stop, and the screen will show "Err."
2. Auto Program Restrictions – During auto programs (P1-P12), the (-) and (+) keys are not available. If users try to adjust speed using these keys, they may need to exit the program or restart the machine.
3. Emergency Stop Activation – Pressing and holding the "STOP" key for 3 seconds will stop the treadmill.
4. Belt Issues – If the running belt is misaligned, jammed, or requires lubrication, it may cause the treadmill to stop unexpectedly.
5. Power or Connection Issues – Loose power connections or electrical interruptions can also cause the machine to stop.
Checking the safety key, ensuring proper belt maintenance, and verifying power connections may help resolve the issue.
This answer is automatically generated
how do i get out of AUX mood
