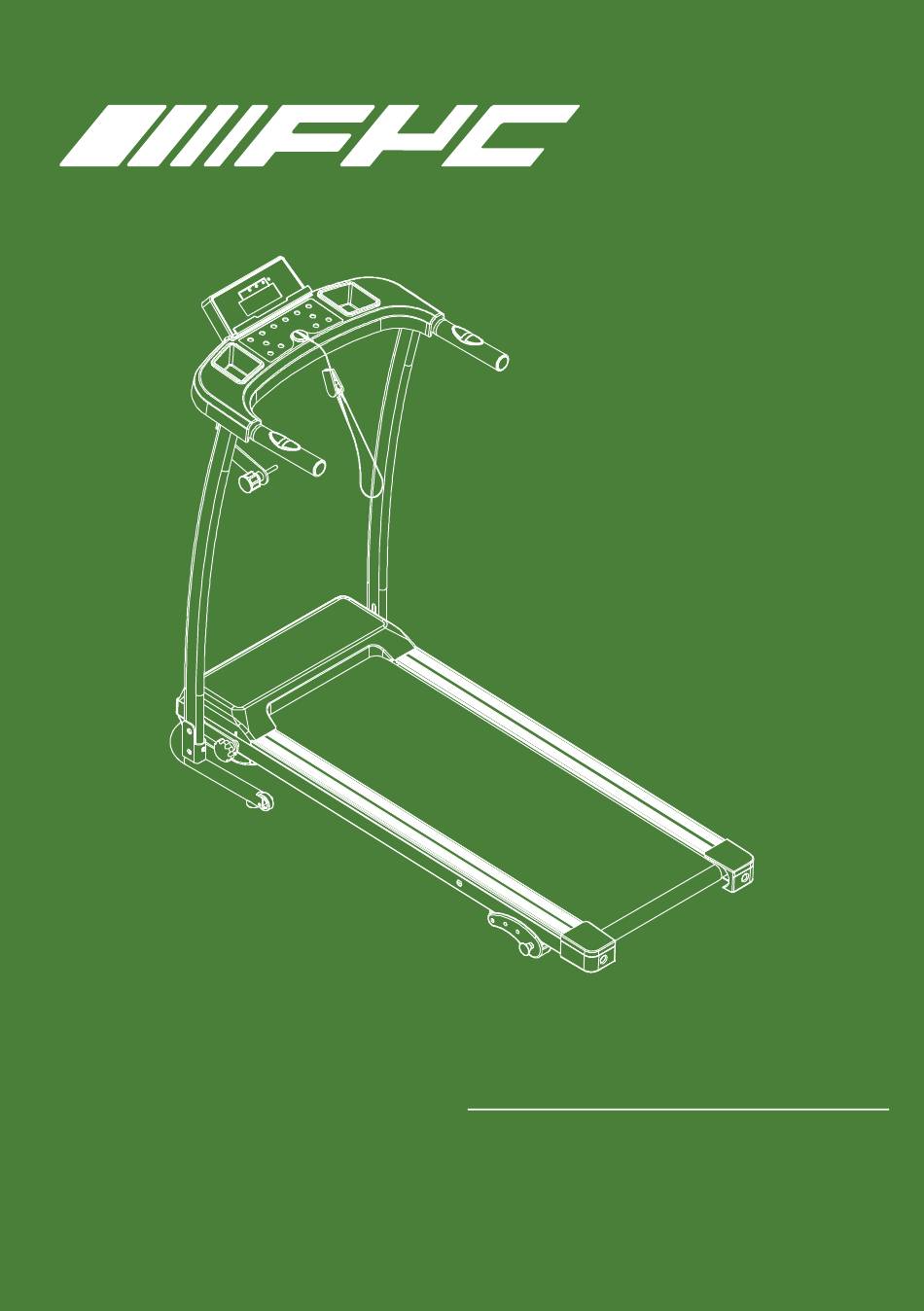

- Page 1 Electric Folding Treadmill 0805E-1 Thank you very much for purchasing our product. Please read this manual carefully before useing it and keep the manual at the proper place .
- Page 2 As shoppers, we're always trying to find the perfect balance between quality & value. At FYC, we believe we've achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality &...
-
Page 3: Safety Notice
CAUTION To avoid injury please read this manual carefully before operating this machine For safety , do not stand on the running belt while starting. Ÿ Please stop using immediately if you feel vomiting or jerky during using. Ÿ Please speed up slowly if needed. Ÿ... -
Page 4: Caution During Use
CAUTION DURING USE Keep both the machine and power cord away from heated surfaces. If you do not feel well before using, please consult your doctor or coach. Ÿ Please unplug the equipment when not in use. Ÿ Please unplug the treadmill before cleaning, moving or change parts for the treadmill. Ÿ... -
Page 5: Tools Required
TOOLS REQUIRED ALLEN WRENCH SILICONE OIL SAPNNER (PROVIDED) (PROVIDED) (PROVIDED) HARDWARE Safety Key Round Washer Arc Washers 1 PCS 2 PCS 2 PCS Lock Knob Short Bolt Stretch Knob Seat 1 PCS 4 PCS 1 PCS PRODUCTS MAIN PARTS Cup Holder 1、... - Page 6 PARTS PARTS RUNNINGDECK PARTS PRODUCT ASSEMBLY Lift the tubes with handrail. Tips: Open the package and take out the treadmill.Make sure there are no missing parts:...
- Page 7 PARTS PRODUCT ASSEMBLY Use Short Bolts (Part 5) & Arc Washers (Part 3) to fix the front of left & right upright tubes with the base frame. Then use Short Bolts (Part 5) & Round Washers (PART 2) to fix the side of left & right upright tubes with the base frame. Finally, use the Lock Knob (Part 4) to fix thebase frame.
- Page 8 PARTS PRODUCT ASSEMBLY Please check if the connecting wire cable is in good condition and connected well, then thread it to the tube Unscrew the preset screws & washers at the top of the upright tubes, then lift the control panel. Use the above preset screws &...
- Page 9 PARTS PRODUCT ASSEMBLY Put safety key and finish the assembly.
-
Page 10: Folding Up And Setting Down
Move the machine. UNFOLD: Pull out the stretch knob then fall down the running board and fix the machine with the fixed knob then use the machine after electrify. FOLDING UP AND SETTING DOWN Product name JK0805E-1 Voltage 110V Frequency 50-60Hz Speed... - Page 11 PARTS CONSOLE INSTRUCTON SPEED TIME DIST. WARNING: Keep young children away from this machine at all times.Contact with the moving surface may result in severe friction burns. SPEED SPEED START STOP MODE Press "START" key, the machine will start by 0.5MPH after 3 seconds. The power supply socket should be turned off at the wall, then insert the power cable into the wall and at the back of the machine.
- Page 12 TOTAL 12 PROGRAMS AS BELOW The speed and time of the pre-set programs are fixed and cannot be changed. The default time for the pre-set programs is 30 minutes. 0.5-6.5MPH/H...
- Page 13 PARTS USAGE OF SILICONE OIL Foryourconvenience,youcanscanthisQRcodetoseethevideofor lubricatingtherunningbeltonYouTube,orinputthislinktowatch. https://youtu.be/MksJIoi8Obo PARTS RUNNING BELT ADJUSTMENT After installation video tutorial RUNNING BELT SKEWS TO THE LEFT Then make the machine running without loading 1-2 minutes.Please Please adjust the belt like this to the middle position. RUNNING BELT SKEWS TO THE RIGHT Please adjust the belt like this to the middle position.
- Page 14 RUNNING BELT DEVIATE TO LEFT Foryourconvenience,youcanscanthisQRcodetoseethevideoon YouTube,orinputthislinktowatch. https://youtu.be/uoXqZXk1Bx8 RUNNING BELT DEVIATE TO RIGHT Foryourconvenience,youcanscanthisQRcodetoseethevideo onYouTube,orinputthislinktowatch. https://youtu.be/LGKKCk-yivM RUNNING BELT LOGJAM Foryourconvenience,youcanscanthisQRcodetosee thevideoonYouTube,orinputthislinktowatch. STEP1:https://youtu.be/Xqri9ug5J7c STEP2:https://youtu.be/nyZ75WFTZZw （STEP1） （STEP2） PARTS DAILY MAINTENANCE 1. Please disconnect power before checking the machine or cleaning. 2.
- Page 15 PARTS EXERCISE GUIDE Before beginning any exercise program, consult your physician. PLEASE NOTE: This is important especially if you are over the age of 45 or individuals with pre-existing health problem. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises.
-
Page 16: Heart Rate
HEART RATE MAXIMUM COOL DOWN THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE. REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES The most important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. - Page 17 PARTS TROUBLE SHOOTING Nosafetykeyonthepanel Putthesafetykeyonthepanel. Connectingwirecableloose/damage Removethemotorcoverandch eckalltheconnectingwirecable. fromthecontrolboard Nosafetykeyonthepanel Putthesafetykeyonthepanel. ------ Removethemotorcoverandchec Connectingwirecableloose/damage kalltheconnectingwirecable. fromthecontrolboard Pleaselubricatetherunningbelt andcheckifthemotorworkswell. OverloadProtection MotororControlBoarddamaged, pleasereplaceit. Checkwhetherthemotorwireis damagedorbroken. MOSProtection Replacethecontrolboard. Removethemotorcoverandcheck Connectingwirecableloose/damage alltheconnectingwirecable. fromthecontrolboard Electricmotordamage/broken Replacethemotor. Connectingwirecableloose/damage Removethemotorcoverandcheck alltheconnectingwirecable. fromthecontrolboard If you are not sure about how to do that, please contact our customer service and we will provide the best solution for you.
-
Page 18: Warranty
February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, FYC will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! If you have any issues with your orders, logistics, items, etc, please contact us bythe following way.
