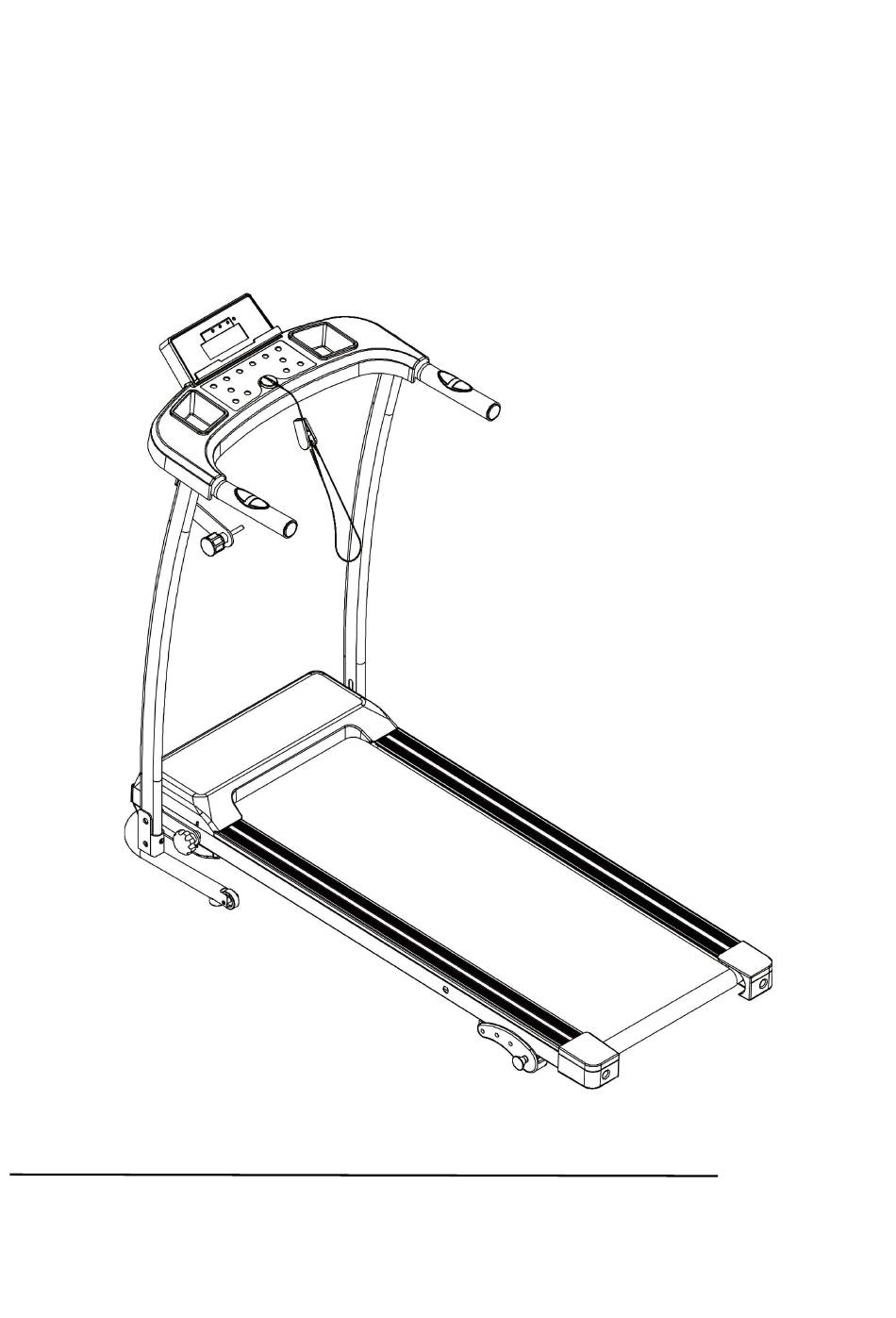

- Page 1 HOME USE TREADMILL INSTRUCTION Thank you very much for purchasing our product. Please read this instruction carefully before use it and keep the instruction at proper place.
-
Page 2: Safety Notice
1. CAUTION To avoid any hurts, please read this manual carefully before using. For safety purpose do not stand on running belt while start. Please stop immediately for any feeling of vomit、jerky during using. Please increase speed slowly if needed. ... -
Page 3: Technical Specification
Please do not stand directly on the belt while starting the machine. Do not disassemble the machine without conduct of professional person. Please make sure the running belt is fastened before using. 4. Technical Specification Product Name Treadmill Item No. JK0805E-1 Power 1.5HP Voltage 110V Frequency 50Hz Speed 0.5-6.5mph... -
Page 4: Assembly Instruction
5. Assembly Instruction Open the package and take out the treadmill. Make sure there are no missing parts: 1 x treadmill 1 x accessory package 1. Lift the tubes with handrail 2. Use short bolts (M8*16) and arc washers (M8) to fix the front of left & right upright tubes with the base frame. -
Page 5: Control Panel
base frame. Unscrew the preset screws & washers at the top of the upright tubes, then lift the control panel. 3. Use the above preset screws & washers to fix the panel to the upright tubes. 4. Unscrew the preset bolts at the inside of the left tube, and then use these 2 preset bolts to fix the stretch bolts seat to the inside of left tube. - Page 6 5. While the machine is in use and running, the “PROG” key cannot available. If you need to change the auto program, please select it first when the machine is on standby. 6. For emergency stop，please pull off the safety key. The machine will stop very slowly. Pull off safety key and the screen will show “Err”，put it back it will show “OFF”.
-
Page 7: Running Belt Adjustment
8. USAGE OF SILICONE OIL Before you start the treadmill, please lubricate the running belt first. Pull up the running belt slightly, apply silicone oil to the backside of the belt and the top surface of the running deck. Start the treadmill and keep it running for 3 minutes so that the oil spread and even out. -
Page 8: 11. Trouble Shooting
10. DAILY MAINTAINANCE 1. Please disconnect power before checking the machine or cleaning. 2. Clear belt and dial plate after use, at least once a week. 3. Check and tighten screws and spines at fixing point. 4. Do not hang clothes or other objects on the machine. 11.
