Summary of Contents for FYC JK0802

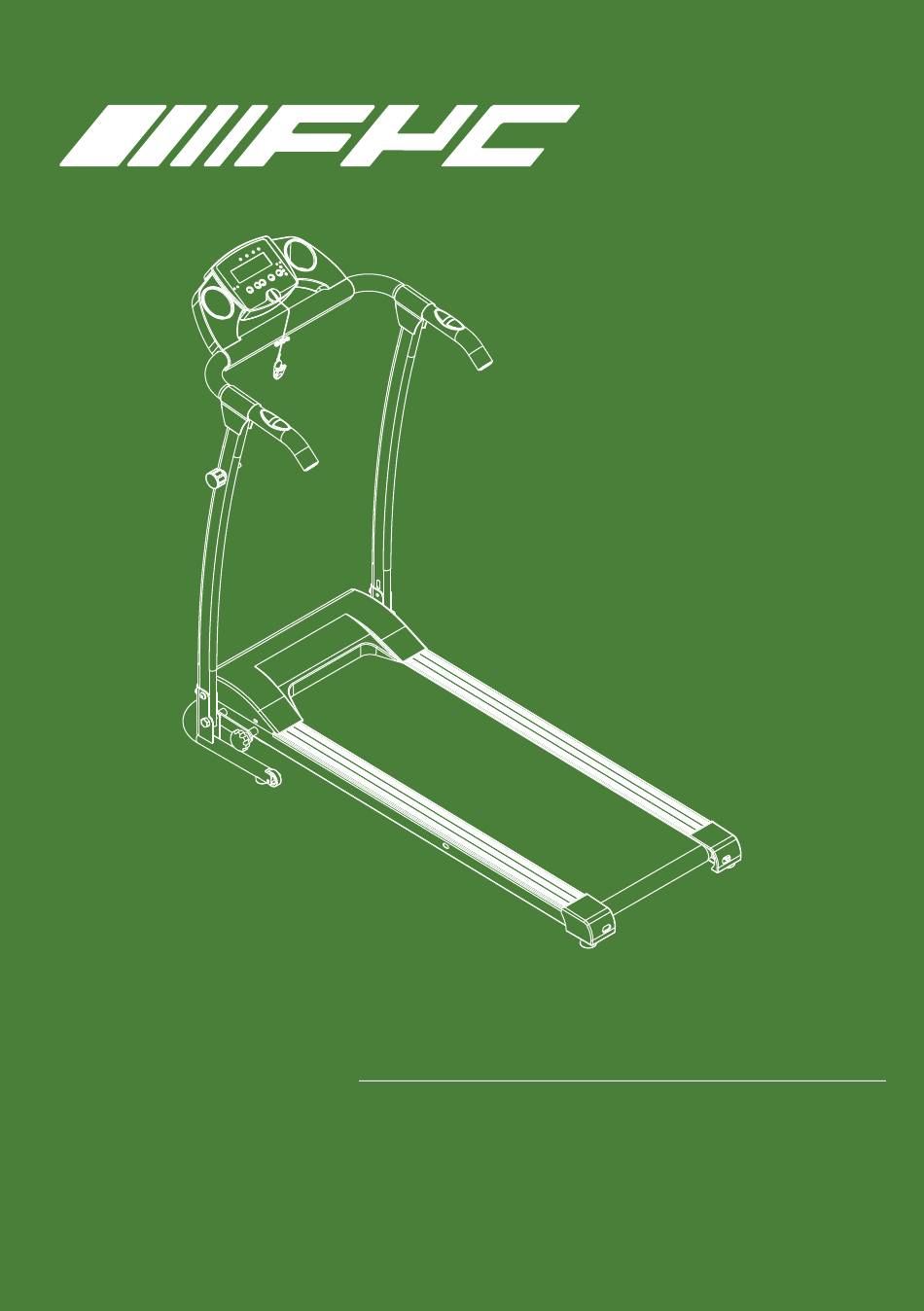

- Page 1 Electric Folding Treadmill JK0802 Thank you very much for purchasing our product. Please read this manual carefully before use it and keep the manual at proper place .
- Page 2 As shoppers, we're always trying to find the perfect balance between quality & value. At FYC, we believe we've achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality &...
-
Page 3: Safety Notice
CAUTION To avoid injury please read this manual carefully before operating this machine For safety purpose, do not stand on running belt while start. Ÿ Please stop immediately if you experience any kind pain, including but not limited to Ÿ chest pains,nausea, dizziness, or cramp. -
Page 4: Caution During Use
CAUTION DURING USE Keep both the machine and power cord away from heated surfaces. If you do not feel well before using, please consult your doctor or coach. Ÿ Please unplug the equipment when not in use. Ÿ Please unplug the treadmill before cleaning, moving or change parts for the treadmill. Ÿ... -
Page 5: Tools Required
TOOLS REQUIRED ALLEN WRENCH SILICONE OIL SAFETY KEY (PROVIDED) (PROVIDED) (PROVIDED) HARDWARE Round Washer Arc Washers Plastic Washer Handrail Cover Short Bolt M8*16 2 PCS 2 PCS 4 PCS 2 PCS 2 PCS Lock Knob MediumBolt Long Bolt Stretch Knob Fix Knob M8*30 M8*50... - Page 6 PARTS PARTS THE FUSELAGE PARTS PRODUCT ASSEMBLY Lift up the whole console. First use the Short Bolt (part 5) & Arc Washer (part2) to fix the back of upright tube; use the Medium Bolt (part 6) & Round Washer (part 1) to fix the side of upright tube. Repeat the above steps to the other side upright tube.
- Page 7 PARTS PRODUCT ASSEMBLY Lie down the console panel. Use Arc Washer (part 2) & Long Bolt (part 7) to fix the handrails. NOTE: PLEASE DO NOT PRESS THE CONNECTING WIRE IN CASE OF BEING DAMAGED/BROKEN. 7 7 7 7 7 7 7 7 7 7 7 2 7 7 7 2...
- Page 8 PARTS PRODUCT ASSEMBLY Put the Handrail Cover (part 4). Screw the Stretch Knob (part 8) into the left tube. Screw the Fix Knob (part 9) to fix the tube with base.
- Page 9 PARTS PRODUCT ASSEMBLY First, unscrew the preset bolts at the back of the console Adjust the angle of control panel. Use Lock Knob (part 10) & Plastic Knob (part 3) to fix the control panel. Put the safety key and finish the assembly.
-
Page 10: Folding Up And Setting Down
FOLDING UP AND SETTING DOWN PARTS FOLD: Ensure the Power Switch is in the 'OFF' position and the power cord is unplugged from the electrical outlet. NOTE: Secure the folding with Stretch Knob. Fold up the treadmill. Loosen out the Fix Knob. After the treadmill is folded up, tilt the treadmill and you can move it. - Page 11 PARTS CONSOLE INSTRUCTON After the power button is turned on, the machine will enter standby status. When the machine is in standby status, press ON/OFF button. The machine will count down from 3 to I and start. The default speed is 0.5 mph. When the machine is in standby status, press ON/OFF button.
- Page 12 TOTAL 3 PROGRAMS AS BELOW Press the " PROG " button to select an interval setting. Programs are displayed as P1-P3. Select the desired program, and the console will display a countdown starting time(The time is adjustable). Press the " SPEED +/-" buttons if you wish to increase or decrease the speed after the program begins.
- Page 13 PARTS USAGE OF SILICONE OIL Foryourconvenience,youcanscanthisQRcodetoseethevideofor lubricatingtherunningbeltonYouTube,orinputthislinktowatch. https://youtu.be/MksJIoi8Obo PARTS RUNNING BELT ADJUSTMENT After installation video tutorial RUNNING BELT DEVIATE TO LEFT RUNNING BELT DEVIATE TO RIGHT RUNNING BELT LOGJAM...
- Page 14 RUNNING BELT DEVIATE TO LEFT Foryourconvenience,youcanscanthisQRcodetoseethevideoon YouTube,orinputthislinktowatch. https://youtu.be/uoXqZXk1Bx8 RUNNING BELT DEVIATE TO RIGHT Foryourconvenience,youcanscanthisQRcodetoseethevideo onYouTube,orinputthislinktowatch. https://youtu.be/LGKKCk-yivM RUNNING BELT LOGJAM Foryourconvenience,youcanscanthisQRcodetosee thevideoonYouTube,orinputthislinktowatch. STEP1:https://youtu.be/Xqri9ug5J7c STEP2:https://youtu.be/nyZ75WFTZZw （STEP1） （STEP2） PARTS DAILY MAINTAINANCE 1. Please disconnect power before checking the machine or cleaning. 2.
- Page 15 PARTS EXERCISE GUIDE Before beginning any exercise program, consult your physician. PLEASE NOTE: This is important especially if you are over the age of 45 or individuals with pre-existing health problem. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises.
- Page 16 HEART RATE MAXIMUM COOL DOWN THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE. REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES The most important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn.
-
Page 17: Troubleshooting
PARTS TROUBLE SHOOTING PROBLEM CAUSE（S） SOLUTION（S） Poorcontactorthe Couldnotpoweron powersupplymalfunctions Checkifallofthewiresandpartsarewellconnected. Therunningbelt Theuser'sweightisovertheweightcapacityofthemachine. Overload doesn'tmove. Note: It is recommended to adjust the running belt to the right position before the first time of use. - Page 18 PARTS TROUBLE SHOOTING Notputsafetykeyon Putthesafetykeyon theyellowareaofpanel Troublewiththecontrol Trytochangethecontrolboard.lfnotwork, boardormotor trytochangethemotor Troublewiththeconnected Trytochangetheconnectedline.Ifnotwork, lineorconsole trytochangetheconsole Overcurrentprotection Restart Troublewithmotor Changethemotor Troublewithconnectedline Changetheconnectedline Overloadprotection Restart Overloadprotection Restart Overvoltageprotection Restart Low-voltageprotection Restart If the display shows the error code please stop using this machine. WARNING: E8, E10, E11 two times,...
-
Page 19: Warranty
February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, FYC will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! If you have any issues with your orders, logistics, items, etc, please contact us bythe following way.
