Summary of Contents for FYC JK88

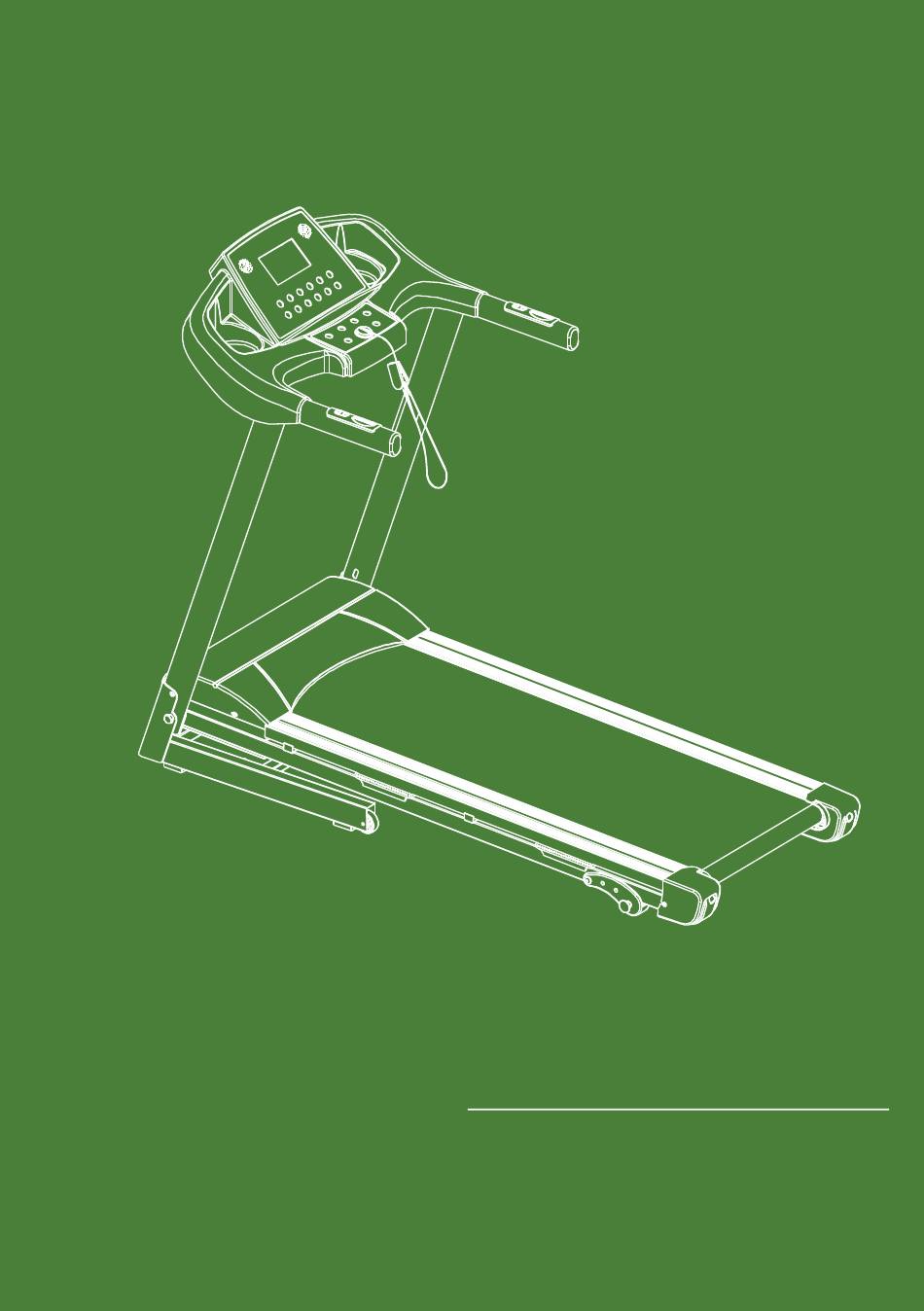

- Page 1 Electric Folding Treadmill Thank you very much for purchasing our product. Please read this manual carefully before useing it and keep the manual at the proper place .
- Page 2 As shoppers, we're always trying to find the perfect balance between quality & value. At here, we believe we've achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality &...
-
Page 3: Safety Notice
CAUTION To avoid injury please read this manual carefully before operating this machine For safety purpose, do not stand on running belt while start. Ÿ Please stop immediately if you experience any kind pain, including but not limited to Ÿ chest pains,nausea, dizziness, or cramp. -
Page 4: Caution During Use
CAUTION DURING USE Keep both the machine and power cord away from heated surfaces. If you do not feel well before using, please consult your doctor or coach. Ÿ Please unplug the equipment when not in use. Ÿ Please unplug the treadmill before cleaning, moving or change parts for the treadmill. Ÿ... -
Page 5: Tools Required
TOOLS REQUIRED ALLEN WRENCH SILICONE OIL SAPNNER (PROVIDED) (PROVIDED) (PROVIDED) HARDWARE Safety Key Round Washer Arc Washers 1 PCS 2 PCS 2 PCS Short Bolt Long Bolt 2 PCS 2 PCS PRODUCTS MAIN PARTS Cup Holder 1、 Console 2、 Heart Inductor 3、... - Page 6 PARTS PARTS RUNNINGDECK HEADER PARTS PRODUCT ASSEMBLY First, remove the pre-install bolts & nuts at the top of the upright tubes. Then lift the left and right poles respectively, and use the removed bolts & nuts to fix the tubes with control panel.
- Page 7 PARTS PRODUCT ASSEMBLY Lift up the whole control panel with tubes. & to fix the left side of tubes with base; Short Bolt (part 4) Round Washer (part 2) & to fix the back of tubes with base. Short Bolt (part 4) Arc Washer (part 3) Repeatedly the step to fix the right tubes.
- Page 8 PARTS PRODUCT ASSEMBLY Connect the signal cable from the console and upright tube. Then fix the panel to the upright tube with the pre-install screws on the support tube on the console. Please check if the connecting wire cable is connected well and not damaged/broken.
- Page 9 PARTS PRODUCT ASSEMBLY Put safety key and finish the assembly.
- Page 10 FOLDING UP AND SETTING DOWN PARTS FOLDING UP: NOTE: Make sure the Power Switch is in OFF position and the power cord is unplugged from the electrical outlet. Holding the rear end of deck directly by one hand and then lift the deck up until the Cylinder(A) pops down into the locked position.
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION Product name J 88 Voltage 110V Frequency 50-60Hz Speed 0.5-10MPH BLUETOOTH SETUP Bluetooth Bluetooth... - Page 12 PARTS CONSOLE INSTRUCTON WARNING: Keep young children away from the machine at all time.Contact with a moving surface may result in severe friction burns. To reduce risk of injury, start treadmill whilst standing on foot rails. SPEED Prog. Reset Mode START STOP 1.
- Page 13 8. "U program": Continue pressing program key to choose you-set programs from U01-U03. You can set different time and speed to run for U01, U02 and U03. For example, you choose U01 program, then press MODE key into setting speed. (There are 10 types of speed and the default speed of every type is 0.5 MPH).
- Page 14 TOTAL 12 PROGRAMS AS BELOW The speed and time of the pre-set programs are fixed and cannot be changed. The default time for the pre-set programs is 30 minutes. 0.5-10MPH/H...
- Page 15 PARTS USAGE OF SILICONE OIL Foryourconvenience,youcanscanthisQRcodetoseethevideofor lubricatingtherunningbeltonYouTube,orinputthislinktowatch. https://youtu.be/MksJIoi8Obo PARTS RUNNING BELT ADJUSTMENT After installation video tutorial RUNNING BELT DEVIATE TO LEFT RUNNING BELT DEVIATE TO RIGHT RUNNING BELT LOGJAM...
- Page 16 RUNNING BELT DEVIATE TO LEFT Foryourconvenience,youcanscanthisQRcodetoseethevideoon YouTube,orinputthislinktowatch. https://youtu.be/uoXqZXk1Bx8 RUNNING BELT DEVIATE TO RIGHT Foryourconvenience,youcanscanthisQRcodetoseethevideo onYouTube,orinputthislinktowatch. https://youtu.be/LGKKCk-yivM RUNNING BELT LOGJAM Foryourconvenience,youcanscanthisQRcodetosee thevideoonYouTube,orinputthislinktowatch. STEP1:https://youtu.be/Xqri9ug5J7c STEP2:https://youtu.be/nyZ75WFTZZw （STEP1） （STEP2） PARTS DAILY MAINTAINANCE 1. Please disconnect power before checking the machine or cleaning. 2.
- Page 17 PARTS EXERCISE GUIDE Before beginning any exercise program, consult your physician. PLEASE NOTE: This is important especially if you are over the age of 45 or individuals with pre-existing health problem. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises.
- Page 18 HEART RATE MAXIMUM COOL DOWN THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE. REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES The most important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn.
- Page 19 PARTS TROUBLE SHOOTING Nosafetykeyonthepanel Putthesafetykeyonthepanel. Connectingwirecableloose/damage Removethemotorcoverandch eckalltheconnectingwirecable. fromthecontrolboard Nosafetykeyonthepanel Putthesafetykeyonthepanel. ------ Removethemotorcoverandchec Connectingwirecableloose/damage kalltheconnectingwirecable. fromthecontrolboard Pleaselubricatetherunningbelt andcheckifthemotorworkswell. OverloadProtection MotororControlBoarddamaged, pleasereplaceit. Checkwhetherthemotorwireis damagedorbroken. MOSProtection Replacethecontrolboard. Removethemotorcoverandcheck Connectingwirecableloose/damage alltheconnectingwirecable. fromthecontrolboard Electricmotordamage/broken Replacethemotor. Connectingwirecableloose/damage Removethemotorcoverandcheck alltheconnectingwirecable. fromthecontrolboard If you are not sure about how to do that, please contact our customer service and we will provide the best solution for you.
-
Page 21: Warranty
Dear Sir/Madam: One year warranty Product Inquiry Product Assembly Orders FAQ Returns & Refunds WARRANTY ★★★★★ Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
