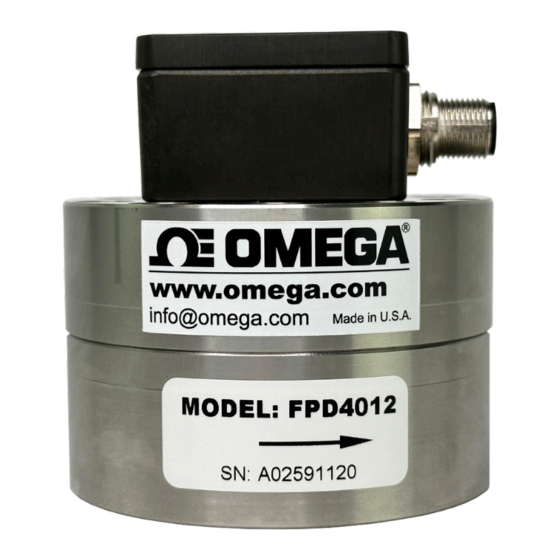

- Page 1 User’s Guide User’s G Shop online at omega.com e-mail: info@omega.com Shop onl For latest product manuals: https://www.omega.com/ omeg en-us/pdf-manuals e-mail: info@om For latest produc omega.com/en-us/pd XXXX FPD-4000 SERIES Xxxxx Xxxxx Positive Displacement Flow Meters...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
Table of Contents Safety Definitions and Information ..............4 Unpacking ......................4 Quick Start ......................4 Install Pickup Sensor ..................4 Flush Piping ....................... 4 Filtration ......................4 Location ......................4 Orientation ......................5 Flow Direction ....................5 Description and Principle of Operation ............6 Positive Displacement Flow Meter .............. -
Page 4: Safety Definitions And Information
Safety Definitions and Information Do not attempt to install or use your AW Gear Meters product until you have read the safety instructions in this section. Save this manual and keep it in an easily accessible place. Unpacking Separate the flow meter from packaging materials and check for any visual signs of damage. -
Page 5: Orientation
Figure 1: Typical flow meter installation with bypass Orientation Positive displacement gear flow meters can be installed either a horizontal or vertical (flow up) orientation. 2-3 psi of backpressure is required to assure the meter is always full of fluid. No straight run pipe is required upstream or downstream of the meter. -
Page 6: Description And Principle Of Operation
The fluids you are metering should be compatible with these materials. All-in-One Pickup Sensor The FPD-4000 Series comes with an all-in-one sensor that easily mounts on the flow meter and has 3 different output types available. We have equipped the sensor with a Bluetooth feature, which allows users to use a mobile app to setup the sensor and view real time outputs with their smart devices. -
Page 7: Installation
Installation Preferred Flow Direction The preferred flow direction is marked with an arrow on the meter showing the flow direction in which the flow meter was calibrated (see figure 2). However, the flow meters have bi-directional flow capabilities and are often used for bi-directional flow applications. -
Page 8: Installing A Bypass
Installing a Bypass If possible, install a bypass around the flow meter, and flush existing piping with the appropriate liquid before first use. See Figure 1. Pickup Sensor Installation Before attaching the sensor to the flow meter, check for any potential clearance issues. -
Page 9: Operation
Operation CAUTION: Before installing, operating or attempting maintenance on a flow meter, read the appropriate Maintenance Guide. As with any precision- engineered device, always operate and maintain the equipment in accordance with the manufacturer’s instructions. Overview Flow meters are designed to measure the flow of liquids, which assist in cooling and lubrication. -
Page 10: End Of Shift And Overnight Preparations
NOTE: During line shutdowns such as overnight and over weekends, flush and leave meters filled with proper cleaning fluid under pressure to allow any residue that may have built up to soak and dissolve. End of Shift and Overnight Preparations At the end of a shift or overnight, leave cleaning fluid in the flow meter under pressure, to soak. -
Page 11: Maintenance
Maintenance Follow these general guidelines for operating and maintaining your positive displacement flow meter. Use the Maintenance Guides Always review the Maintenance Guides provided with the flow meter (download additional copies at www.awgearmeters.com ) prior to attempting any maintenance work. The majority of down time and repairs is the result of breakages due to improper maintenance actions, lack of training or rough handling. -
Page 12: Storage
Storage When the flow meter is idle or stored for any extended period, perform the following: 1. Clean the internals thoroughly with the appropriate fluid 2. Lubricate with a light oil or other non-corrosive fluid 3. Cap or plug the ports to prevent drying Flow Meter Do’s and Don’ts DO: Leave flushing fluid in the lines overnight or during extended off-times. -
Page 13: Calibrations
DON’T: Allow materials to dry inside the flow meter. When a flow meter is removed from the line during maintenance, clean the internals immediately, lubricate the gears, and cap the fluid ports. DON’T: Over tighten the pick-up sensor beyond hand tight. When installing the pickup sensor, turn it in lightly to a hand-tight torque. -
Page 14: If It Is Necessary To Re-Calculate A New K-Factor
of difference between the average beaker sample and the average displayed total. If the error is not rectified, clean the flow meter thoroughly and repeat the procedure. Do not use water for this test. For most accuracy results, calibrate using fluid to be measured with flowmeter. If it is necessary to re-calculate a new k-factor You will first need a data-collecting instrument to count pulses produced by the flow meter. -
Page 15: All-In-One Sensor
All-In-One Sensor Technical Specifications Materials of Construction • Housing: Anodized Aluminum • Pickup: 303 Stainless Steel body with Zytel cap • Seal: Chloroprene Rubber (CR) Dimensional Drawing Figure 4: Flow sensor styles: Flush mount (left) is standard; M14 thread-in style is for high temperature applications... -
Page 16: Industry Standard M12-A Connectors
Industry Standard M12-A Connectors Figure 5: Cable Pin-outs Signal Outputs Frequency Each model of sensor comes equipped with a frequency output. Single pulse versions need to be specified as Sinking or Sourcing when ordered. For all others, frequency out can be set to 3 different output types; Push-Pull, Sinking, and Sourcing. -
Page 17: Input Source
Input Source For versions with dual pick-ups, the sensor offers 5 different choices on the frequency output lines; Signal 1, Signal 2, Signal 1+2, Direction, and Limits. Signal 1 – Outputs frequency from pick-up 1 (leads signal 2 by 90° phase shift) Signal 2 –... -
Page 18: Bluetooth Application
Bluetooth app for Android devices (Android 10 or newer operating systems) is available that allows scaling of the analog output wirelessly. The application can be found on the OMEGA website or on the Google Play store. *Allow device location for the... -
Page 19: System Settings
Output Settings: Where outputs can be forced to certain values or output type can be selected (Voltage type only) Output Calibration: Calibrate analog outputs (consult factory) Linearizer Table: Allows user to select custom K-factors for different points in the flow range Diagnostics: Shows raw input frequency About Bluetooth Device: Displays device type, Bluetooth name, firmware version, and serial number... -
Page 20: Output Settings
Max Flow Rate: The flow rate at which the analog output should be at its max. Max Flow Units: Selects what unit to scale flow in. *Flow units will affect Max Flow Rate. Verify both after changing flow units. Max Flow Time Base: Can be set to Sec, Min, Hours, and Days. *Time base will affect the Max Flow Rate. - Page 21 Output Mode – User has the option to select the output type of the signal. The 3 options include: Push-Pull, Sinking (NPN), and sourcing (PNP). See Page 17 for further descriptions. Output Calibration WARNING: Modifying these outputs could result in inaccurate analog signals. This menu is provided to adjust the sensor analog output to correspond correctly with the analog output of the input device.
- Page 22 Limits The limit screen is used to set the parameters that trigger the outputs. To use this function, set the Input Source on the Output Settings menu to Limit. The limit has 4 types of triggers: Rate, Total, Grand Total, and Cycle Output. Rate –...
- Page 23 Turn On Linearizer: Press the slider to turn the linearizer On and Off. The Slider will turn pink to indicate it is On. Press the Set button for selection to take place. Changing Values: To change values in the table, press on the desired data point that needs changing.
- Page 24 Sensor Modbus Registers RS485 Settings • 1 Start Bit • 8 data Bit • No Parity Bit • 1 Stop Bit • 9600 Baud Rate Example of Use Below is a screenshot of the Modbus registers in Modbus Poll. 32-bit float registers are being read in Big-Endian.
- Page 25 Name Register Start Register Value type Value Units/ Address Count Description Holding Registers (read-write register addresses, read function byte 0x03, write function byte 0x06 for single or 0x10 for multiple registers) K-Factor 3000 32 Bit Float Max Flowrate 3002 32 Bit Float Flow Rate 4000 0 - Seconds...
