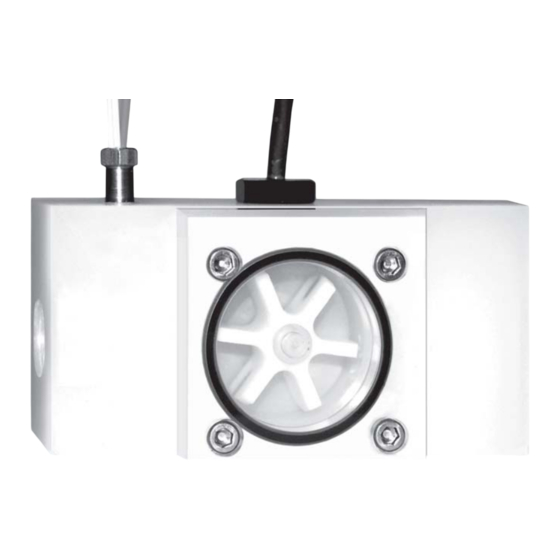

- Page 1 User’ s Guide Shop online at www.omega.com e-mail: info@omega.com FPB1400 Paddle Wheel Meter This datasheet has been downloaded from http://www.digchip.com at this page...
- Page 2 Toll Free in United Kingdom: 0800-488-48 FAX: +44 (0)161 777 6622 e-mail: sales@omega.co.uk It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives.
- Page 3 TABLE OF CONTENTS 1. UNPACKING THE PADDLE WHEEL METER........1.1 Inspect Package for External Damage..........1.2 Unpack the Paddle Wheel Meter............1.3 Returning Merchandise for Repair............. 2. FPB1400 PADDLE WHEEL METERS........2.1 Principles of Operation..............3. SPECIFICATIONS..............4. PARTS................5. INSTALLATION..............
- Page 4 The selection of materials of construction, is the responsibility of the customer. The company accepts no liability.
- Page 5 FPB1400 PADDLE WHEEL METERS 2.1 Principles of Operation FPB1400 liquid flow meters consist of a meter body that is installed in-line in a conduit system. Inside, between the inlet and the outlet connections is a rotary wheel with per- manent magnets embedded at 180 degrees in paddles.
- Page 6 NPN open collector (load 30 mA max). DIMENSIONS 56H x 108L x 53D mm (2.2 x 4.25 x 2.2"). CABLE Flow signal 1.8 m (6') or optional 3.7m (12'). FLOW RATE FOR FPB1400 Flow Rate H Inlet/Outlet Max Pressure Drop METER...
- Page 7 PARTS PARTS LIST PARTS FPB1400 MATERIALS FPB1400 MATERIALS LOWER BLOCK POLYPROPYLENE PVDF JEWEL BEARING (2 required) PVDF SAPPHIRE PVDF & NICKEL PVDF & PADDLE WHEEL TUNGSTEN CARBIDE ZIRCONIA CERAMIC ACRYLIC PVDF SENSOR NOT WETTED PART SCREW 8-32 (4 required) STAINLESS STEEL...
- Page 8 GREEN - SENSOR NPN OPEN COLLECTOR OUTPUT “pull-up” resistor is necessary for PLC input with current sourcing. Recommended value: 2.2 K Ohm for 24 VDC input. FPB1400 meters supplied with (four wire) RTD options are connected using the stainless steel temperature sensor adapter supplied. MAINTENANCE...
- Page 9 Notes:...
- Page 10 Notes:...
- Page 11 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 12 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA… Of Course! Shop online at www.omega.com TEMPERATURE R Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies R Wire: Thermocouple, RTD & Thermistor R Calibrators & Ice Point References R Recorders, Controllers &...
