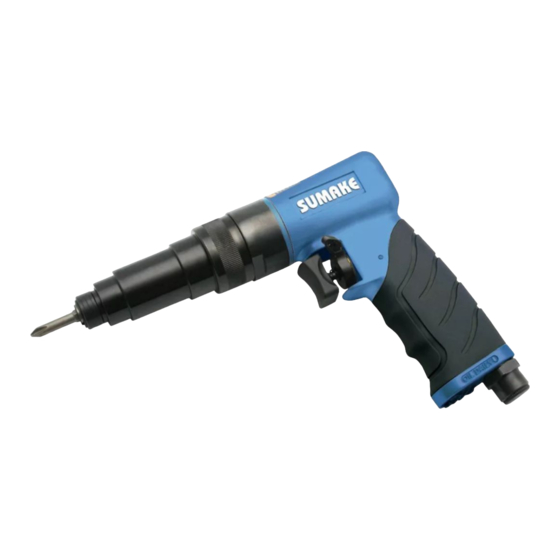

1/4" Air Adjustable Clutch Screwdriver
Specification:
Free Speed
Hex. Shank Size
Max. Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-M5020
2,000 r/min
1/4" (6 mm)
45~125 ft-lb (5~14 N-m)
12 CFM (340 L/min)
7" (178 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.6 lbs (1.2 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 92.16 dB(A)
No Load:
0.416 m/s²
Sound power level
No load: 103.16 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
Remark
EN ISO 15744
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
ST-M5020-S-1802F-D5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-M5020
Summary of Contents for Sumake ST-M5020

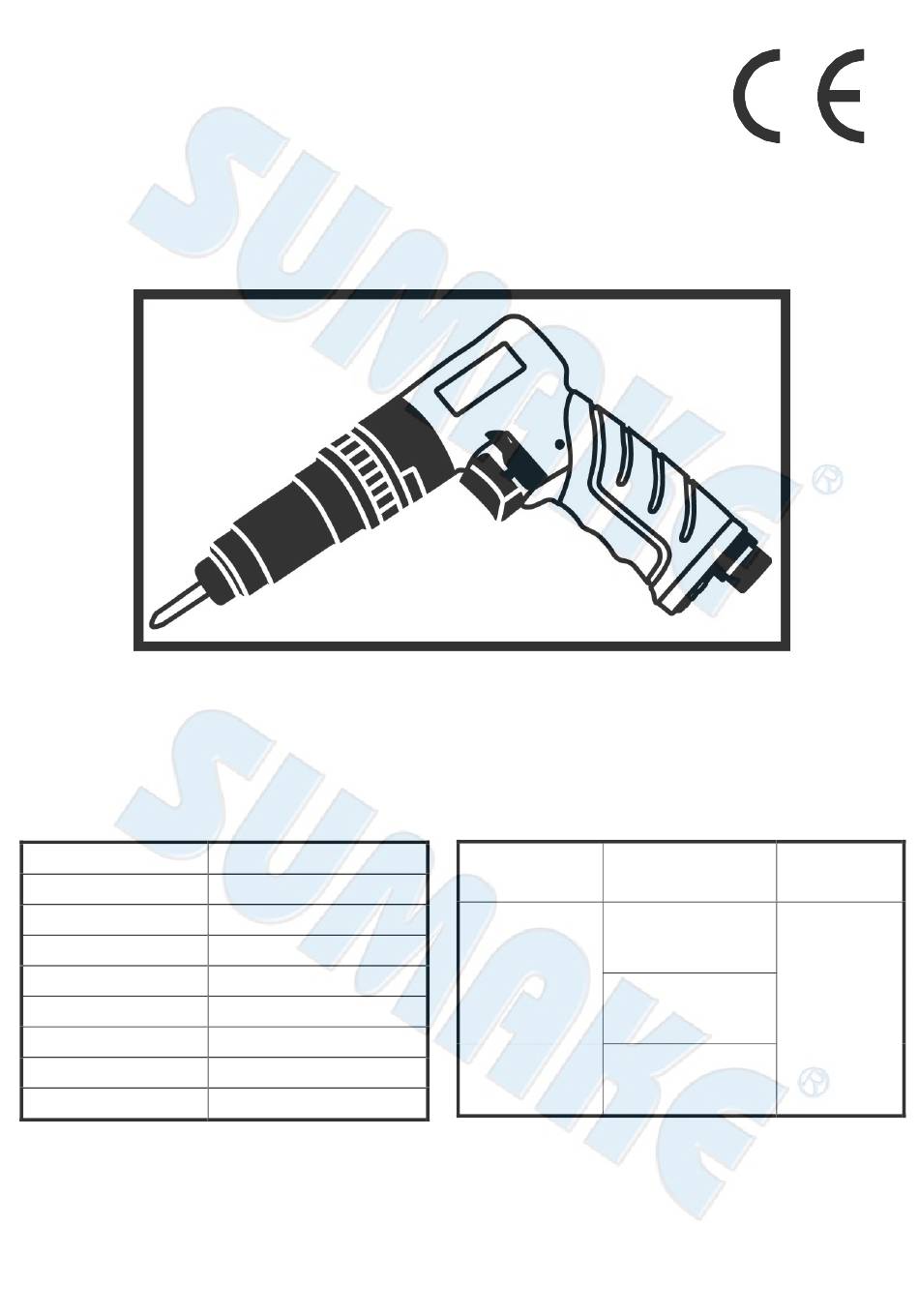

- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.6 lbs (1.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-M5020-S-1802F-D5...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1/4" AIR ADJUSTABLE CLUTCH SCREWDRIVER Model/ Serial No.：ST-M5020 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 Disassemble and repair Rear clutch is worn and tore. Disassemble and repair Torque spring is elastic fatigued. Disassemble and repair Air pressure may not enough. Check equipment. WHEN THE FREE SPEED IS TOO LOW Check air inlet set. Disassemble and repair ST-M5020-I-1406B-D5...
- Page 4 ST-M5020 1/4" AIR ADJUSTABLE CLUTCH SCREWDRIVER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty M5020-01 Retaining Ring M5020-29 Rotor Blade M5020-02 Washer M5020-30 Rotor M5020-03 Spring M5020-31 Cylinder M5020-04 Ball Retainer M5020-32 End Plate M5020-05 Clutch Housing M5020-33...
- Page 5 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 8 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
