Sumake SMNP10/O.E. Manual

Air push to start-shut off air screwdriver (environment protect)
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
SUMAKE

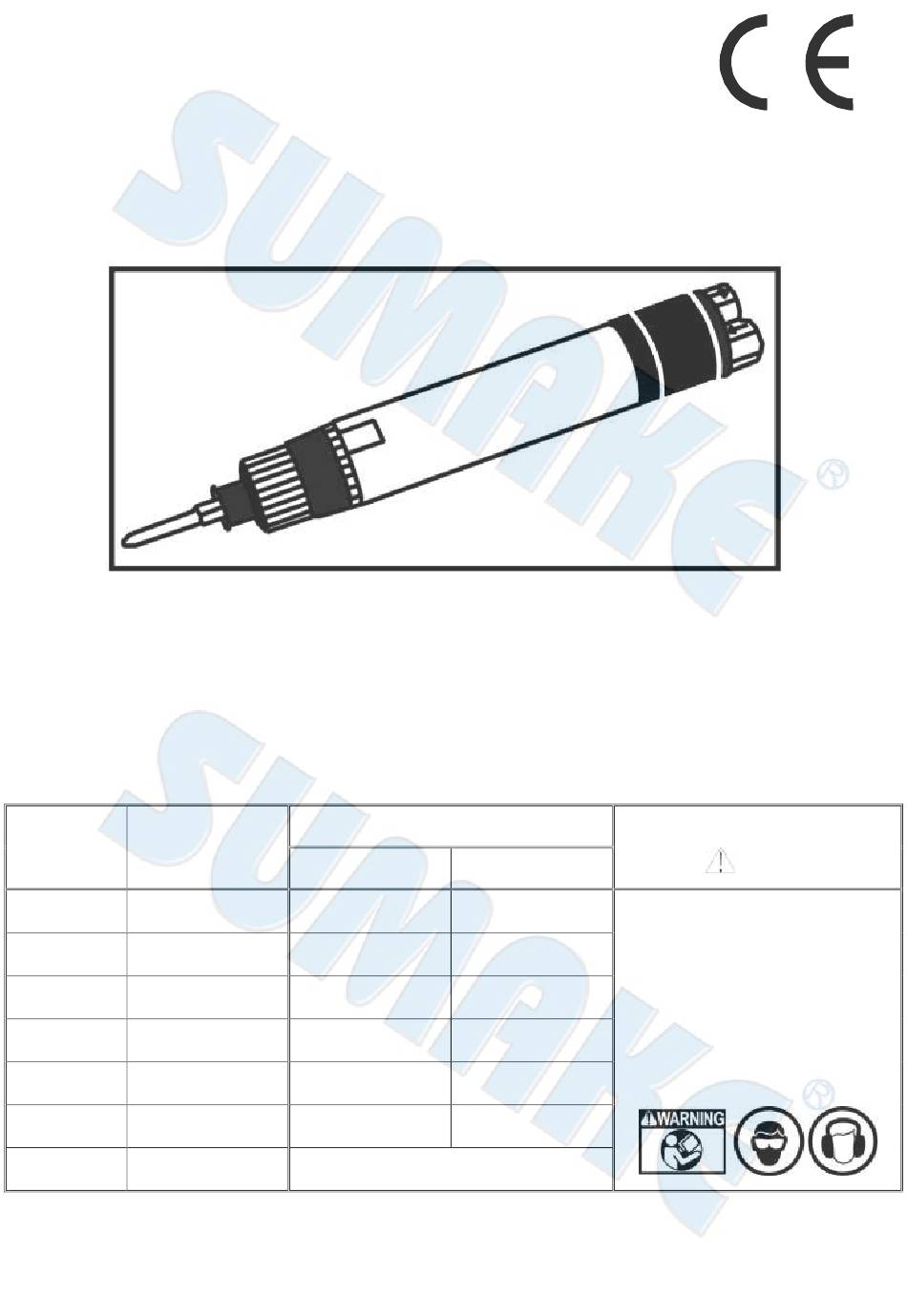

Air Push To Start-Shut Off Air Screwdriver
(Environment Protect) -Forward Type-
Test result according to
Vibration
MODEL
EN ISO 28927-2
No Load: 0.4 m/s 2
SMNP10/O.E.
No Load: 0.9 m/s 2
SMNP20/O.E.
No Load: 0.9 m/s 2
SMNP30/O.E.
No Load: 0.9 m/s 2
SMNP35/O.E.
No Load: 0.9 m/s 2
SMNP40/O.E.
No Load: 1.1 m/s 2
SMNP45/O.E.
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 68 dB(A) No Load: 79 dB(A)
No Load: 75 dB(A) No Load: 86 dB(A)
No Load: 75 dB(A) No Load: 86 dB(A)
No Load: 75 dB(A) No Load: 86 dB(A)
No Load: 75 dB(A) No Load: 86 dB(A)
No Load: 73 dB(A) No Load: 84 dB(A)
Uncertainty K= 3dB
Sound power level
1-
2-
SMNP10(20)(30)(35)(40)(45)/O.E.-S-2304D-MIF
