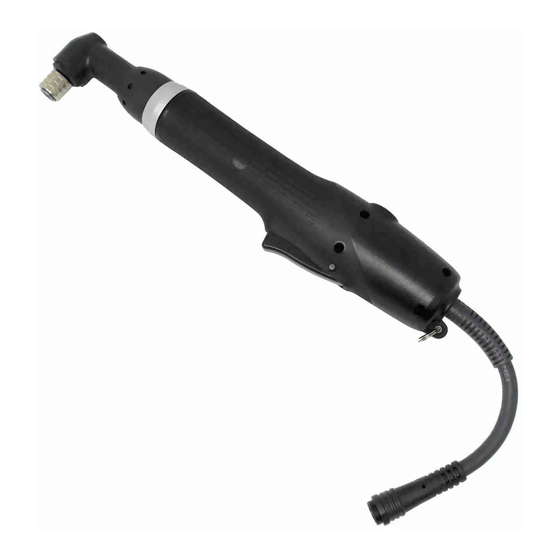

- Page 1 OPERATION AND MAINTENANCE MANUAL SMT-30A, SMT-50A, SMT-70A ITEM NO.: SMT-120A, SMT-180A, SMT-250A TRANSDUCERIZED DC ANGLE DC40V BRUSHLESS ELECTRIC SCREWDRIVER SMT-30A, SMT-50A, SMT-70A SMT-120A, SMT-180A SMT-250A SMT-30(50)(70)(120)(180)(250)A-I-2309C-K2...
-
Page 2: Specification
No. 00 ．．． Bit use in dia 1.3~1.8mm screw No. 0．．． ．Bit use in dia 1.8~2.0mm screw No. 1．．． ．Bit use in dia 2.0~2.6mm screw No. 2．． ．．Bit use in dia 3.0~4.0mm screw 2. SMT-30A with BIT 2 Pcs. SMT-50A with BIT 2 Pcs. - Page 3 ※Specification MODEL SMT-120A SMT-180A SMT-250A Input Voltage (DC) DC40V Power Consumption (N.m) 2.4-12 3.6-18 5-25 Torque (kgf.cm) 24.48-122.4 36.72-183.6 51-255 (Lbf.in) 21.24-106.21 31.86-159.32 44.26-221.28 Repeatable Torque Accuracy +/- 3sigma / AVG., 7.5% Unloaded Rotation Speed (r/min) 100-1000 60-600 40-400 Can be set and adjusted Working Time 1s ON / 3s OFF Weight (g)
- Page 4 NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. WARNING Important safety information enclosed.
-
Page 5: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 Many accidents are cause by poorly maintained power tools. Inspect extension cords periodically and replace, if damaged. f) Keep cutting tools sharp and clean, Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tools, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.
-
Page 7: Grounding Instructions
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 8 Install Removal nnect SMT screwdriver and cable Notice: The two cables are fully connected with no gaps. Notice: The cable and controller are fully connected with no gaps.
- Page 9 Function / Operating Introduction Number Product Name Description Use Hanging Hole Hanging hole is available, to hang the screwdriver Signal Light Display OK light, NG light, screw removal starts and stop signal Button Switch Switch rotation direction CW/CCW Front Lock Ring Lock stationary gearbox and housing Headgear Load/unload and fixing the screwdriver bits...
-
Page 10: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. SUMAKE is not responsible for customer modification of tools for applications on which SUMAKE was not consulted. Repairs should be made only by authorized, trained personnel. -
Page 11: Eu Declaration Of Conformity (Doc)
Equipment： ELECTRIC SCREWDRIVER Model/ Serial No.： SMT-10SI, SMT-30SI, SMT-30I, SMT-50I, SMT-70I, SMT-120I, SMT-180I, SMT-250I, SMT-30A, SMT-50A, SMT-70A, SMT-120A, SMT-180A, SMT-250A The object of the declaration described above is in conformity with the relevant union harmonization legislation: ... - Page 12 NOTE www.SUMAKE.com www.aircompressors.com.tw...
