Mocka Hamptons Assembly Instructions

Side table

Hide thumbs Also See for Hamptons:

Hamptons Side Table

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

16 x

bolt

locking

dowel

nut

HARDWARE SUPPLIED

Phillips & Flathead screwdrivers and hammer required

*We recommend using a Flathead screwdriver to tighten all

locking nuts 100% before ﬁrst use.

mocka.co.nz I mocka.com.au

4 x

2 x

long

small

screw

Table of Contents

Do you have a question about the Hamptons and is the answer not in the manual?

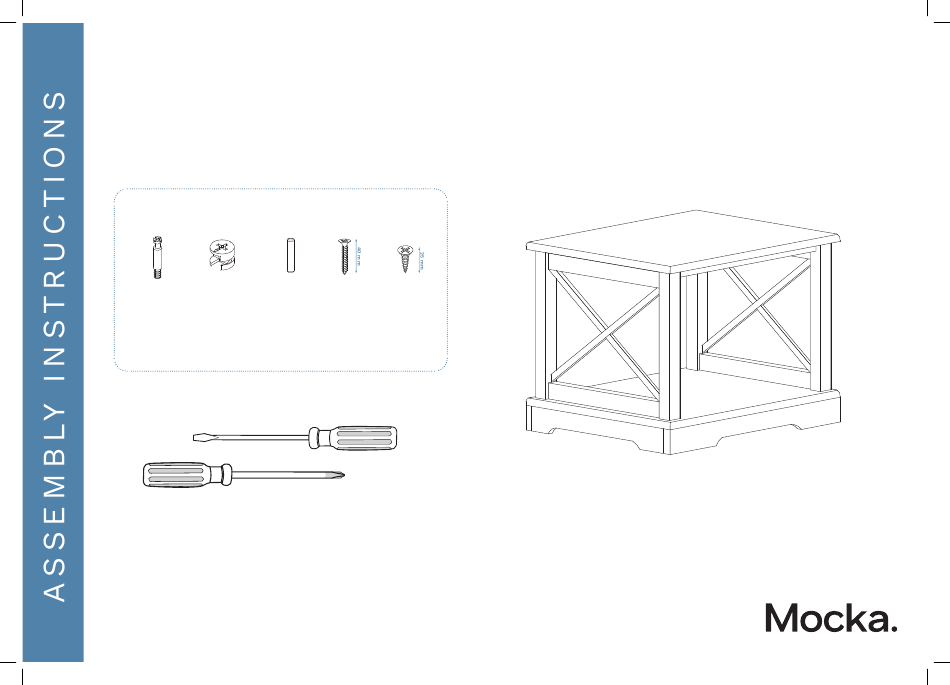

Page 1 Hamptons Side Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. 16 x 16 x 16 x bolt locking dowel long small screw screw HARDWARE SUPPLIED Phillips & Flathead screwdrivers and hammer required *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before ﬁrst use.
Page 2 Hamptons Side Table Assembly Instructions Attach 12 x bolts (A) into panels [2] and [5]. Attach 4 x dowels (C) to panels [5] and [6]. Insert 4 x bolts (A) into panel [1]. Attach 2 x screws (E) into panels [1] and [4]. Tighten Insert 4 x locking nuts (B) into panels [6].
Page 3 Hamptons Side Table Assembly Instructions Insert 4 x dowels (C) into panels [3]. Attach panel [2] to panels [3] and secure Insert 4 x dowels (C) into panels [5] and [6]. Attach panels [2], [5] and [6] and secure with 4 x long screws (D).
Page 4 Hamptons Side Table Assembly Instructions Insert 4 x dowels (C) into panels [3]. Attach panel [1] to panels [3] and secure with 4 x locking nuts (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
