Mocka Hamptons Assembly Instructions

Bench seat

Hide thumbs Also See for Hamptons:

Hamptons Bench Seat

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

70mm screw

50mm screw

screw pin

dowel

x10

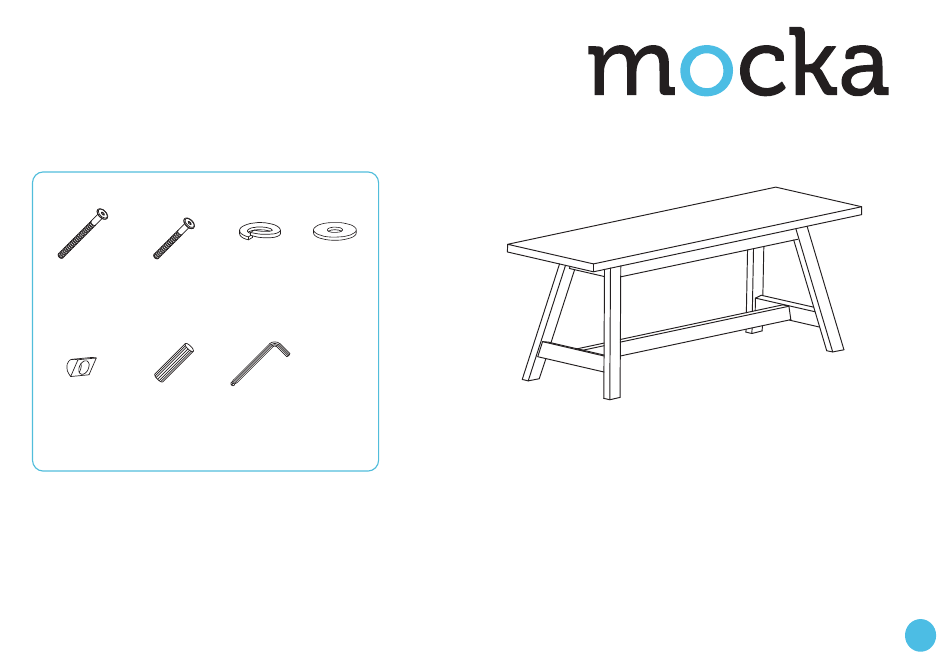

Hardware Supplied

mocka.co.nz | mocka.com.au |

spring

flat washer

washer

x10

allen key

Read the instructions carefully. Refer to the hardware and furniture parts list for

guidance. Be sure all of the pans are complete before assembling. Place all of the

wooden furniture parts on a clean and ﬂat soft surface to prevent scratches.

Refer to the steps provided as an assembling guide.

CAUTION :

1. Do not tighten the nuts or nut bolts completely until they are all in place.

2. To avoid thread damage, avoid overtightening nuts or nut bolts.

3. Hardware is to be kept out of reach of children.

Table of Contents

Do you have a question about the Hamptons and is the answer not in the manual?

Page 1 Hamptons Bench Seat Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. spring 70mm screw 50mm screw flat washer washer screw pin dowel allen key Hardware Supplied Read the instructions carefully. Refer to the hardware and furniture parts list for guidance.
Page 2 Hamptons Bench Seat Assembly Instructions Hammer 4 x dowels (F) into panel [1] as shown. Attach 1 x bench leg (2) and 1 x bench seat (1) and secure with 2 x 70mm screws (A), 2 x spring washers (C) and 2 x screw pins (E).
Page 3 Hamptons Bench Seat Assembly Instructions Attach 1 x bench leg (2) and 1 x bench seat (1) and secure with 2 x Attach 1 x central rail (3) to assembled frame and secure with 2 x 50mm screws (B), 2 x spring washers (C) and 2 x flat washers (D).
Page 4 Hamptons Bench Seat Assembly Instructions Attach 1 x bench leg (2) to assembled frame and secure with 2 x spring Attach 1 x bench leg (2) to assembled frame and secure with 3 x spring washers (C), 2 x 70mm screws (A) and 2 x screw pins (E). Tighten with washers (C), 3 x 50mm screws (B) and 3 x screw pins (E).
Page 5 Hamptons Bench Seat Assembly Instructions Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au |...
