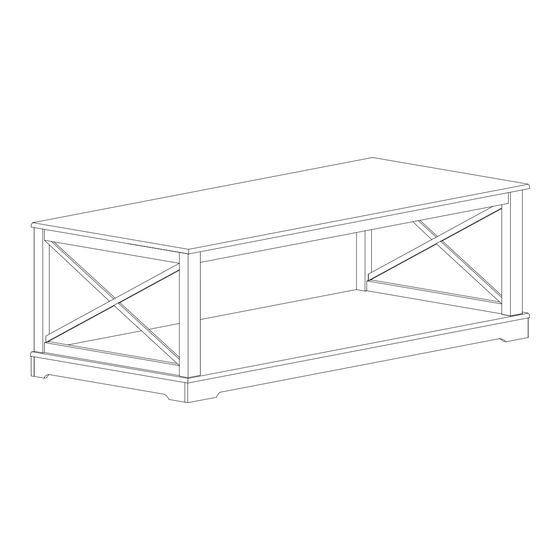

Mocka Hamptons Assembly Instructions

Coffee table

Hide thumbs Also See for Hamptons:

Hamptons

Thank you for your purchase.

Please follow the instructions below for correct assembly

bolt

locking

dowel

x 22

nut x 22

x 18

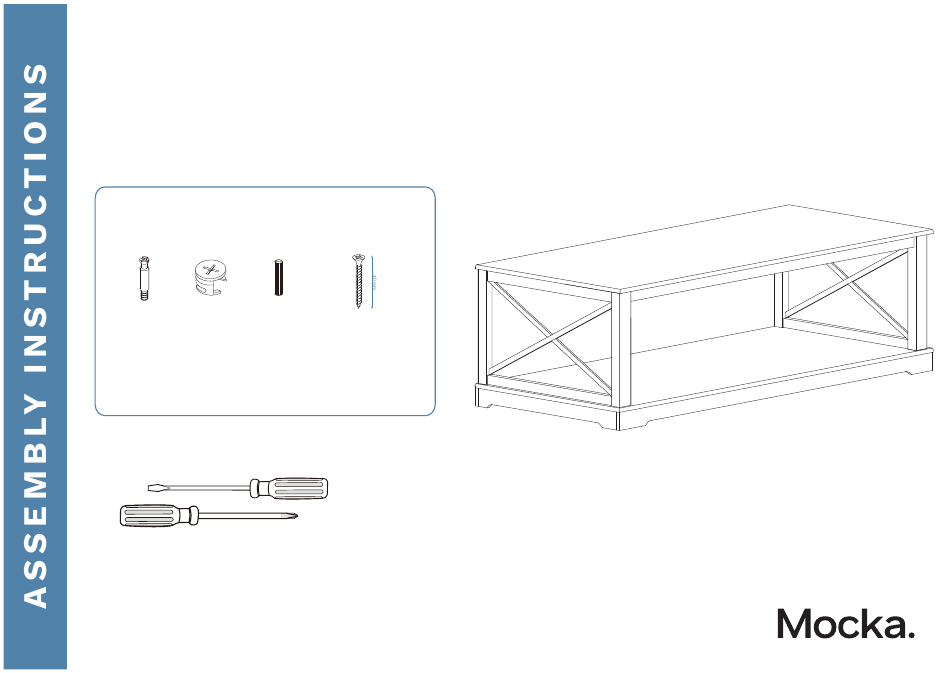

Hardware Supplied

Phillips & Flathead screwdrivers and hammer required.

*We recommend using a Flathead screwdriver to tighten

all locking nuts 100% before ﬁrst use.

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

long

screw x 12

Table of Contents

Do you have a question about the Hamptons and is the answer not in the manual?

Page 1 22 nut x 22 x 18 Hardware Supplied Phillips & Flathead screwdrivers and hammer required. *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before ﬁrst use. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
Page 2 Coffee Table Drawers (x2) Insert 4 x bolts (A) into panels [3] .Tighten with a screwdriver. Insert 14 x bolt (A) into panels [1] and [2] .Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
Page 3 Insert 4 x dowels (C) into panel [1]. Attach panels [3] to panels [1] and Tighten with a screwdriver. secure with 4 x locking nuts (B). Attach panels [4] to panel [1] and secure with 8 x long screws (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
Page 4 Attach 4 x bolts (A) into panels [6]. Attach 4 x dowels (C) to panels [5] and secure with 4 x long screws (D). and [6]. Insert 4 x locking nuts (B) into panels [6]. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
Page 5 Coffee Table Insert 6 x dowels (C) into panels [2], [5] and [6]. Attach panels [2], [5] and [6] and secure with 10 x locking nuts (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
